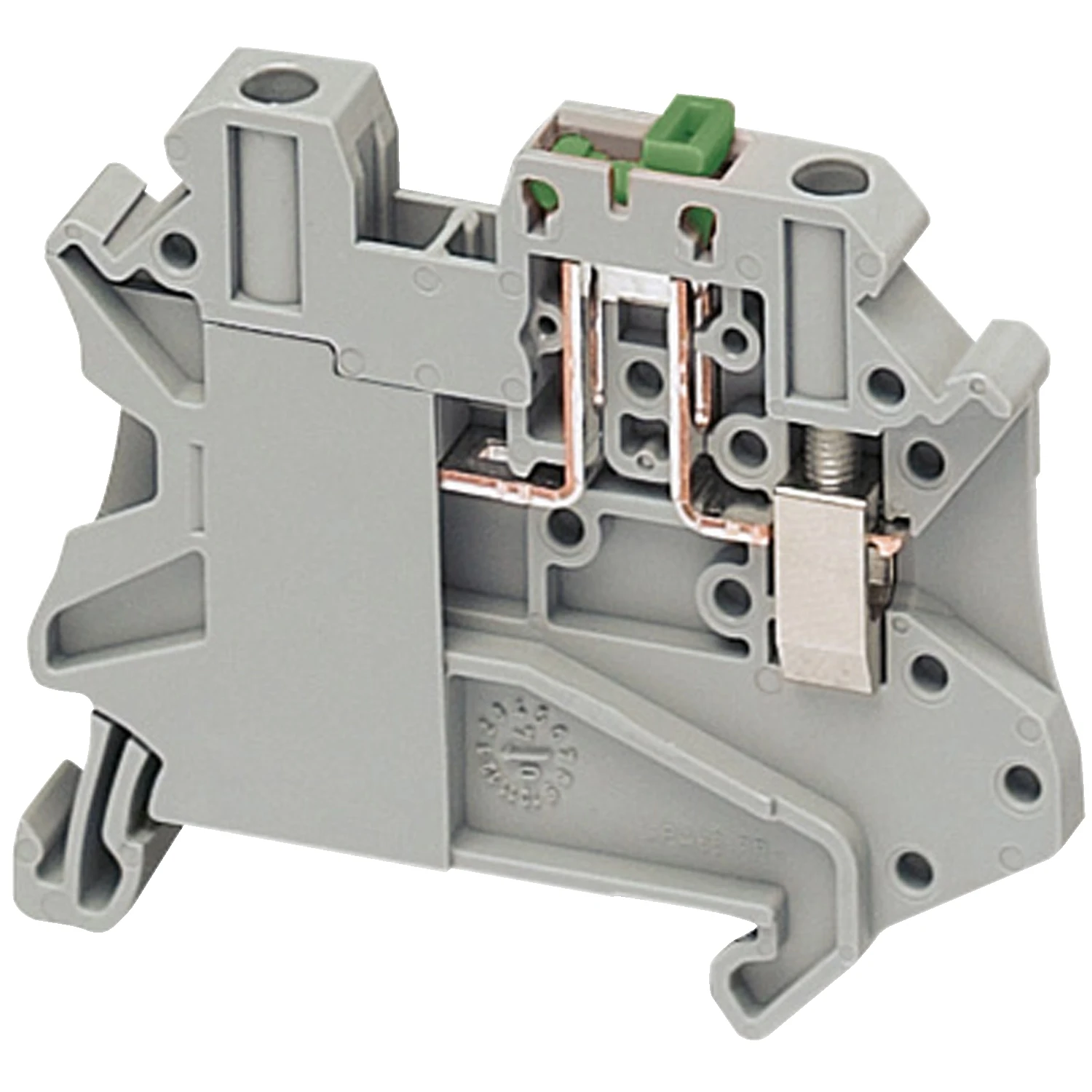

Schneider Electric Linergy blade disc. terminal block, 4mm2 20A single-level 1×1 screw, g
£3.00 Incl. VAT
Linergy blade disc. terminal block, 4mm2 20A single-level 1×1 screw, grey. range: Linergy – product name: Linergy TR – product or component type: terminal block – device short name: TRV – mounting mode: clip-on – nominal cross section: 4 mm² – length: 57.8 mm – quantity per set: set of 50. · · · It belongs to linergy passthrough terminal block with 4 mm² nominal cross section · · Mounting by clip-on and sideways connection by single-level 1×1 screw terminals · · Releasing pressure on the sides stops the flow of cable ends · · Facilitates storage by avoiding mixing cable ends of different sizes · · Identifies the cross section of cable ends it contains
Out of Stock
Description
Technical Specifications Technical Specifications (Knife) disconnect terminal block Number of clamp positions per level 1.00 Number of levels 1.00 Rated voltage 500.00 V Rated current In 20.00 A Connectable conductor cross section fine-strand with cable end sleeve 0.14 – 6.00 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.14 – 6.00 mm² Connectable conductor cross section multi-wired 0.14 – 6.00 mm² Connectable conductor cross section solid-core 0.14 – 6.00 mm² Operating temperature -40.00 – 130.00 °C Internally connected stages No Closing plate required Yes With integrated test socket No · Technical Data Sheet – Click to Download
