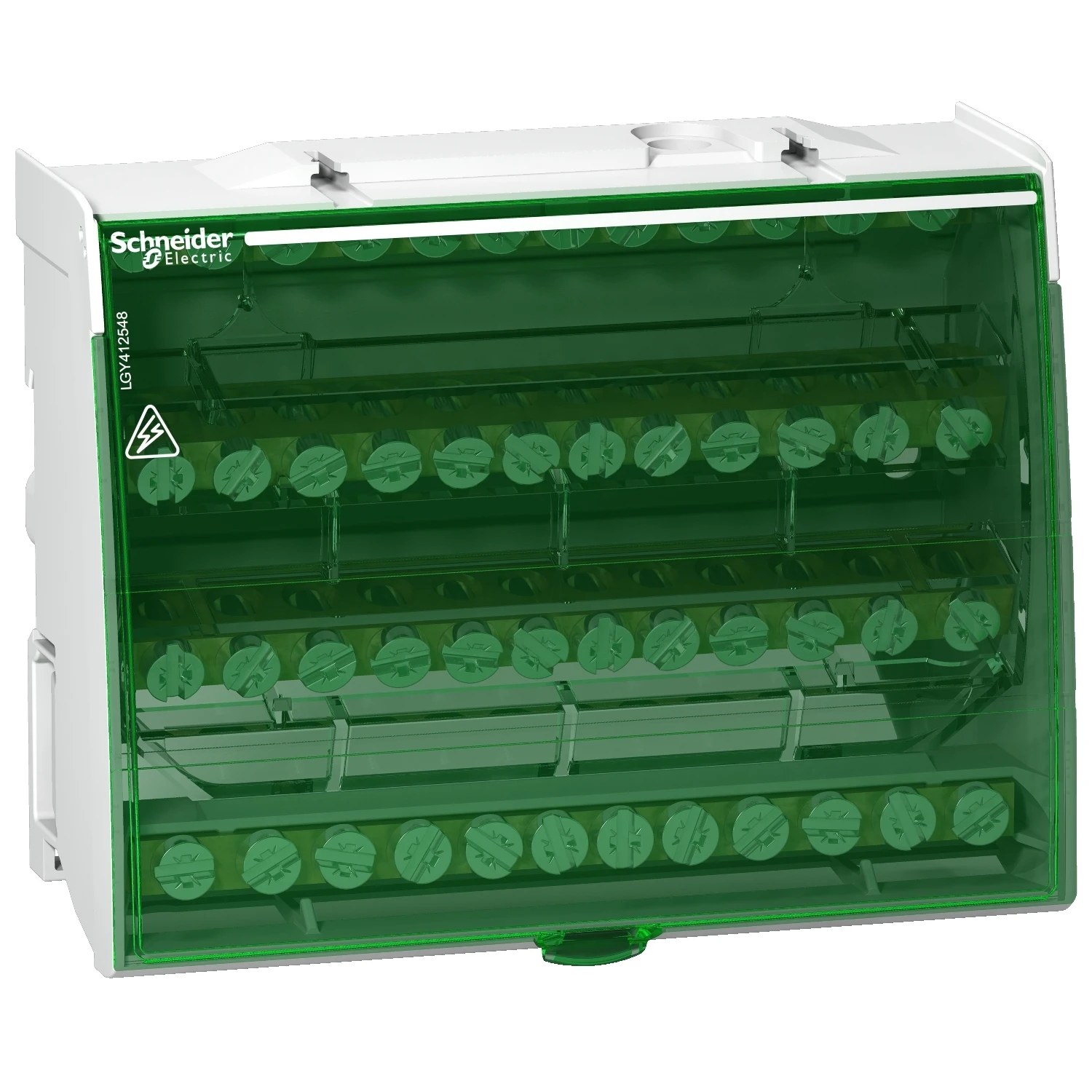

Schneider Electric Linergy DS, screw distribution block 4p, 125A, 48 holes

Screw Distribution Block 125A 4P (48 Hol · · · This Linergy DS screw distribution blocks can be installed on a standard Din rail or on a mounting plate. · · It is dedicated to 4P installations. The number of poles is 1. The total connection capacity is 48 Holes (4×12). · · The Ie rated operational current is 125A. The Rated peak withstand current Ipk/60ms is 18kÂ, Ipk/6ms is 26kÂ. · · The Icw rated short-line withstand current according to IEC/EN 60947-7-1 is 4.2kAms/1s. · · The width in 9mm pitches is 14. The terminal capacity is 1x9mm diameter, 7×0.5mm diameter, 4×6.5mm diameter.
