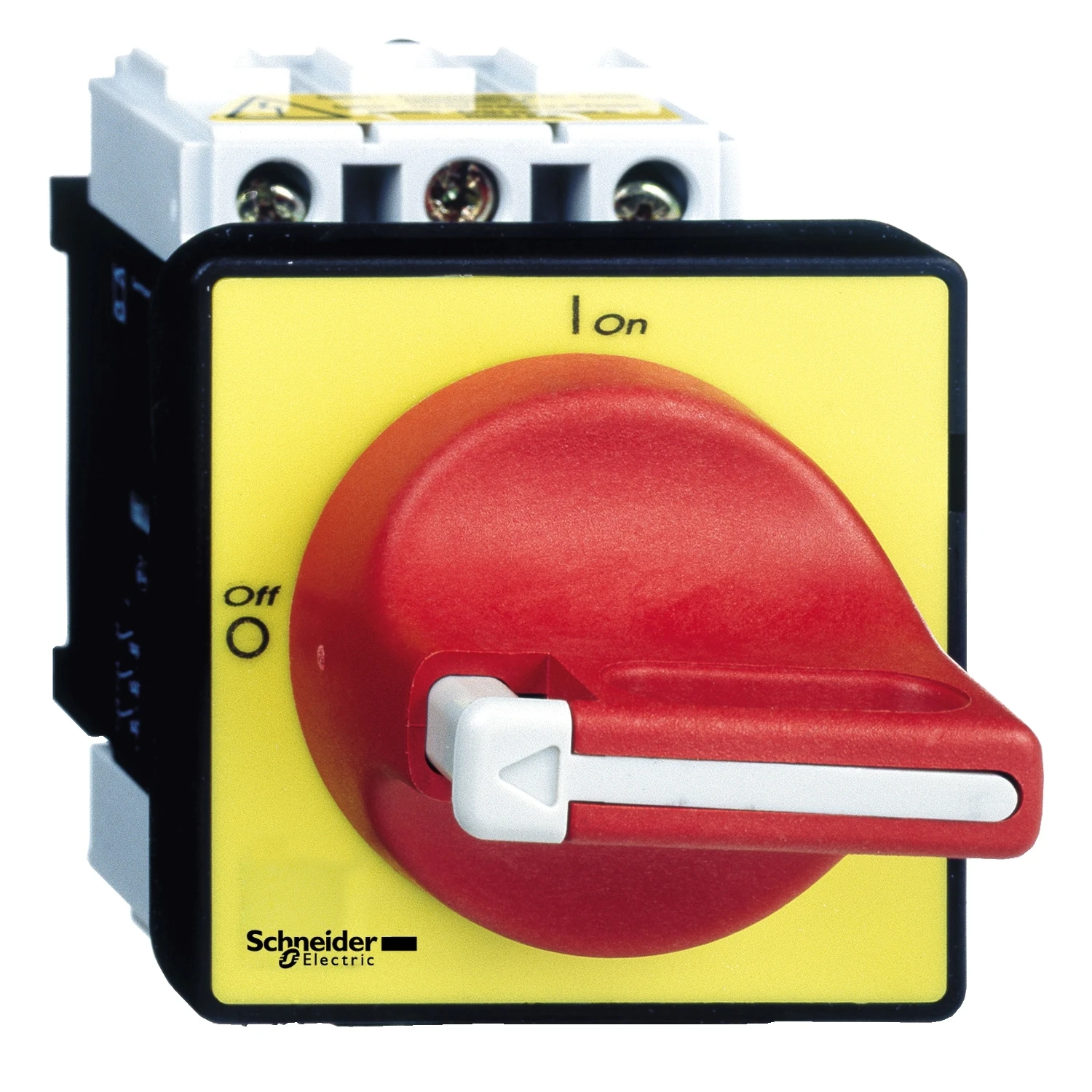

Schneider Electric Main/E-Stop Switch Vario Four Hole 32A 600V AC TP
Schneider Electric Main/E-Stop Switch Vario Four Hole 32A 600V AC TP
Schneider Electric Main/E-Stop Switch Vario Four Hole 32A 600V AC TP - Image 2

Schneider Electric Main/E-Stop Switch Vario Four Hole 32A 600V AC TP

£59.77 Incl. VAT

TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. Complete unit composed of a switch body V1, a red handle with yellow 60x60mm front plate KCF1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. · · Complete unit composed of a switch body V1, a red handle with yellow 60x60mm front plate KCF1PZ. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with 4 screws fixing on door, ensuring IP65 to the mounting. · · Voltage Rating: 600V AC · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Weight: 250g · · IP Rating: IP20, IP65 · · CE: yes

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCF1 Category: Brand: Product Code: 2500060162

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of poles 3 Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-3, 400 V 7.5 kW Conditioned rated short-circuit current Iq 10 kA Rated permanent current Iu 32 A Number of auxiliary contacts as change-over contact 0 Rated short-time withstand current lcw 0.38 kA Rated operation power at AC-23, 400 V 11 kW Number of switches 1 Switching power at 400 V – kW Rated permanent current at AC-21, 400 V 32 A Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-23, 400 V 21.8 A Rated operating voltage 0 – 690 V Version as maintenance-/service switch No Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for front mounting centre No Suitable for front mounting 4-hole Yes Suitable for intermediate mounting No Interlockable Yes Version as emergency stop installation Yes Version as safety switch No Version as main switch Yes Motor drive integrated No Suitable for distribution board installation Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226402
