Schneider Electric Main/E-Stop Switch Vario Single Hole 40A 600V AC TP
£77.04 Incl. VAT

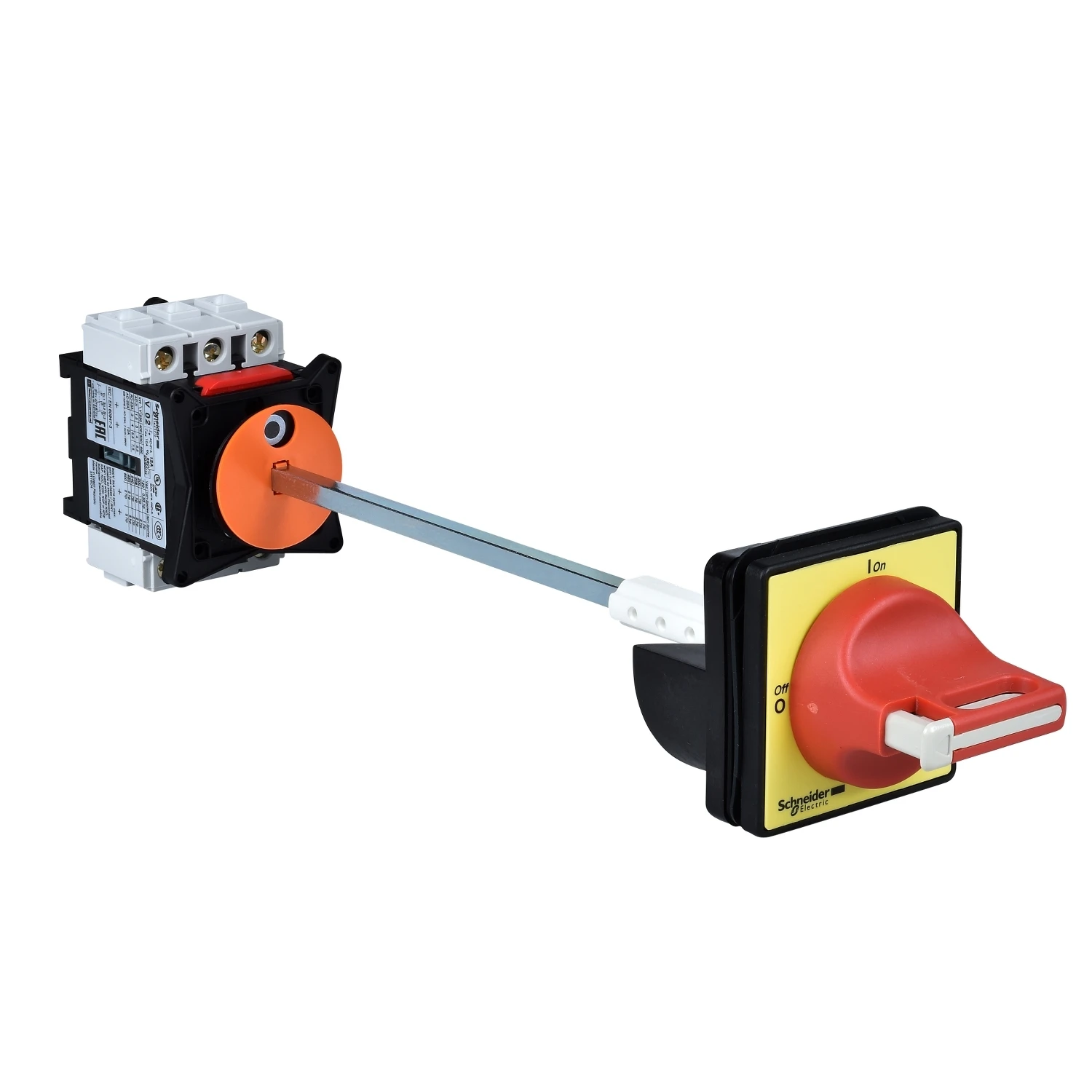

TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 40A/690V, for motor switching applications up to 15kW@400V AC-23. Complete unit composed of a switch body V2, an extension shaft VZ17, a door interlock plate KZ32, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Possible distance between back of enclosure and door 300-330mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys Vario switch disconnector for mounting at back of an enclosure, 3 poles, 40A/690V, for motor switching applications up to 15kW@400V AC-23. · · Complete unit composed of a switch body V2, an extension shaft VZ17, a door interlock plate KZ32, a red handle with yellow 60x60mm front plate KCD1PZ. · · Intended for main and emergency stop switch disconnecting usage. · · Padlockable handle, for 3 padlocks (to be ordered separately). · · Handle with central fixing on door, ensuring IP65 to the mounting. · · Voltage Rating: 600V AC · · Width: 60mm · · Weight: 392g · · IP Rating: IP20, IP65 · · CE: yes
Out of Stock
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Number of poles 3.00 Rated permanent current Iu 40.00 A Number of auxiliary contacts as change-over contact 0.00 Rated short-time withstand current lcw 0.48 kA Switching power at 400 V – kW Number of switches 1.00 Max. rated operation voltage Ue AC 690.00 V Rated permanent current at AC-21, 400 V 40.00 A Rated operation power at AC-3, 400 V 11.00 kW Conditioned rated short-circuit current Iq 10.00 kA Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Rated permanent current at AC-23, 400 V 29.00 A Rated operation power at AC-23, 400 V 15.00 kW Rated operating voltage 0.00 – 690.00 V Version as maintenance-/service switch No Version as safety switch No Version as main switch Yes Version as emergency stop installation Yes Motor drive integrated No Suitable for distribution board installation No Suitable for intermediate mounting No Suitable for front mounting 4-hole No Suitable for front mounting centre Yes Interlockable Yes Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226414
