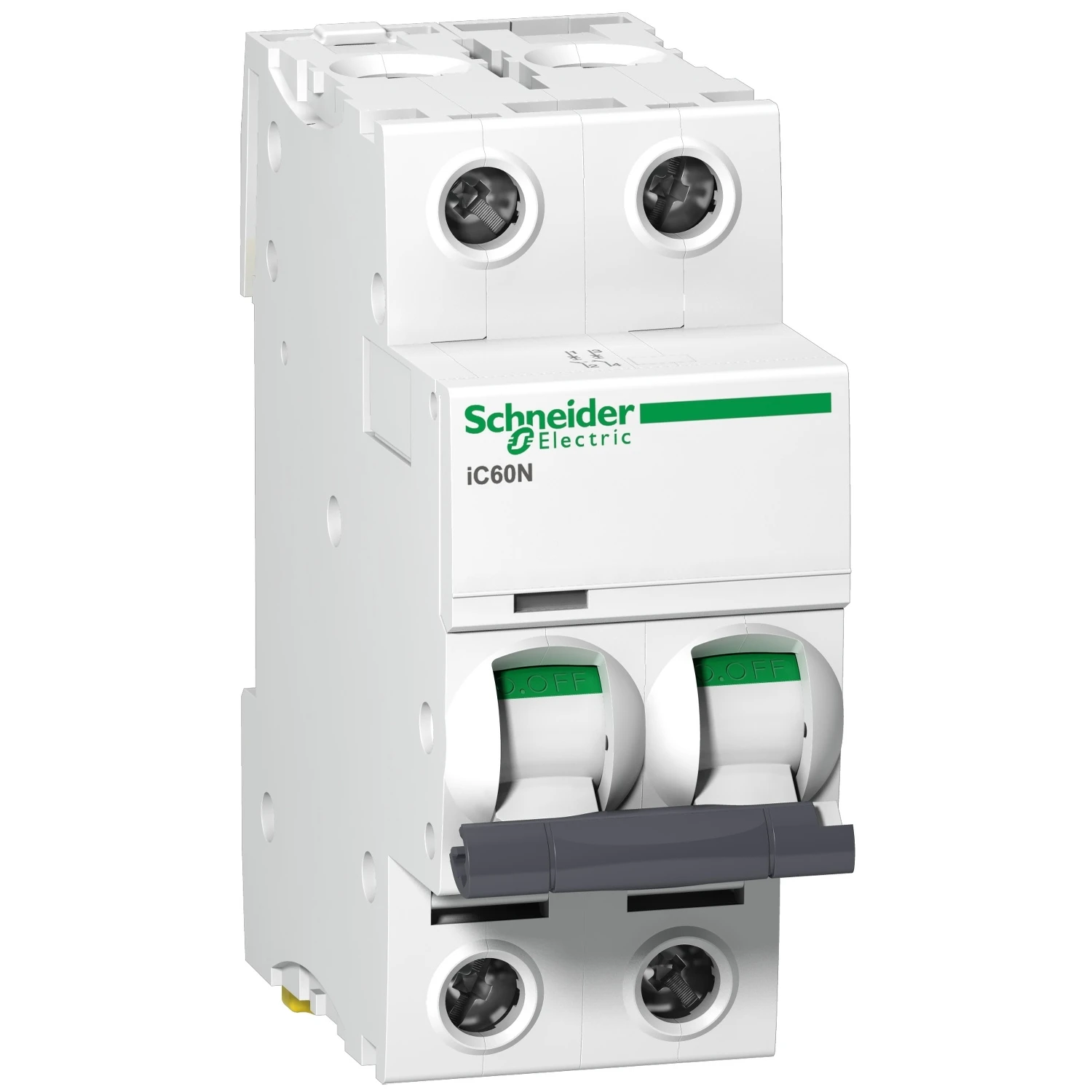

Schneider Electric MCB Double Pole D Type 6A 6kA
£89.80 Incl. VAT
ACTI9 IC60N 2P 6A D MCB · · · This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). · · It is a 2P circuit breaker with 2 protected poles, 6A rated current and D tripping curve. · · The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 415VAC conforming to EN/IEC 60898-1 standard. · · It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. · · This miniature circuit breaker protects circuits against short circuit and overload current.
Out of Stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 6.00 A Rated voltage 415.00 V Recess depth 44.50 mm Rated insulation voltage Ui 500.00 V Number of poles (total) 2.00 Current limiting class 3.00 Number of protected poles 2.00 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6.00 kA Pollution degree 3.00 Width in number of modular spacings 2.00 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Over voltage category 4.00 Rated impulse-withstand voltage (Uimp) 6.00 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20.00 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10.00 kA Connectable conductor cross section solid-core 1.00 – 25.00 mm² Frequency 50.00 – 60.00 Hz Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Ambient temperature during operating 35.00 – 70.00 °C Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
