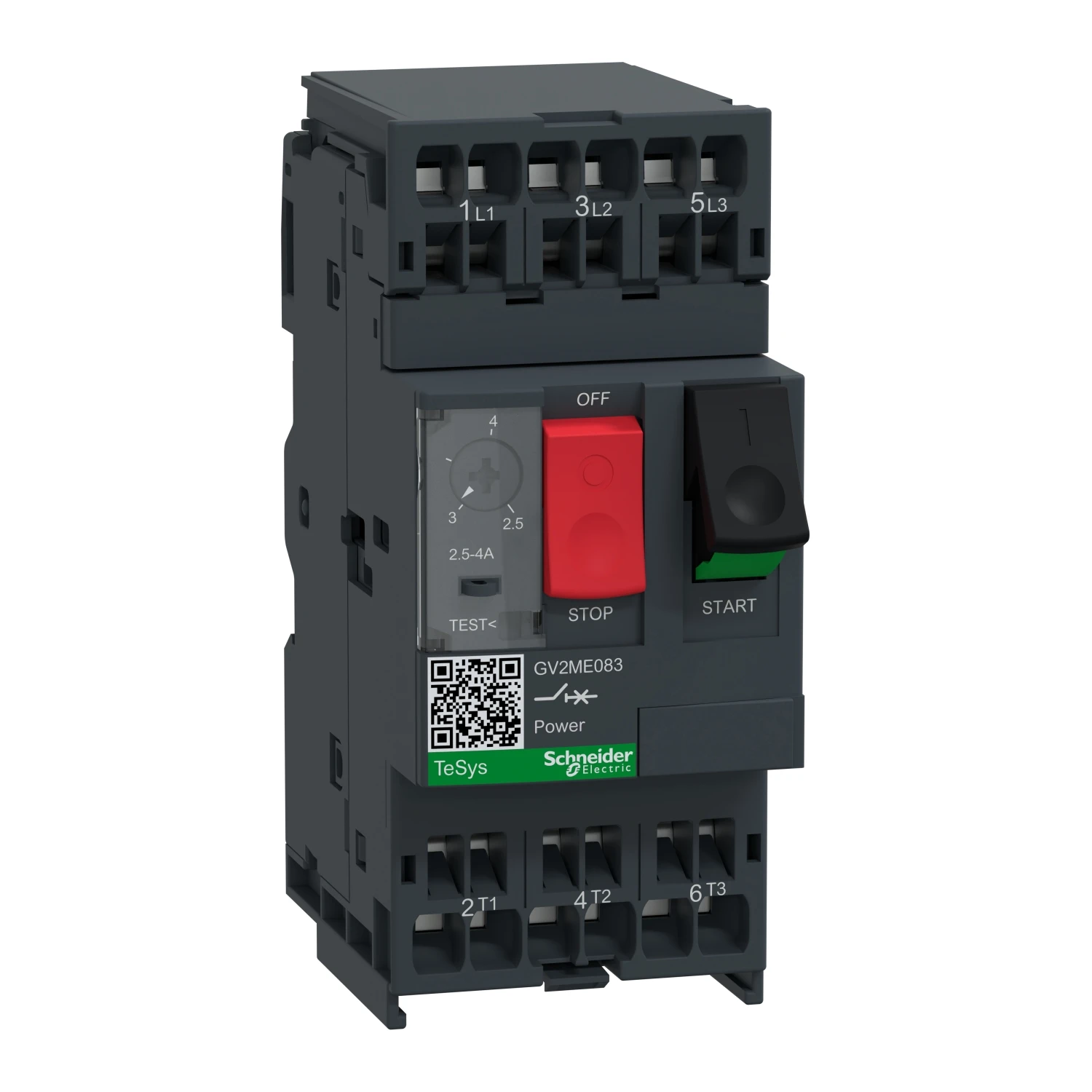

Schneider Electric MCB Motor Pushbutton Spring Terminal Thermal-Magnetic Triple Pole 2.5-4A
Schneider Electric MCB Motor Pushbutton Spring Terminal Thermal-Magnetic Triple Pole 2.5-4A
Schneider Electric MCB Motor Pushbutton Spring Terminal Thermal-Magnetic Triple Pole 2.5-4A - Image 2
Schneider Electric MCB Motor Pushbutton Spring Terminal Thermal-Magnetic Triple Pole 2.5-4A - Image 3

Schneider Electric MCB Motor Pushbutton Spring Terminal Thermal-Magnetic Triple Pole 2.5-4A

£83.46 Incl. VAT

TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 2.5-4A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. · · It provides a thermal-magnetic protection with a thermal setting range 2.5-4A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. · · Connection by spring terminals. · · Start-stop control by push-button guaranteed for 100 000 cycles AC-3. · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: GV2ME083 Categories: , , , Brand: Product Code: 2500089376

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 45 mm Height 101 mm Rated operation power at AC-3, 400 V 1.5 kW Rated permanent current Iu 4 A Rated operation power at AC-3, 230 V 0.75 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Number of poles 3 Depth 78.2 mm Overload release current setting 2.5 – 4 A Adjustment range undelayed short-circuit release 51 – 51 A Rated operating voltage 0 – 690 V With integrated auxiliary switch No With integrated under voltage release No With thermal overload protection Yes Phase failure sensitive Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188194
