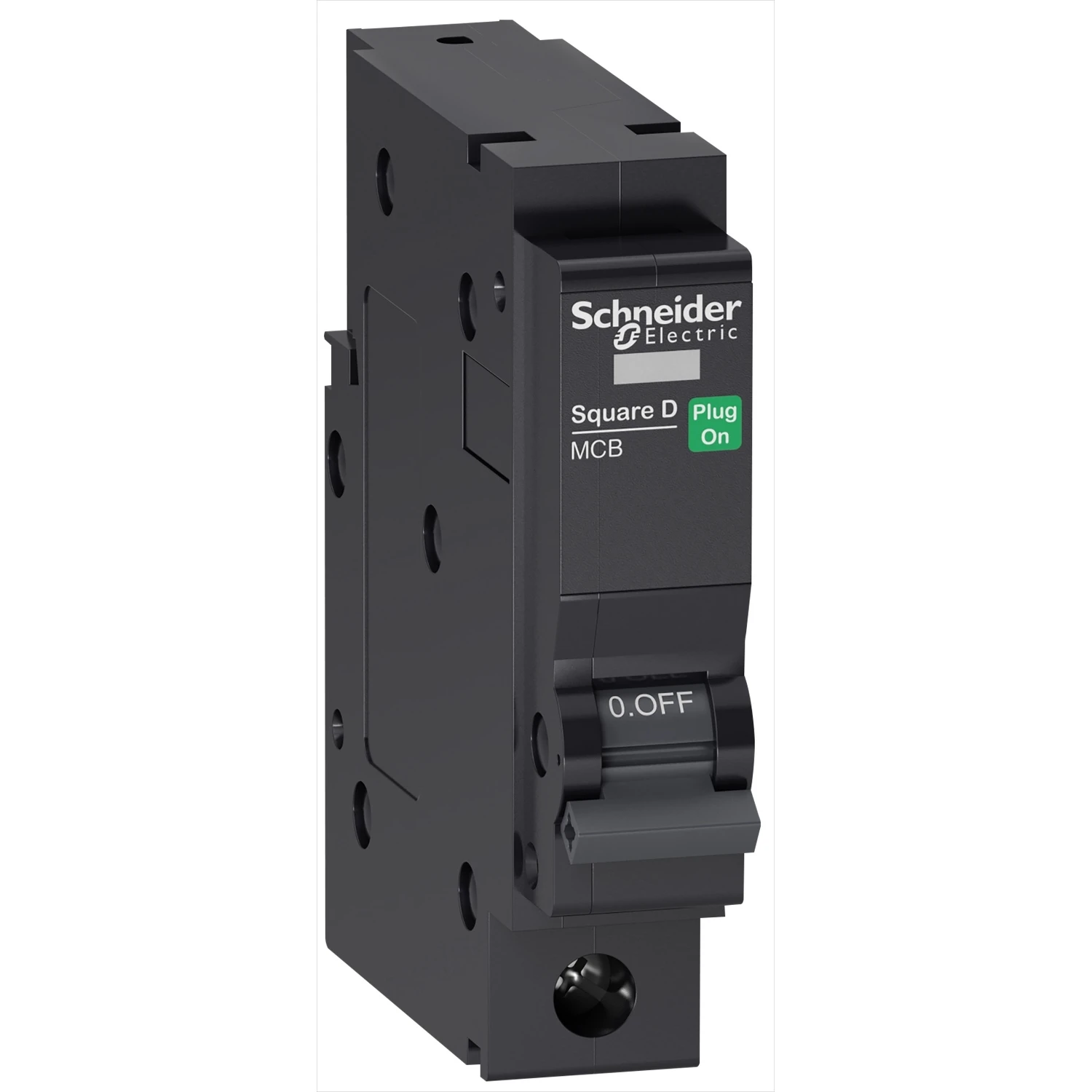

Schneider Electric MCB Single Pole Type C 16A 10kA 18.7 x 81 x 86.3mm
£58.86 Incl. VAT
QO116VSC10 MCB SP Type C 16A 10kA. For use in LoadCentre QO boards. · · · This Square D product is a low voltage miniature circuit breaker (MCB). · · It is a 1P circuit breaker with 1 protected pole and 16A In rated current and C tripping curve. · · The Icn rated short circuit breaking capacity is up to 10000A at 240VAC conforming to EN/IEC 60898-1 standard. · · This product is compliant with EN/IEC 60898-1 standard. · · This miniature circuit breaker protects circuits against short circuit and overload current. · · The tripping upon fault is indicated by a red mechanical state indicator light on the front face of the circuit breaker. · · Operating Temperature -5C to +60C · · Plug-On Mounting · · It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC or 415VAC. The Ui rated insulation voltage is 500VAC.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Over voltage category 4 Pollution degree 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 500 V Number of protected poles 1 Current limiting class 3 Number of poles (total) 1 Rated voltage 240 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Width in number of modular spacings 1 Recess depth 58.8 mm Rated current 16 A Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating 5 – 60 °C Additional equipment possible Yes Concurrently switching N-neutral Yes · Technical Data Sheet – Click to Download
