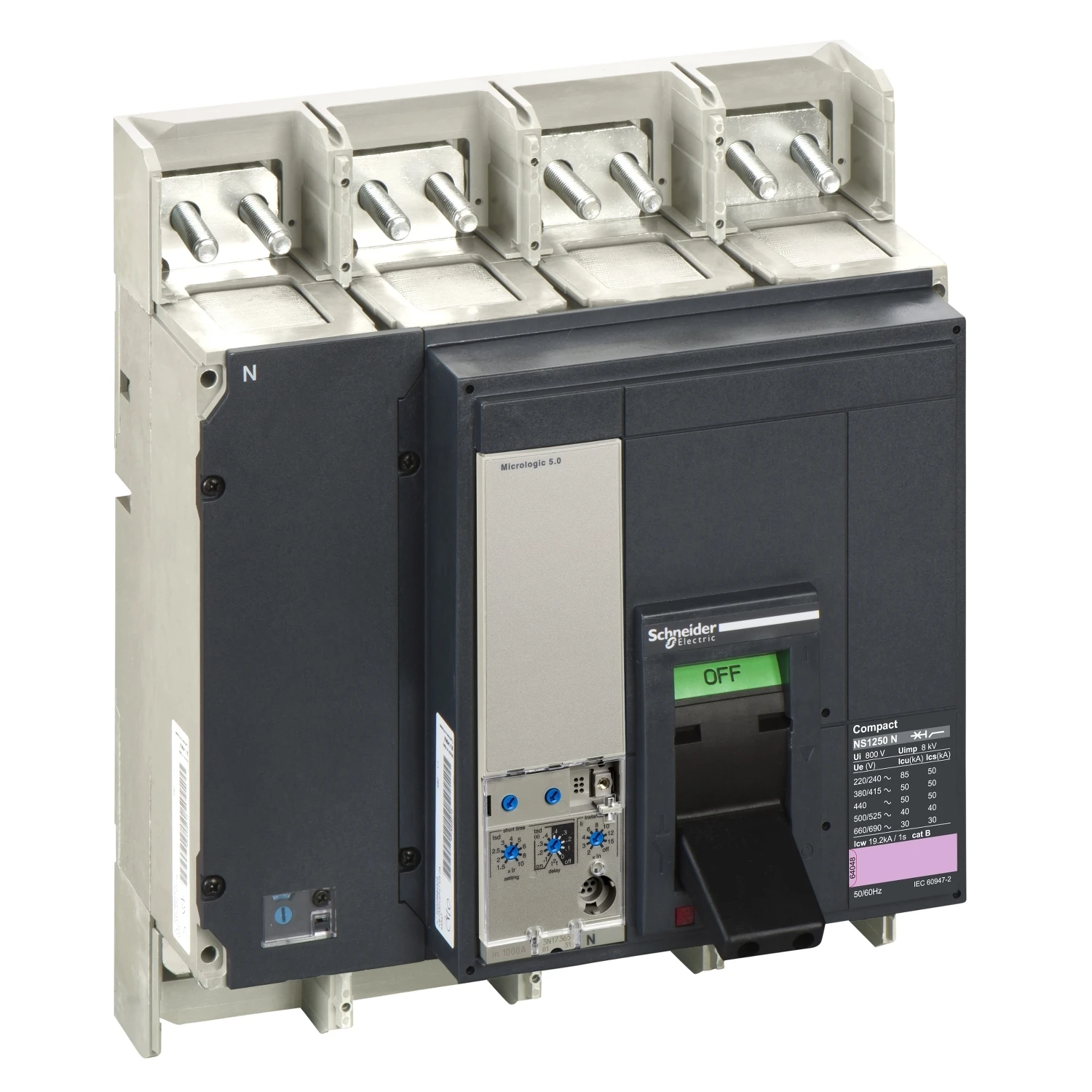

Schneider Electric MCCB Compact Four Pole Type N 1250A 50Ka Micrologic 5.0 Manually Operated
£4,494.62 Incl. VAT
This Compact NS1250N is a complete 4 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. The circuit breaker can be manually operated with ON, OFF or -push to trip- buttons. This product embeds an electronic Micrologic 5.0 trip unit, with 1250A rating. Micrologic 5.0 trip unit provides adjustable long time, short time and instantaneous protections. This 4 poles version (327mm x 280mm x 147mm) comes with a variety of optional functions and accessories. It is compliant with IEC 69947-1 and IEC60947-2 international standards and marine specifications. Compact NS1250N is part of Schneider Electric EcoStruxure Power architecture. · · · This Compact NS1250N is a complete 4 poles fixed circuit breaker designed to optimize space and breaking capacity. · · Micrologic 5.0 trip unit provides adjustable long time, short time and instantaneous protections. · · Compact NS1250N is part of Schneider Electric EcoStruxure Power architecture. · · The operational voltage is 690VAC 50/60Hz. · · The circuit breaker can be manually operated with ON, OFF or “push to trip” buttons. · · This product embeds an electronic Micrologic 5.0 trip unit, with 1250A rating. · · Micrologic 5.0 trip unit provides adjustable long time, short time and instantaneous protections. · · This 4 poles version (327mm x 280mm x 147mm) comes with a variety of optional functions and accessories. · · It is compliant with IEC 69947-1 and IEC60947-2 international standards and marine specifications. · · Compact NS1250N is part of Schneider Electric EcoStruxure Power architecture.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Moulded case circuit breaker (MCCB) Number of auxiliary contacts as normally open contact 0 Number of poles 4 Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as change-over contact 0 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 50 kA Rated permanent current Iu 1250 A Rated voltage 690 – 690 V Overload release current setting 500 – 1250 A Adjustment range short-term delayed short-circuit release 1.5 – 10 A Adjustment range undelayed short-circuit release 2500 – 18750 A Complete device with protection unit Yes Switched-off indicator available Yes Integrated earth fault protection Yes Motor drive integrated No DIN rail (top hat rail) mounting optional No Suitable for DIN rail (top hat rail) mounting No Motor drive optional Yes · Technical Data Sheet – Click to Download
