Schneider Electric Merlin Gerin 9 Wires Auxiliary Connector NSx100-630

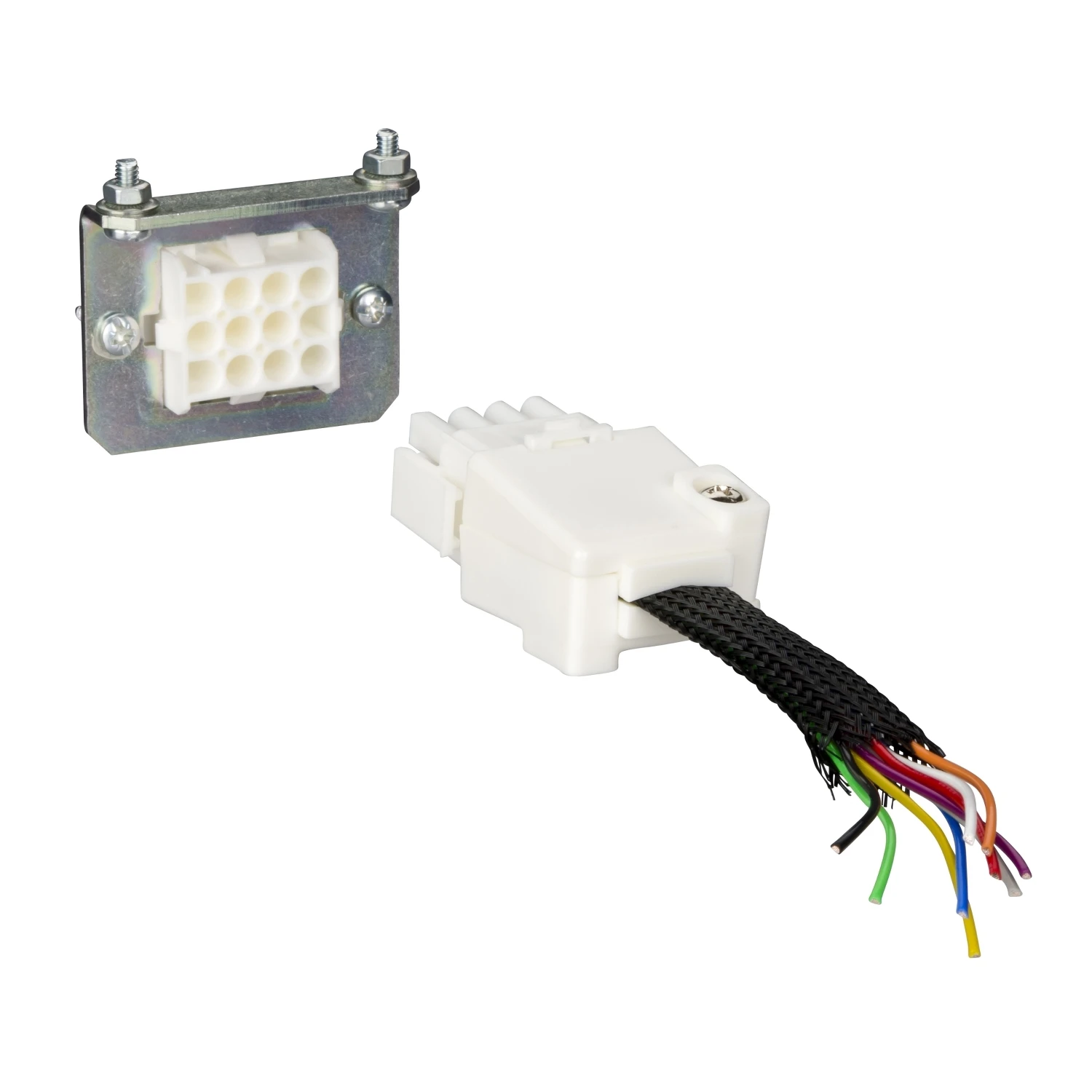

This is a manual connector for Compact NSX 100 to 630 auxiliaries connection. It is adapted for withdrawable circuit breakers. It is made of a fixed and a moving part with 9 wires. The terminal block has numbered terminals for the connection of wires. The wire section is 1.5mm² for auxiliary contacts and voltage releases. The wire section is 2.5mm² for motor mechanisms. The circuit breaker can be equipped with 3 manual connectors with 9 wires each. When the withdrawable circuit breaker is in disconnected position, the auxiliaries remain connected. · · · This is a manual connector for Compact NSX 100 to 630 auxiliaries connection. · · It is adapted for withdrawable circuit breakers. · · It is made of a fixed and a moving part with 9 wires. · · The terminal block has numbered terminals for the connection of wires. · · The wire section is 1.5mm² for auxiliary contacts and voltage releases.
