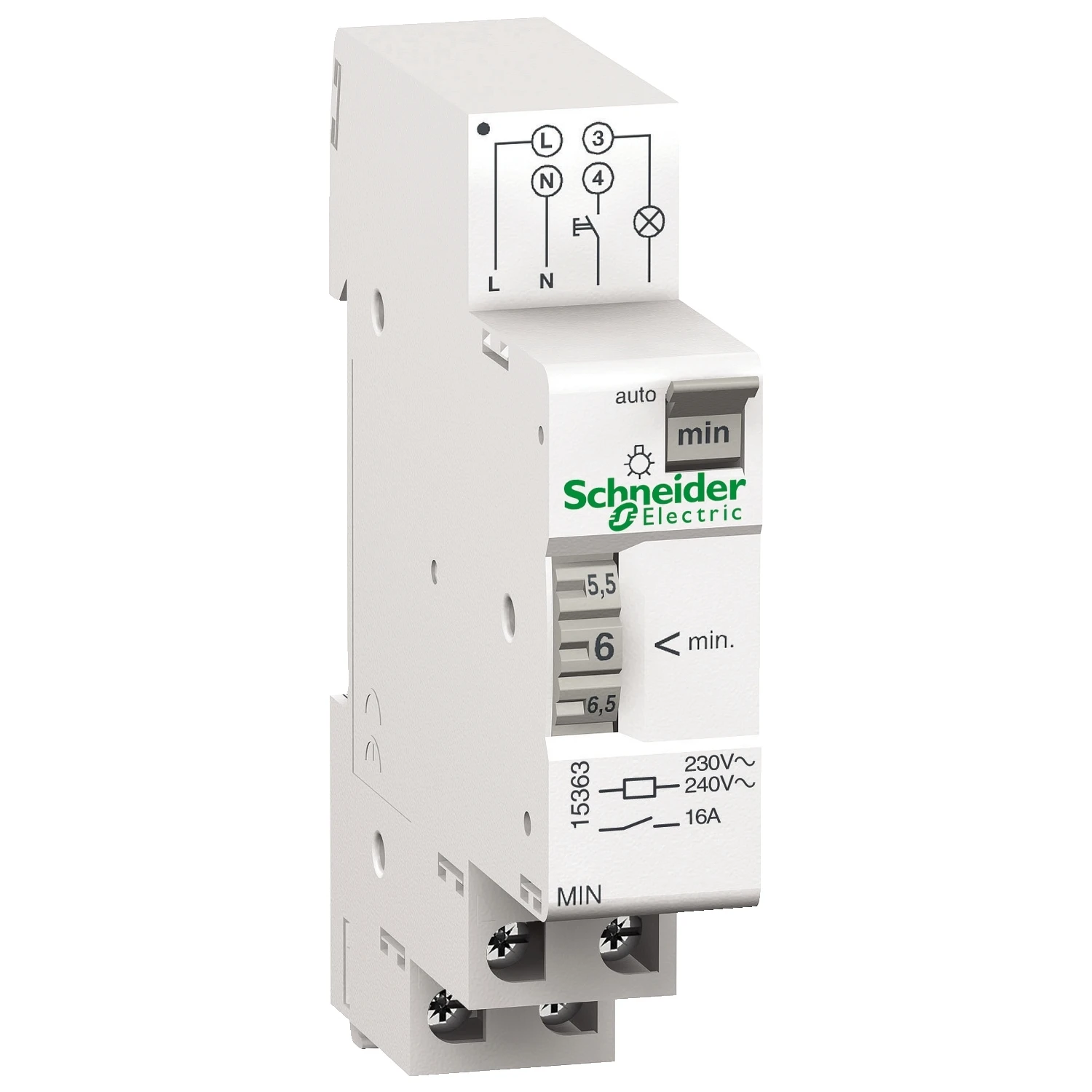

Product image supplied by the manufacturer
Heating & Ventilation

Schneider Electric Merlin Gerin Acti 9min Electromechanical Timer Adjustable From 1 To 7minutes

Brand: Schneider ElectricProduct code: 15363Go Magpie Ref: 5060062456974

MIN electromechanical staircase timers Ideal for corridor or stairwell lighting systems Energy saving device Din rail mounted Operating temperature ranges from -10 to +50 °C Operating voltage 230V AC Degree of protection IP20 B Screw terminal connection. · · · MIN electromechanical staircase timers · · Ideal for corridor or stairwell lighting systems · · Energy saving device · · Din rail mounted · · Operating temperature ranges from -10 to +50 °C

£115.18inc VAT£95.98 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Staircase/communal area lighting timer Width in number of modular spacings 1.00 Max. load fluorescent lamp 2300.00 VA Max. incandescent lamp load 2300.00 W Push button glow-lamp current 50.00 mA Max. switching current (cos phi = 0.6) 10.00 A Rated switch current 16.00 A Number of contacts as normally closed contact 0.00 Recess depth 68.00 mm Max. load fluorescent lamp (Duo circuit) 2300.00 VA Number of contacts as normally open contact 1.00 Number of contacts as change-over contact 0.00 Max. load fluorescent lamp (parallel compensated) 1300.00 VA Frequency control voltage 1 50.00 – 60.00 Hz Control voltage 1 230.00 – 230.00 V Control voltage 2 – – – V Frequency control voltage 2 – – – Hz Release-delay 1.00 – 7.00 min Supply voltage 230.00 – 230.00 V Current surge function selectable No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188093
