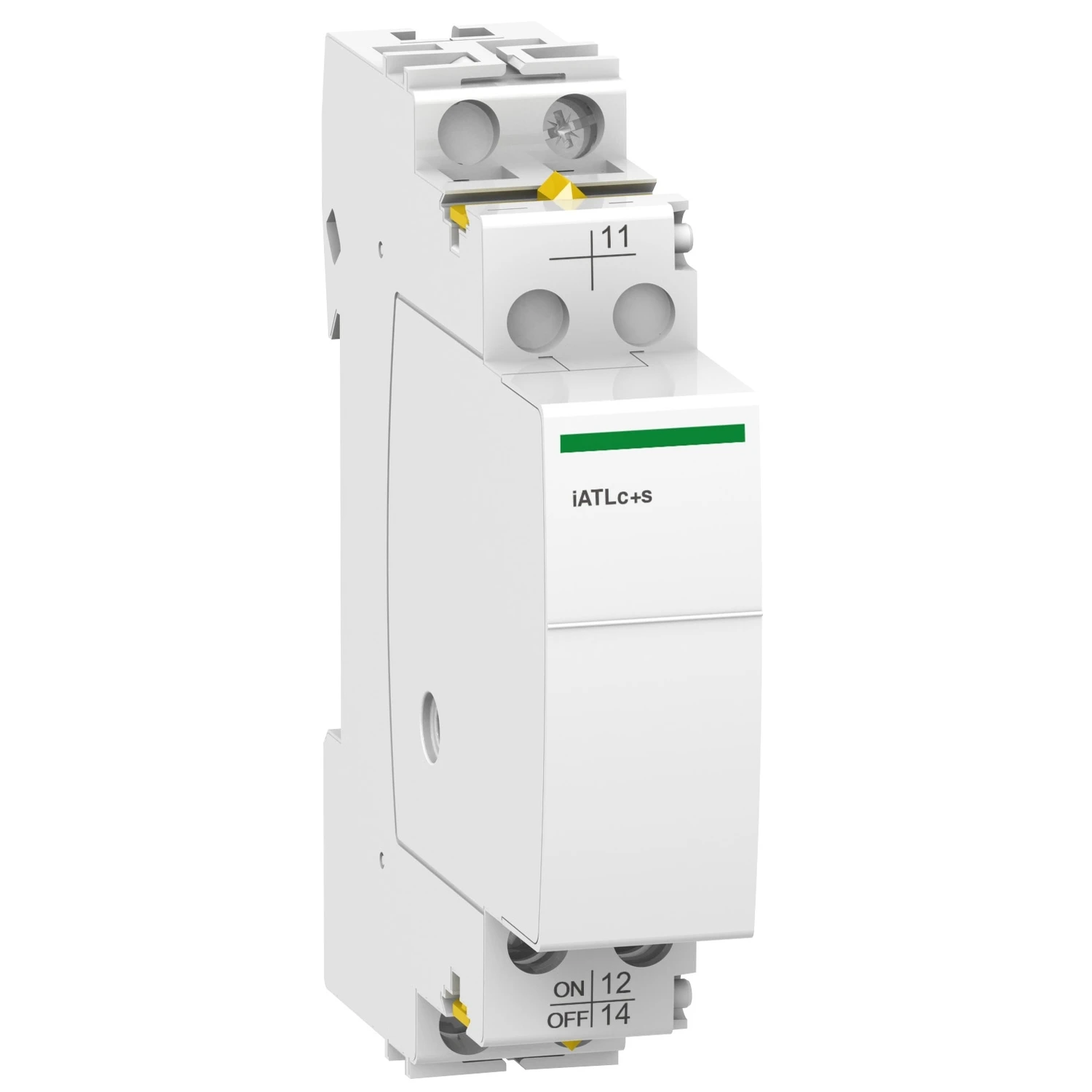

Schneider Electric Merlin Gerin Centralized Control Iatlc+S
£43.57 Incl. VAT
This Acti 9 iATLc+s is reliable centralized control and remote indication auxiliary. It has 1 changeover contact, and it operates with 24VAC to 240VAC control voltage. Mounting is performed on the right of iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays allow centralized control of a group of impulse relays. This product is compliant with EN/IEC 60669-2-2. · · · This Acti 9 iATLc+s is reliable centralized control and remote indication auxiliary. · · DIN rail mounted · · EN/IEC 60669-2-2 · · IP20 conforming to IEC 60529 · · Ambient air temperature for operation between -20…50 °C · · Green Premium Product
Out of Stock
Description
Technical Specifications Technical Specifications Auxiliary device for distribution board devices Rated voltage 240 V Rated switch current 6 A Number of contacts as change-over contact 1 Suitable for max. current main contact unit 32 A Number of contacts as normally closed contact 0 Number of contacts as normally open contact 0 Suitable for max. number of poles main contact unit (total) 4 With auto test for earth leakage function No Number of fault-signal switches – · Technical Data Sheet – Click to Download
