Schneider Electric Merlin Gerin ICT 25A 4NO 220-240V 50Hzmo Contact

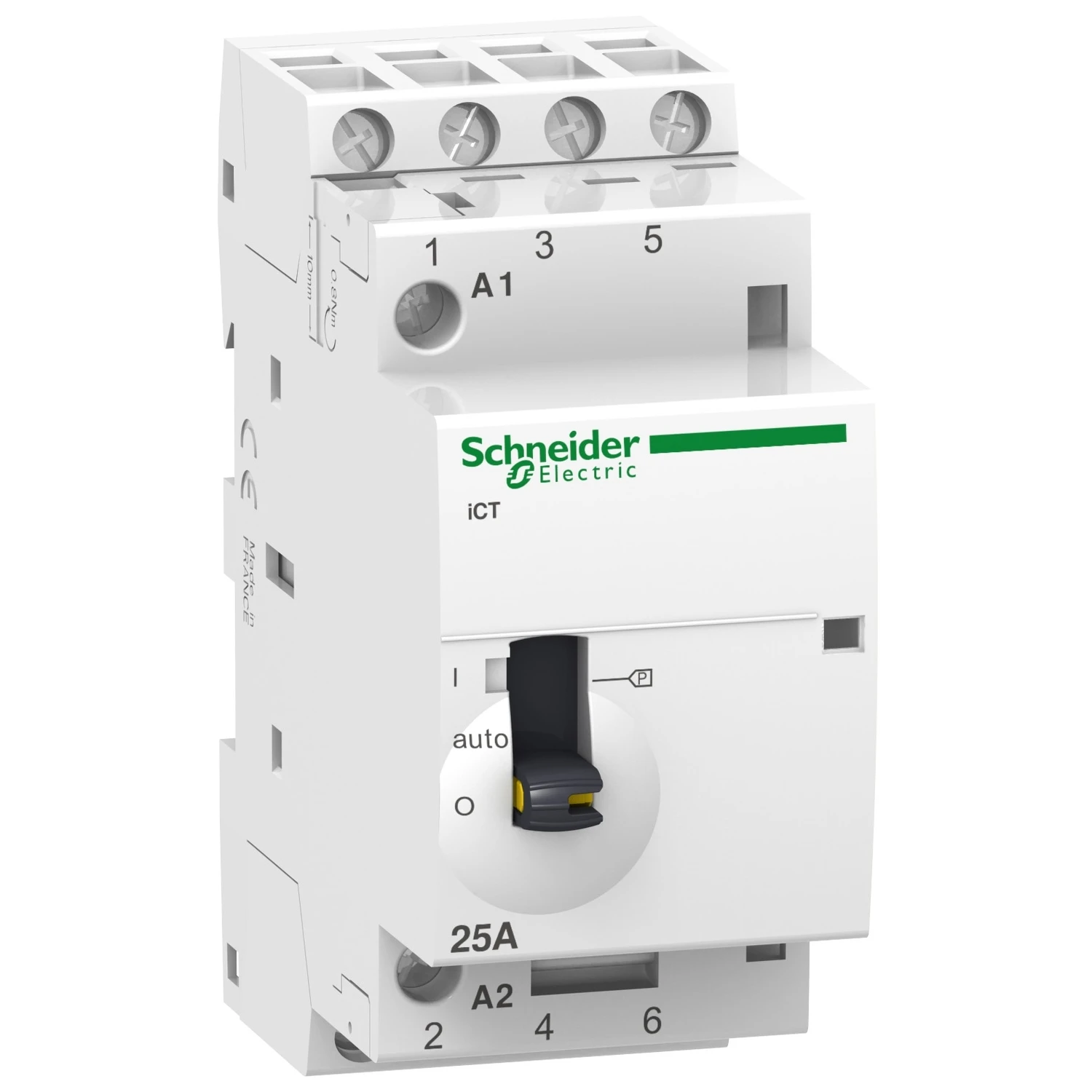

This Acti9 iCT is a modular contactor. It is a 4P remote and manual control device with 4 normally open contacts. The In rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications. This product is compliant with IEC/EN 61095. Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 4 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 36mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C. · · · Control and monitoring of electrical circuits in all industrial, commercial and residential buildings. · · Control and monitoring of single- or three-phase loads up to 100A. · · Interface between the control gear & power circuits for final circuits such as lighting, heating, roller blind, watering system, ovens, utility motors: ventilation, heat pump etc. · · Peace of mind with the complete modular system · · Flexible auxiliaries combination with a simple clip-on system · · Consistent with the entire Acti 9 offer · · Compliance with standards: EN 61095 and CEI 1095
