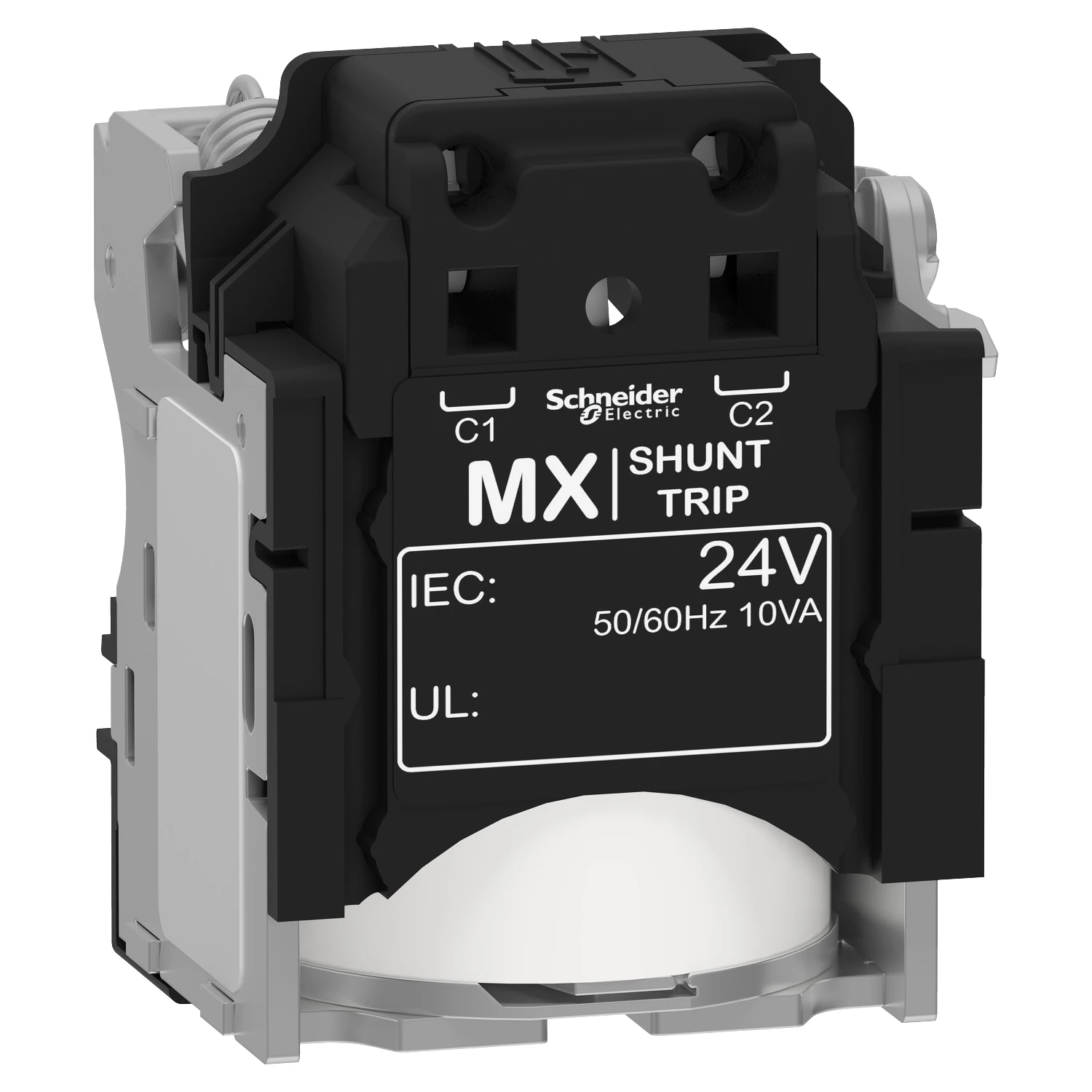

Schneider Electric Merlin Gerin Shunt Trip Voltage Release MX 24V 50/60Hz
£97.74 Incl. VAT
This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 24 VAC 50/60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary. · · · This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. · · Its rated voltage is 24 VAC 50/60 Hz. · · It is an auxiliary used for emergency off or remote opening applications. · · This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. · · It complies with IEC 60947-2 standard.
Out of Stock
Description
Technical Specifications Technical Specifications Shunt release (for power circuit breaker) Number of contacts as change-over contact 0.00 Number of contacts as normally open contact 0.00 Number of contacts as normally closed contact 0.00 Initial value of the undelayed short-circuit release – setting range – A End value adjustment range undelayed short-circuit release – A Rated control supply voltage at AC 50 Hz 24.00 – 24.00 V Rated control supply voltage at DC – – – V Suitable for off-load switch Yes Rated control supply voltage at AC 60 Hz 24.00 – 24.00 V Suitable for power circuit breaker Yes Suitable for overload relay No Suitable for motor safety switch No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205398
