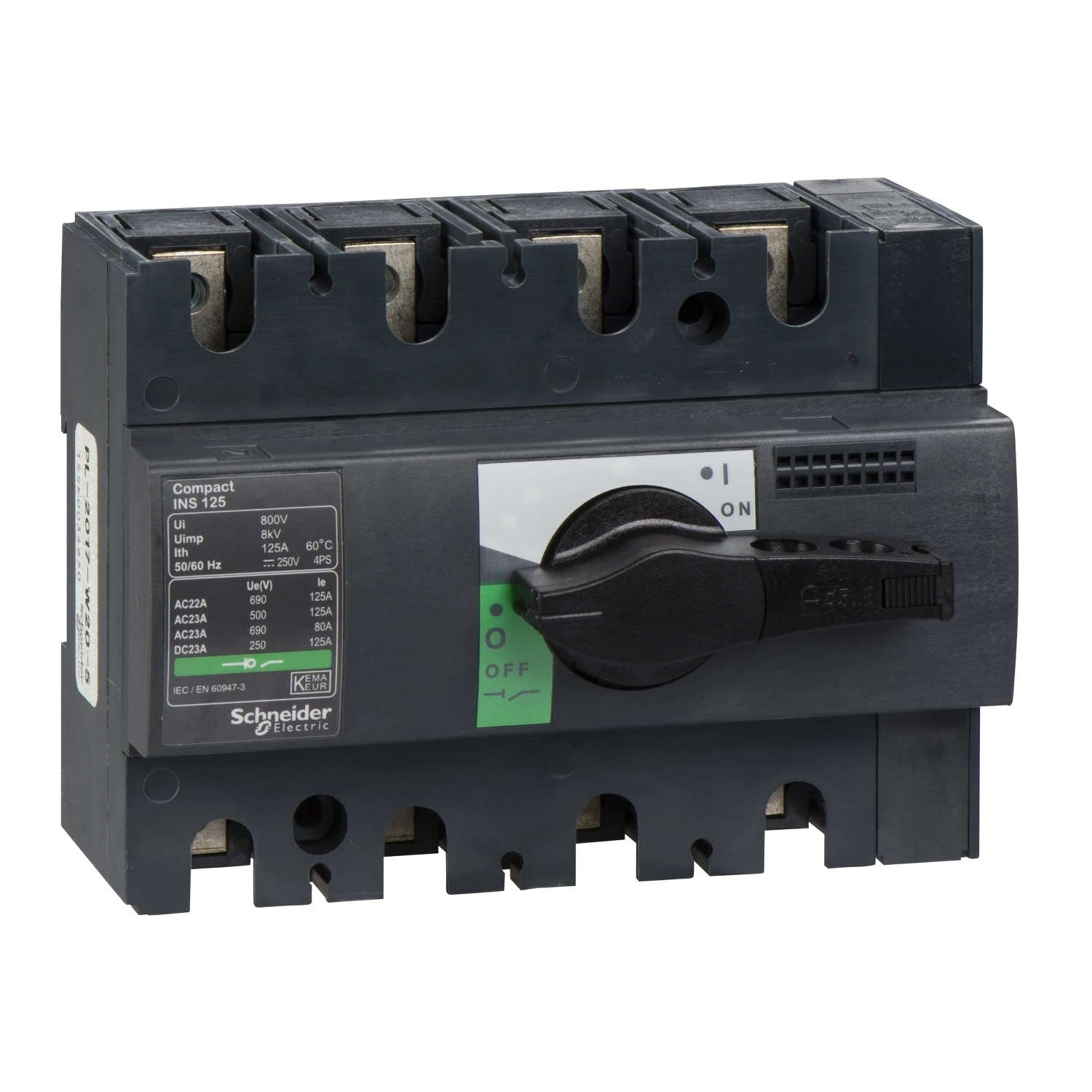

Schneider Electric Merlin Gerin Switch-Disconnector Compact Ins125 4 Poles 125A
Schneider Electric Merlin Gerin Switch-Disconnector Compact Ins125 4 Poles 125A
Schneider Electric Merlin Gerin Switch-Disconnector Compact Ins125 4 Poles 125A - Image 2

Schneider Electric Merlin Gerin Switch-Disconnector Compact Ins125 4 Poles 125A

£179.36 Incl. VAT

This Compact INS125 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 125A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS125 is a class II insulation level front-face device as per IEC 60664 standard. · · · Height: 100mm · · Number of Poles: 4P · · Range: Ins40 – 160 · · Width: 135mm · · Weight: 0.9kg · · Depth: 62mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 28911 Category: Brand: Product Code: 2500097383

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated operation power at AC-3, 400 V – kW Number of auxiliary contacts as normally closed contact 0.00 Number of poles 4.00 Rated short-time withstand current lcw 5.50 kA Conditioned rated short-circuit current Iq 65.00 kA Switching power at 400 V – kW Number of auxiliary contacts as normally open contact 0.00 Max. rated operation voltage Ue AC 690.00 V Number of auxiliary contacts as change-over contact 2.00 Number of switches 1.00 Rated permanent current Iu 125.00 A Rated permanent current at AC-23, 400 V 125.00 A Rated permanent current at AC-21, 400 V – A Version as emergency stop installation No Version as maintenance-/service switch Yes Rated operation power at AC-23, 400 V 55.00 kW Motor drive integrated No Version as main switch Yes Suitable for front mounting 4-hole Yes Rated operating voltage 690.00 – 690.00 V Suitable for intermediate mounting No Interlockable Yes Suitable for distribution board installation Yes Suitable for front mounting centre Yes Version as safety switch No Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download
