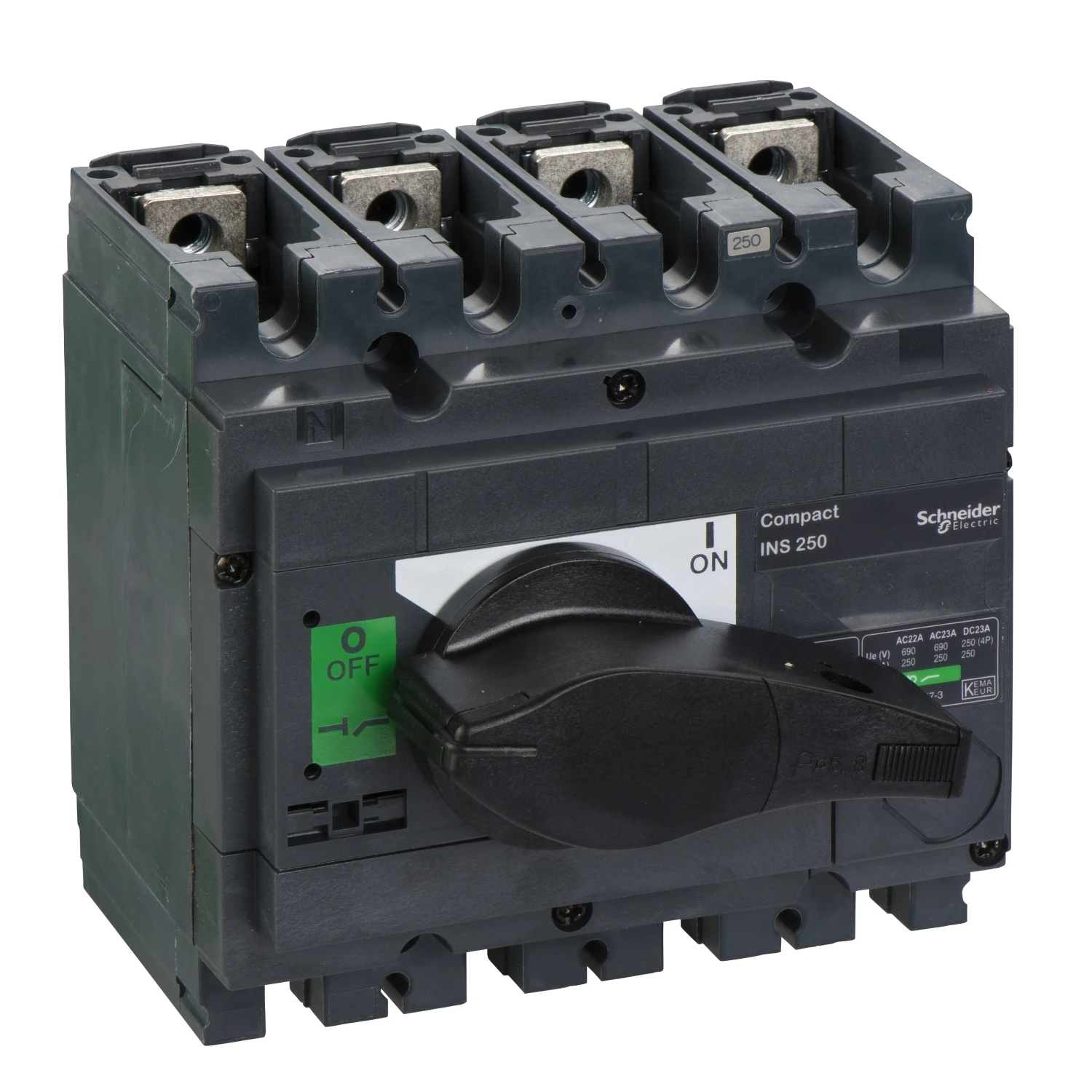

Schneider Electric Merlin Gerin Switch-Disconnector Compact Ins250 250A 4 Poles
Schneider Electric Merlin Gerin Switch-Disconnector Compact Ins250 250A 4 Poles
Schneider Electric Merlin Gerin Switch-Disconnector Compact Ins250 250A 4 Poles - Image 2

Schneider Electric Merlin Gerin Switch-Disconnector Compact Ins250 250A 4 Poles

£345.13 Incl. VAT

This Compact INS250 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 250A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS250 is a class II insulation level front-face device as per IEC 60664 standard. · · · Height: 136mm · · Number of Poles: 4P · · Range: Ins250 · · Width: 140mm · · Weight: 2.2kg · · Depth: 96mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 31107 Category: Brand: Product Code: 2500092156

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current at AC-23, 400 V 250.00 A Rated permanent current Iu 250.00 A Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Rated short-time withstand current lcw 8.50 kA Rated operation power at AC-3, 400 V – kW Conditioned rated short-circuit current Iq – kA Number of auxiliary contacts as change-over contact 2.00 Number of switches 1.00 Rated operation power at AC-23, 400 V 132.00 kW Rated permanent current at AC-21, 400 V – A Switching power at 400 V – kW Max. rated operation voltage Ue AC 690.00 V Rated operating voltage 0.00 – 690.00 V Number of poles 4.00 Voltage release optional No Version as reversing switch No Motor drive optional No Suitable for distribution board installation Yes Version as main switch Yes Version as safety switch No Version as emergency stop installation No Version as maintenance-/service switch Yes Motor drive integrated No Suitable for front mounting 4-hole Yes Suitable for front mounting centre Yes Suitable for intermediate mounting No Interlockable Yes · Technical Data Sheet – Click to Download
