Schneider Electric Merlin Gerin Switch-Disconnector Compact Ins63 4 Poles 63A
£100.87 Incl. VAT

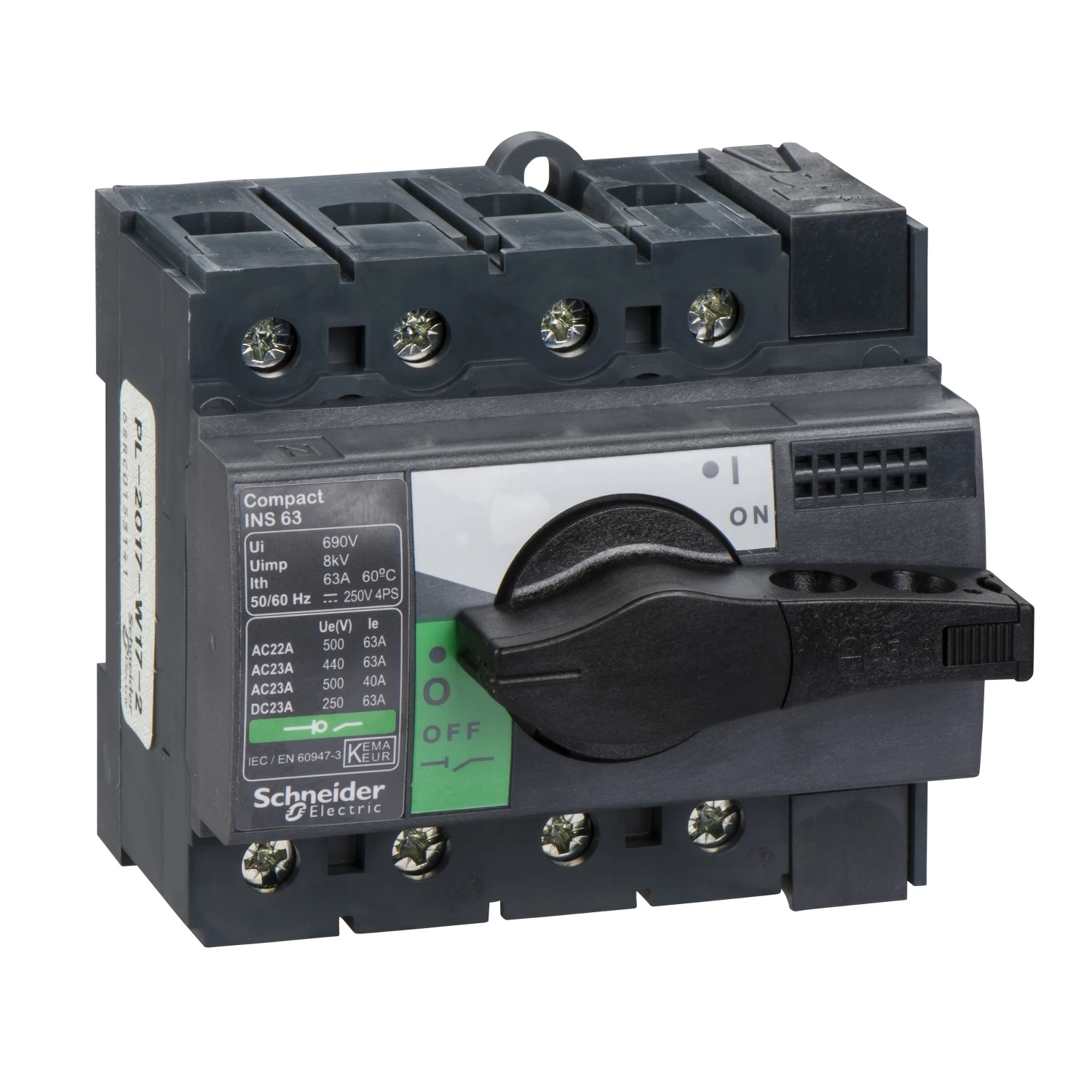

This Compact INS63 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 63A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS63 is a class II insulation level front-face device as per IEC 60664 standard. · · · Height: 85mm · · Number of Poles: 4P · · Range: Ins40 – 160 · · Width: 90mm · · Weight: 0.6kg · · Depth: 62mm
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 0.00 Number of poles 4.00 Rated permanent current at AC-23, 400 V 63.00 A Number of switches 1.00 Max. rated operation voltage Ue AC 500.00 V Rated operation power at AC-23, 400 V 30.00 kW Conditioned rated short-circuit current Iq 36.00 kA Rated permanent current Iu 63.00 A Rated short-time withstand current lcw 3.00 kA Number of auxiliary contacts as change-over contact 2.00 Rated operating voltage 500.00 – 500.00 V Version as maintenance-/service switch Yes Version as safety switch No Version as emergency stop installation No Motor drive integrated No Interlockable Yes Version as main switch Yes Suitable for front mounting 4-hole Yes Suitable for intermediate mounting No Suitable for distribution board installation Yes Suitable for front mounting centre Yes Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download
