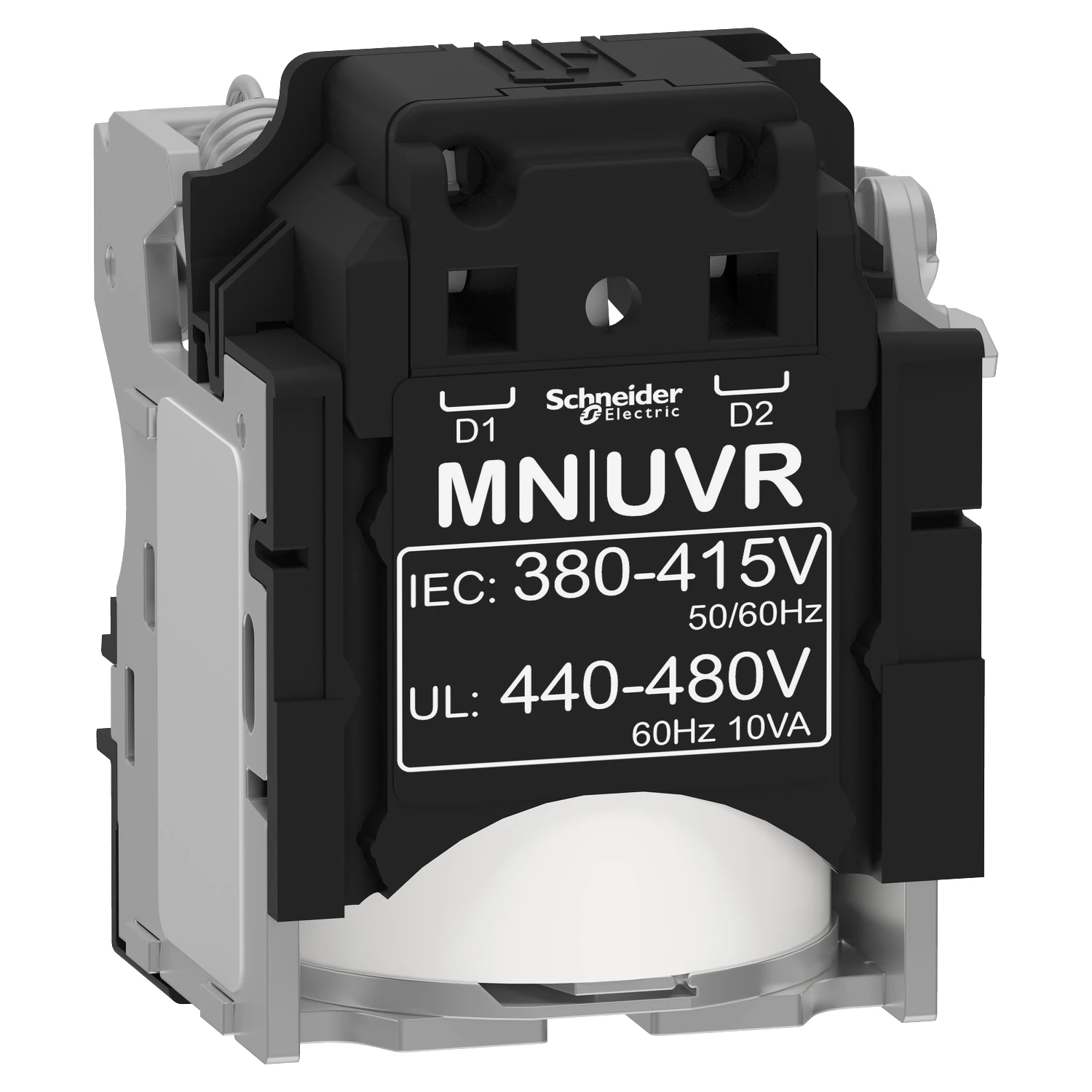

Schneider Electric Merlin Gerin Under Voltage Release MN 440-480V 60Hz 380-415V 50/60Hz
£153.56 Incl. VAT
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 380 to 415 VAC 50/60 Hz, or 440 to 480 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary. · · · This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. · · Its rated voltage is 380 to 415 VAC 50/60 Hz, or 440 to 480 VAC 60 Hz. · · It is an auxiliary used for emergency off or remote opening applications. · · This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. · · It complies with IEC 60947-2 standard.
Out of Stock
Description
Technical Specifications Technical Specifications Under voltage coil Number of contacts as normally open contact 0.00 Number of contacts as normally closed contact 0.00 Number of contacts as change-over contact 0.00 Rated control supply voltage at DC – – – V Rated control supply voltage at AC 50 Hz 380.00 – 415.00 V Delayed No Rated control supply voltage at AC 60 Hz 440.00 – 480.00 V Suitable for off-load switch Yes Suitable for overload relay No Suitable for motor safety switch Yes Suitable for power circuit breaker Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205398
