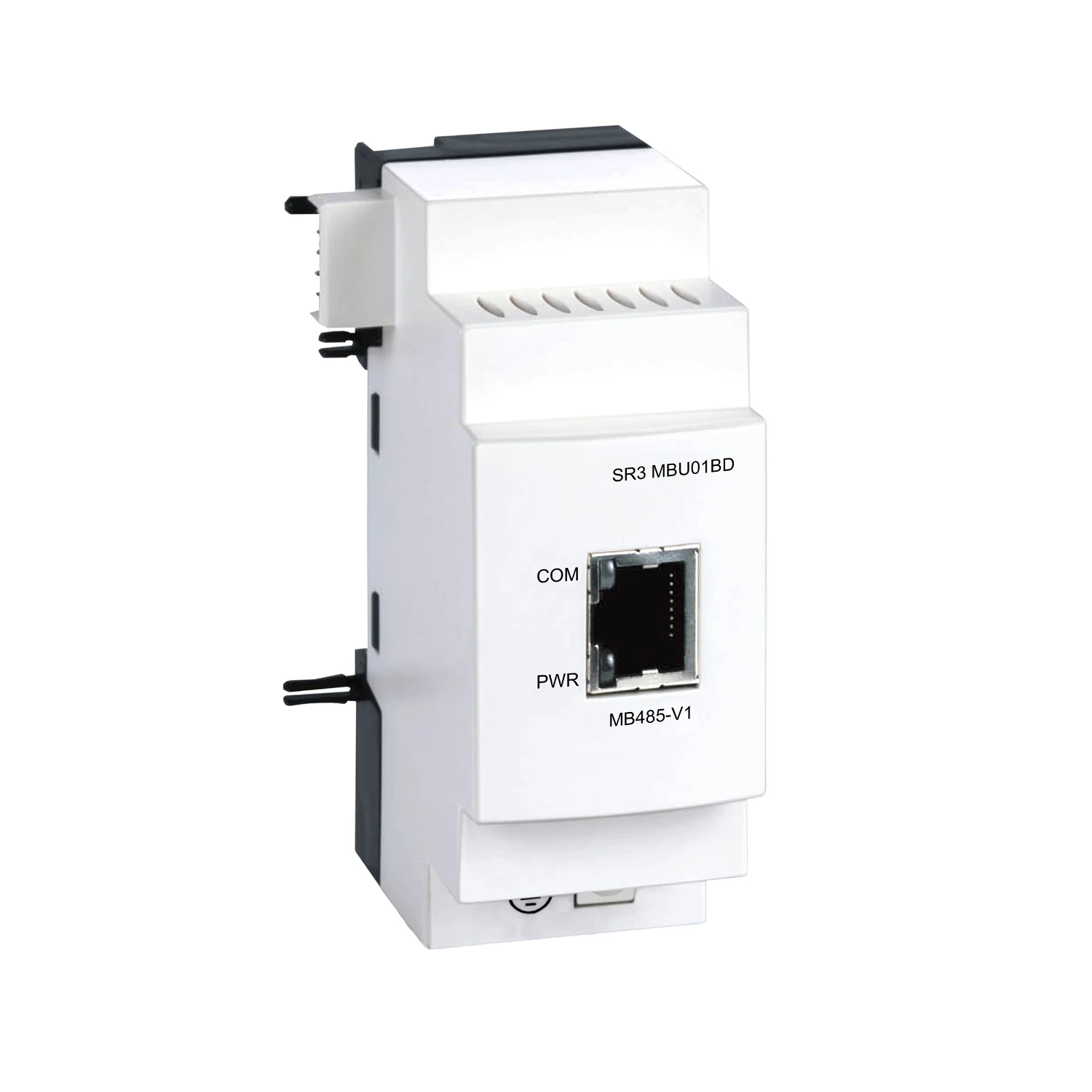

Schneider Electric Modbus network slave communication module, for SR3 24 V DC smart relay
Schneider Electric Modbus network slave communication module, for SR3 24 V DC smart relay
Schneider Electric Modbus network slave communication module, for SR3 24 V DC smart relay - Image 2

Schneider Electric Modbus network slave communication module, for SR3 24 V DC smart relay

£168.08 Incl. VAT

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The Modbus slave communication module is suitable for smart relays. It is a communication module with 2 or 4 wires wiring mode. It is furnished with RJ45 connector for electrical connection. It is an IP20 and IP40 rated product. It weighs 0.11kg. This product is certified by GOST, C-Tick, UL, GL and CSA. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5 and EN/IEC 60068-2-6 Fc standards. This product is compatible with all modules with 24V supply SR3 BxxxBD. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards. · · · This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. · · The Modbus slave communication module is suitable for smart relays. · · It is a communication module with 2 or 4 wires wiring mode.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SR3MBU01BD Categories: , Brand: Product Code: 2500170648

Description

Technical Specifications  Technical Specifications Logic module Height 90.00 mm Width 35.00 mm Depth 57.00 mm Number of digital outputs 0.00 Number of digital inputs 0.00 Number of analogue outputs 0.00 Number of analogue inputs 0.00 Number of HW-interfaces industrial Ethernet 0.00 Number of HW-interfaces RS-422 0.00 Number of HW-interfaces RS-232 0.00 Number of HW-interfaces serial TTY 0.00 Number of HW-interfaces RS-485 0.00 Number of HW-interfaces USB 0.00 Number of HW-interfaces parallel 0.00 Number of HW-interfaces Wireless 0.00 Number of HW-interfaces other 0.00 Number of HW-interfaces PROFINET 0.00 Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Display No Expandable No With optical interface No With timer No Suitable for safety functions No Supporting protocol for PROFIBUS No Supporting protocol for INTERBUS No Supporting protocol for CAN No Supporting protocol for Data-Highway No Supporting protocol for ASI No Supporting protocol for KNX No Supporting protocol for TCP/IP Yes With relay output No Supporting protocol for MODBUS Yes Wall mounting/direct mounting No IO link master No Radio standard UMTS No Radio standard GSM No Radio standard GPRS No Radio standard WLAN 802.11 No Radio standard Bluetooth No Front built-in possible Yes Appendant operation agent (Ex ib) No Rack-assembly possible No Appendant operation agent (Ex ia) No Rail mounting possible Yes Redundancy No Basic device Yes Expansion device Yes Supporting protocol for other bus systems No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for EtherNet/IP No Supporting protocol for SERCOS No Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET CBA No Supporting protocol for LON No Supporting protocol for PROFINET IO No Supporting protocol for SUCONET No Supporting protocol for DeviceNet No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192636
