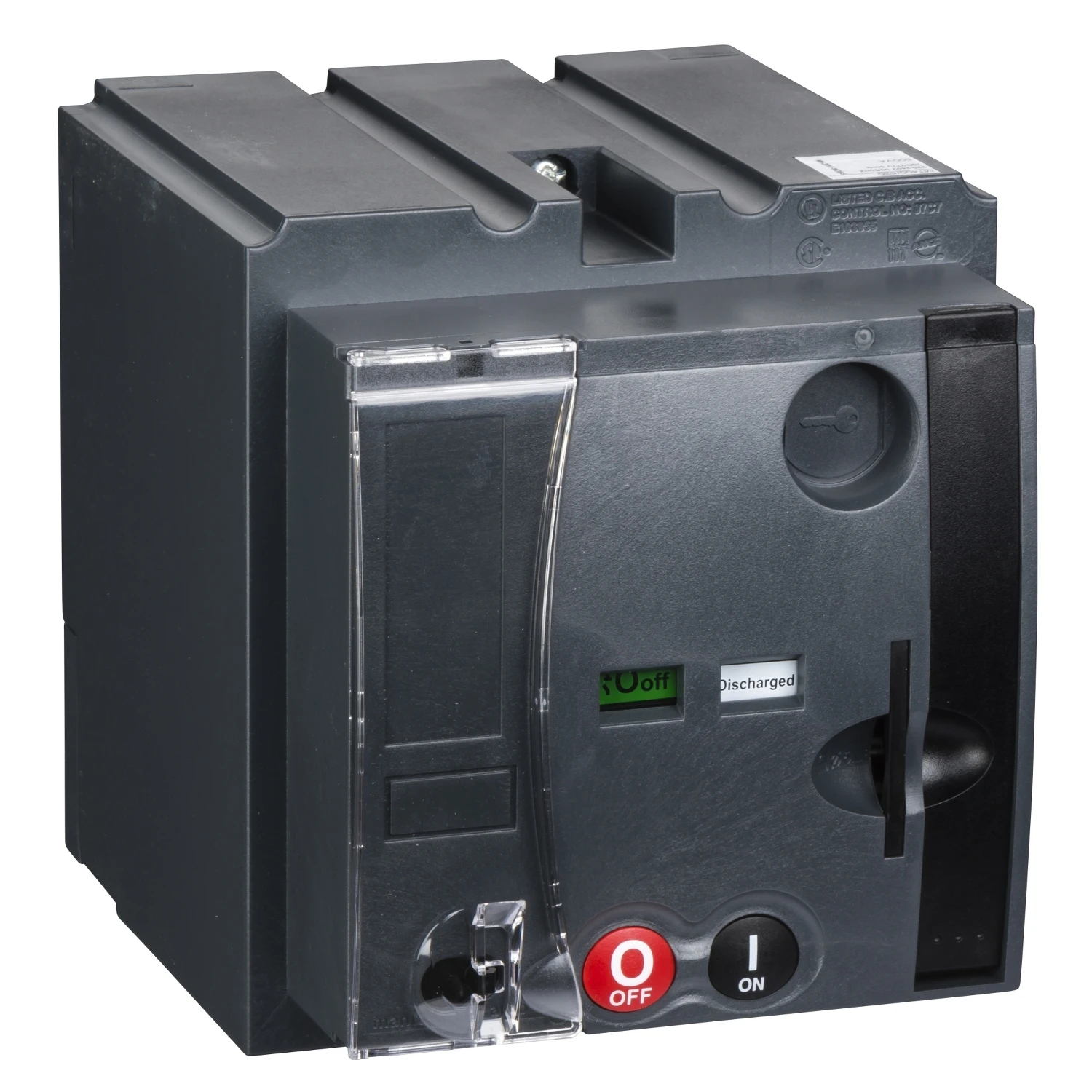

Schneider Electric Motor Mechanism MT400/630 380-415V AC 50/60Hz

This is a standard motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 380VAC to 415VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. · · · This is a standard motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. · · It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. · · It provides a double insulation of the front face and all indications remain visible and accessible. · · The control voltage of this motor mechanism module is 380VAC to 415VAC 50/60Hz. · · The consumption is less than 500VA. · · Padlocking of the device remains possible.
