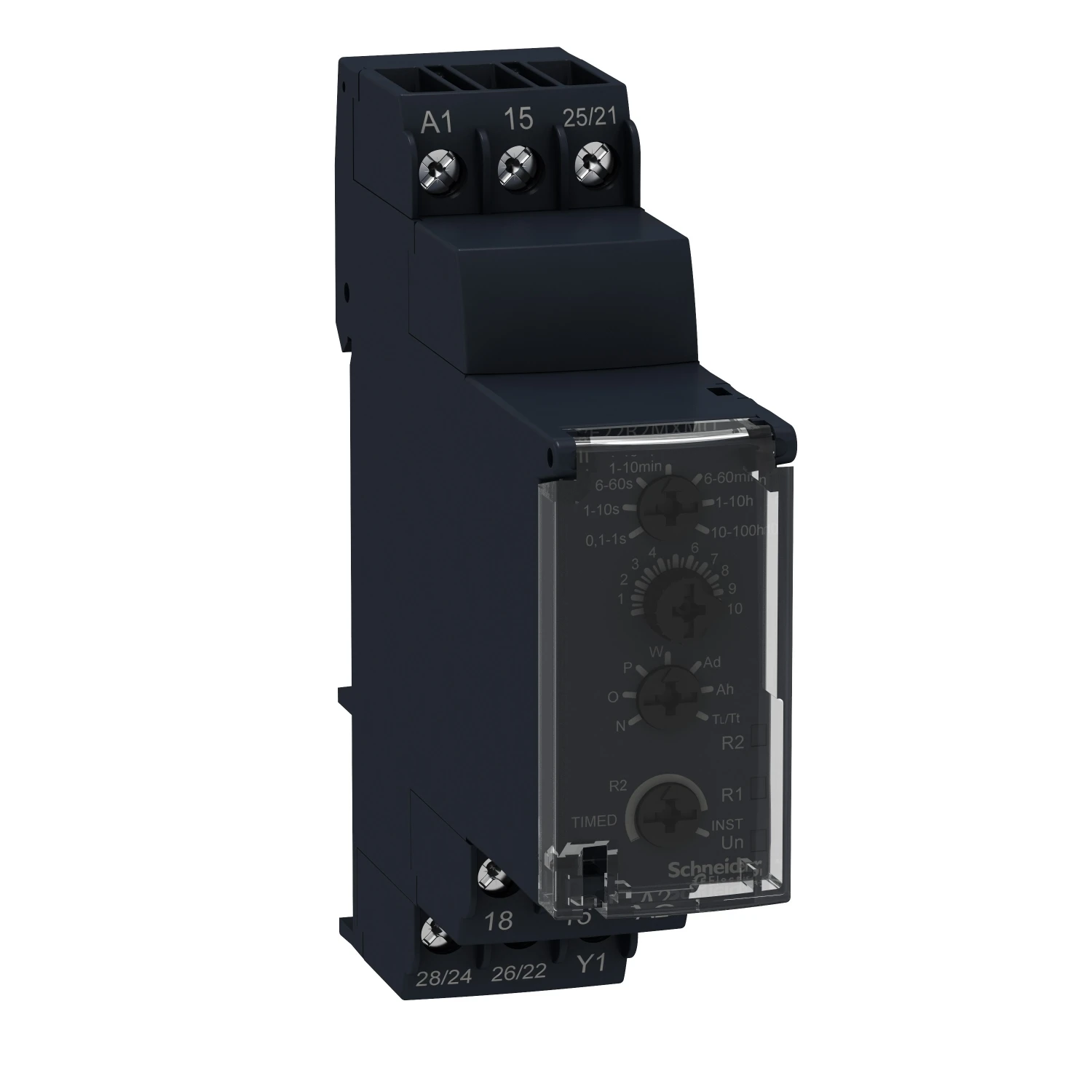

Schneider Electric Multifunction Timer Relay, 12..240 V AC/DC, 2 C/O - Image 2
Schneider Electric Multifunction Timer Relay, 12..240 V AC/DC, 2 C/O - Image 3
Schneider Electric Multifunction Timer Relay, 12..240 V AC/DC, 2 C/O - Image 4

Schneider Electric Multifunction Timer Relay, 12..240 V AC/DC, 2 C/O

£78.83 Incl. VAT

Multifunction Timer Relay, 12..240 V AC/DC, 2 C/O. range of product: Zelio Time – product or component type: modular timing relay – discrete output type: relay – device short name: RE22 – nominal output current: 8 A. · · · This Zelio RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. · · It provides multi functions and it is mountable on DIN rail. · · This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. · · It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. · · It also offers a sealable cover, simple and precise settings with rotary trimmers. · · Selectable timing range offers a one stop solution for your power management system. · · multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RE22R2MMW Categories: , , Brand: Product Code: 2500892982

Description

Technical Specifications  Technical Specifications Timer relay Nominal current 8 A Width 22.5 mm Height 90 mm Number of outputs, undelayed, normally closed contact 0 Number of outputs, undelayed, normally open contact 0 Number of outputs, delayed, normally closed contact 0 Number of outputs, delayed, normally open contact 0 Number of outputs, undelayed, change-over contact 1 Number of outputs, delayed, change-over contact 2 Depth 79.5 mm Time range 0.1 – 360000 s Rated control supply voltage at AC 50 Hz 12 – 240 V Rated control supply voltage at AC 60 Hz 12 – 240 V Rated control supply voltage at DC 12 – 240 V Suitable for DIN rail (top hat rail) mounting Yes With semiconductor output No Function pulse shaping Yes Function flashing, starting with pause, fixed time Yes Function flashing, starting with pulse, fixed time Yes Pluggable on auxiliary contact block No Outputs, reversible delayed/undelayed Yes Function floating contact on energization No Function delay-on energization Yes Function delay on de-energization Yes Remote operation possible Yes Function floating contact on de-energization No Function star-delta No Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No · Technical Data Sheet – Click to Download
