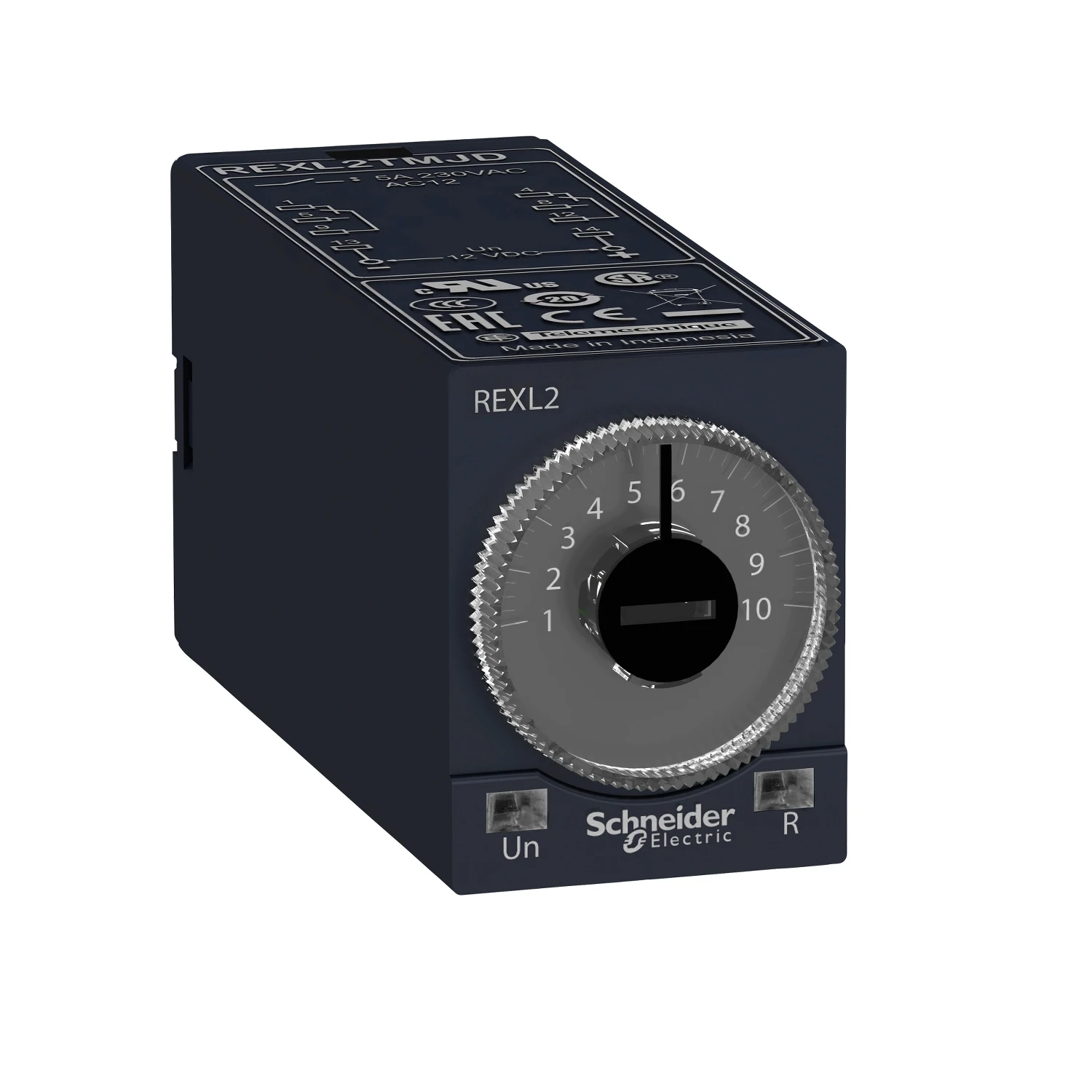

Schneider Electric On-delay timing relay, 0,1 s..100 h, 12 V DC, 2 OC
Awaiting product image

Schneider Electric On-delay timing relay, 0,1 s..100 h, 12 V DC, 2 OC

£51.79 Incl. VAT

This Harmony REXL ON-delay timer can be set between 0.1 seconds and 100 hours. It provides function A and it uses plug-in mounting. This modular ON-delay timer is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. · · · This Zelio REXL ON-delay timer can be set between 0.1 seconds and 100 hours. · · It provides function A and it uses plug-in mounting. · · This modular ON-delay timer is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. · · It is a plug-in device, meaning it is quick and easy to install with the need for tools. · · It also offers a sealable cover, simple and precise settings with rotary trimmers.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: REXL2TMJD Categories: , , , Brand: Product Code: 2500382734

Description

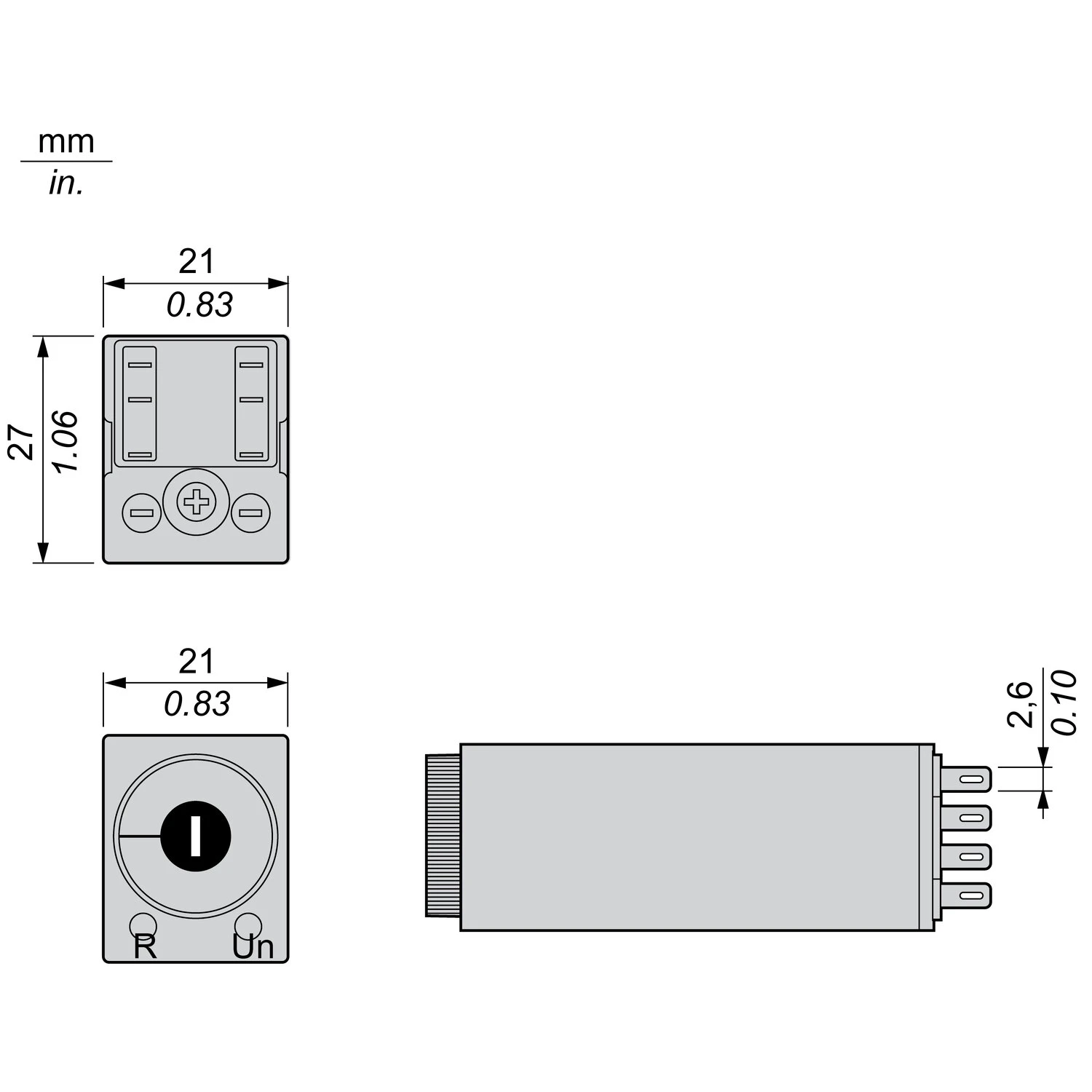

Technical Specifications  Technical Specifications Timer relay Depth 63 mm Nominal current 5 A Height 27 mm Width 21 mm Number of outputs, undelayed, normally closed contact 0 Number of outputs, undelayed, normally open contact 0 Number of outputs, undelayed, change-over contact 0 Number of outputs, delayed, normally closed contact 0 Number of outputs, delayed, normally open contact 0 Number of outputs, delayed, change-over contact 2 Rated control supply voltage at AC 50 Hz 0 – 0 V Rated control supply voltage at AC 60 Hz 0 – 0 V Time range 0.1 – 360000 s Rated control supply voltage at DC 12 – 12 V Suitable for DIN rail (top hat rail) mounting No With semiconductor output No Pluggable on auxiliary contact block No Outputs, reversible delayed/undelayed No Function delay on de-energization No Function floating contact on energization No Remote operation possible No Function delay-on energization Yes Function floating contact on de-energization No Function star-delta No Function pulse shaping No Function flashing, starting with pause, fixed time No Function flashing, starting with pulse, fixed time No Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No · Technical Data Sheet – Click to Download
