Schneider Electric PB ILL 110VAC YEL LED 1NO/1NC
£36.47 Incl. VAT

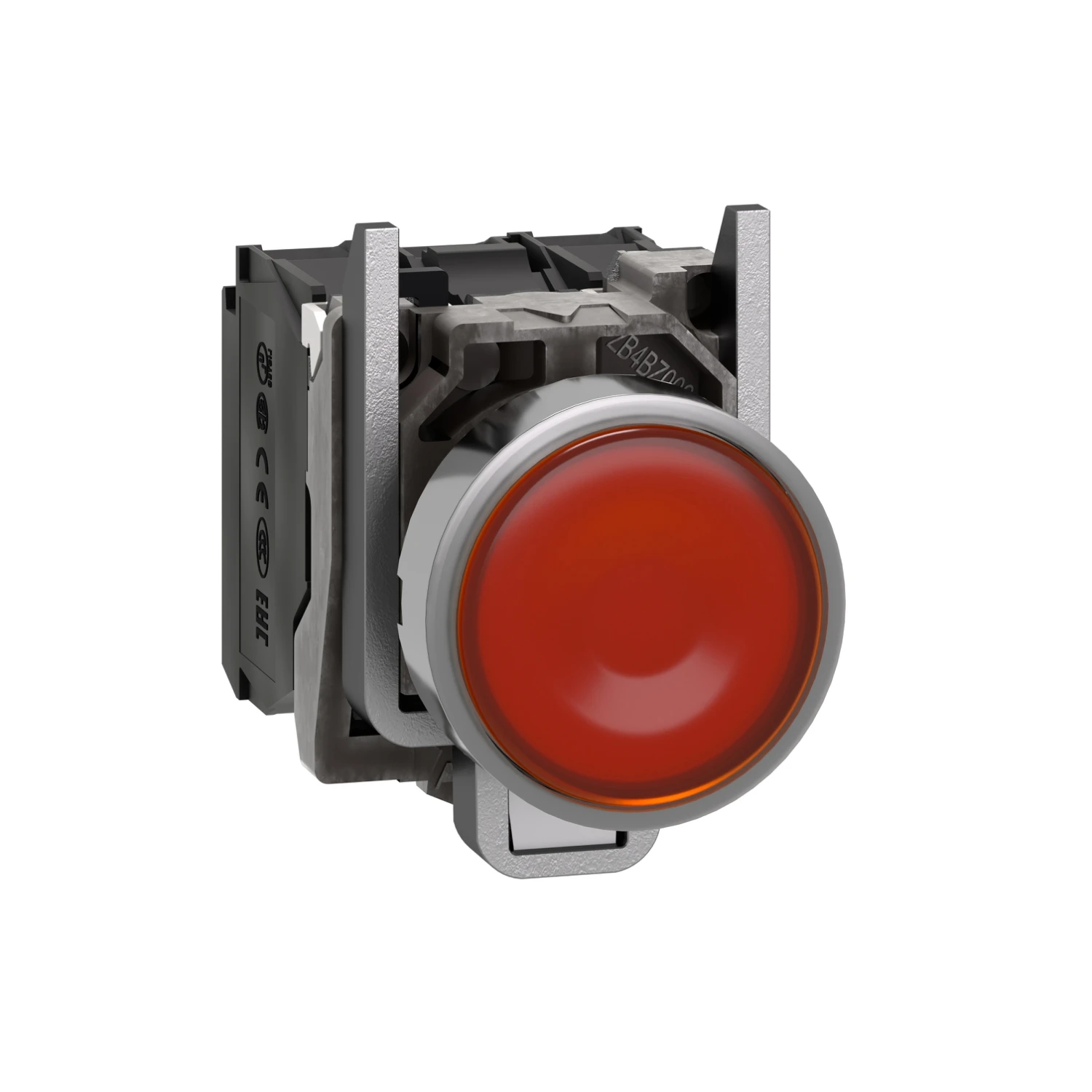

This Harmony XB4 illuminated modular orange push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. · · · This Harmony XB4 illuminated modular orange push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses an integral LED. · · It has a metal bezel. · · This illuminated push button provides an ergonomic and visual interface for controlling your machines. · · It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. · · It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.
Out of Stock
Description
Technical Specifications Technical Specifications Push button, complete Hole diameter 22.50 mm Number of command positions 1.00 Number of contacts as normally open contact 1.00 Number of contacts as change-over contact 0.00 Height opening – mm Supply voltage lamp 120.00 V Number of contacts as normally closed contact 1.00 Width opening – mm Spring-return Yes With front ring Yes Suitable for illumination Yes Switching function latching No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226406 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226169
