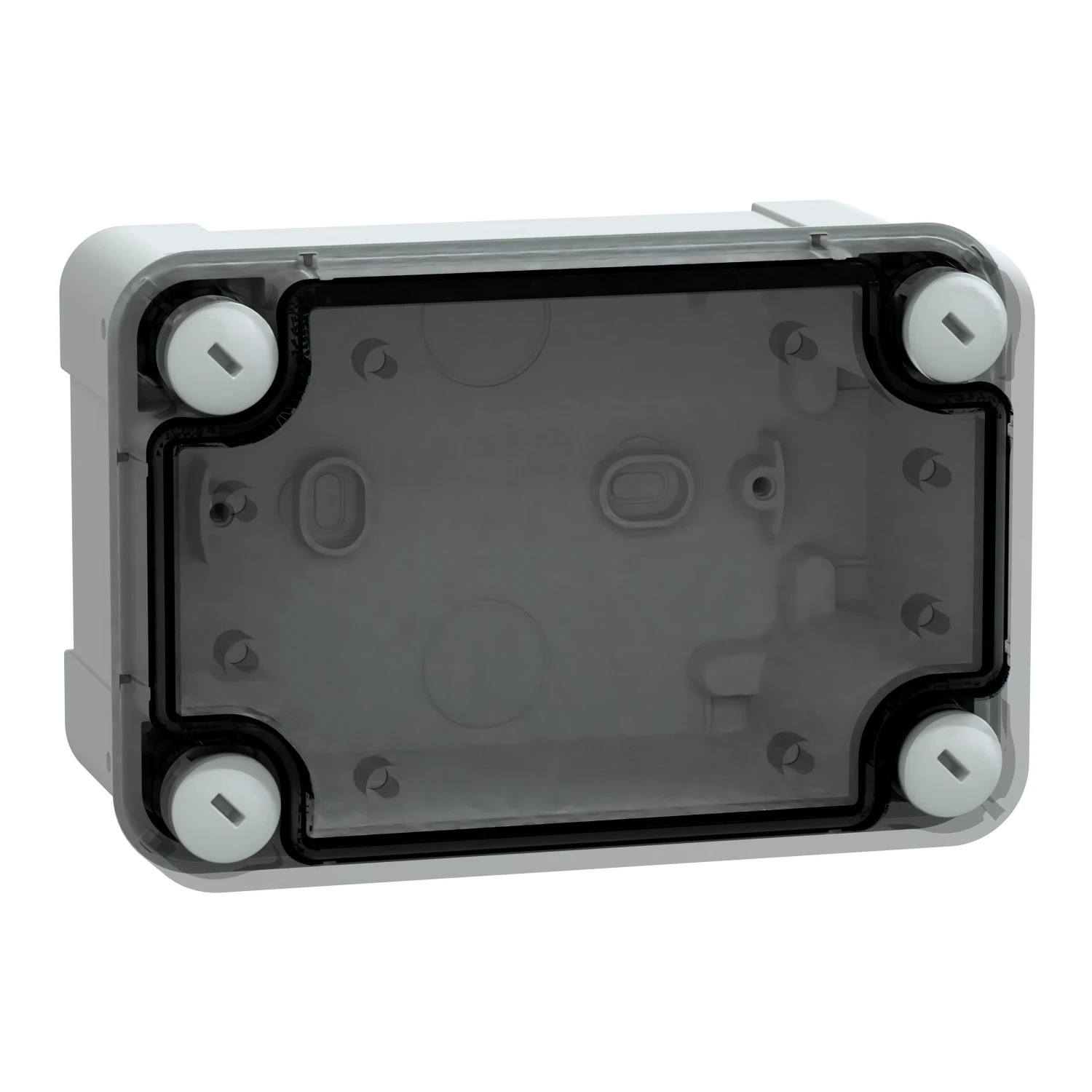

Schneider Electric PC Box IP66 IK08 RAL7035 Internal H125W80D65 External H138W93D72 Transp.Cover H20
£13.81 Incl. VAT
Thalassa TBP industrial PC box with transparent PC cover H20. Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C). · · · Thalassa TBP industrial PC box with transparent PC cover H20. · · Int is 125 x 80 x 65 mm. Ext is 138 x 93 x 72 mm. · · Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. · · Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. · · Polycarbonate made.
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Empty cabinet Height 138 mm Width 93 mm Depth 72 mm Width in number of modular spacings – RAL number 7035 Plate thickness door/cover – mm Nominal current (In) – A Recess depth 65 mm Plate thickness cabinet – mm Number of modules – Number of conduit inlets – Number of openings for flange plates – Internal depth 65 mm Number of rows – Suitable for outdoor use Yes With mounting plate No With lock No Extension possible Yes Transparent cover/door Yes Suitable for lightning protection No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
