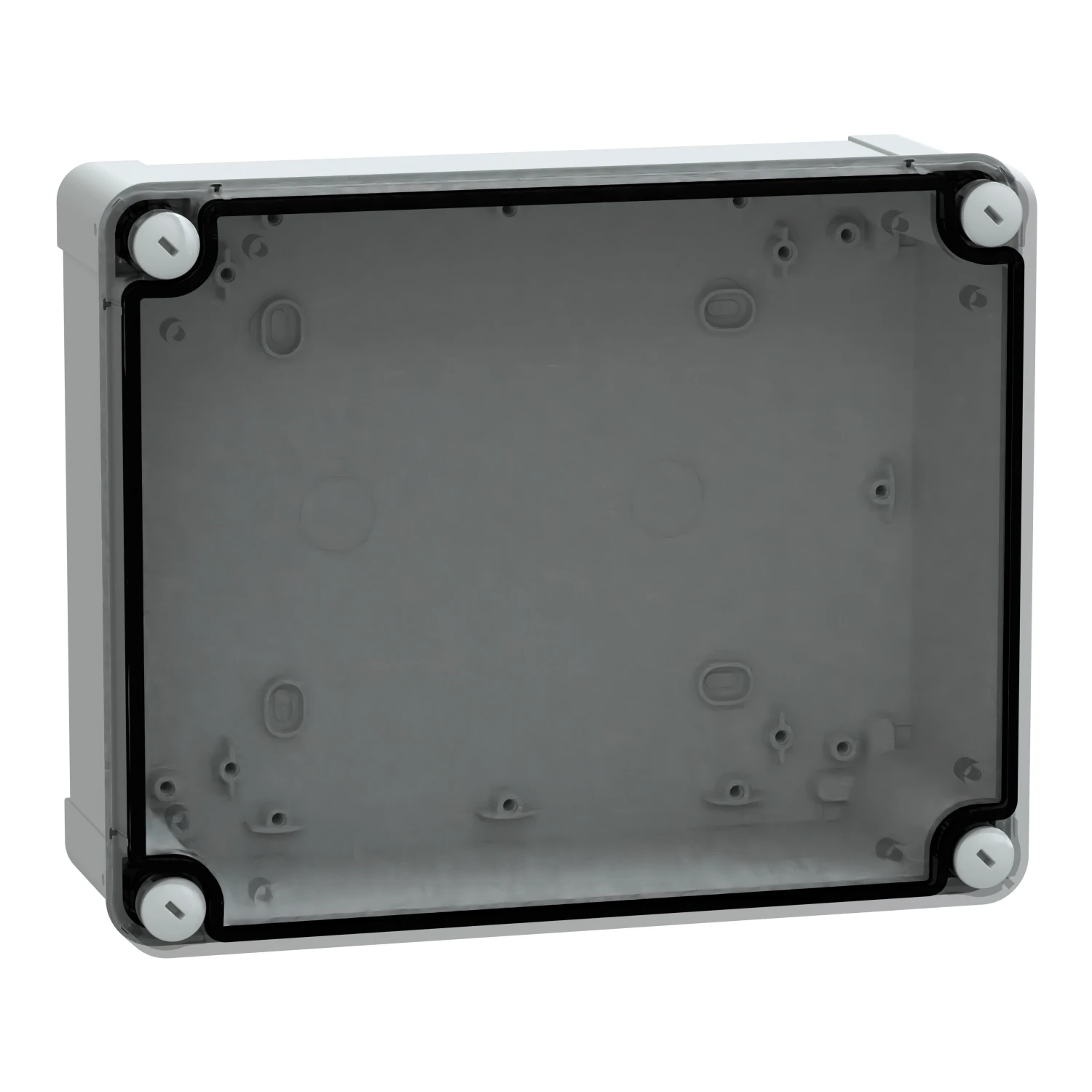

Schneider Electric PC Box IP66 IK08 RAL7035 Internal H225W175D80 External H241W194D87 Transp.Cover H20
£44.16 Incl. VAT
Thalassa TBP industrial PC box with transparent PC cover H20. Int is 225 x 175 x 80 mm. Ext is 241 x 194 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C). · · · Thalassa TBP industrial PC box with transparent PC cover H20. · · Int is 225 x 175 x 80 mm. Ext is 241 x 194 x 87 mm. · · Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. · · Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. · · Polycarbonate made.
Out of Stock
Description
Technical Specifications Technical Specifications Empty cabinet Width 194.00 mm Height 241.00 mm Width in number of modular spacings – Recess depth – mm Number of rows 0.00 Internal depth 80.00 mm Number of modules 0.00 Nominal current (In) – A Plate thickness cabinet 12.00 mm Plate thickness door/cover 12.00 mm Number of openings for flange plates 0.00 Depth 87.00 mm Number of conduit inlets 2.00 RAL number 7035.00 With mounting plate No Suitable for outdoor use Yes Extension possible No Transparent cover/door Yes With lock No Suitable for lightning protection Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192490
