Schneider Electric Powertag Nsx – 250A

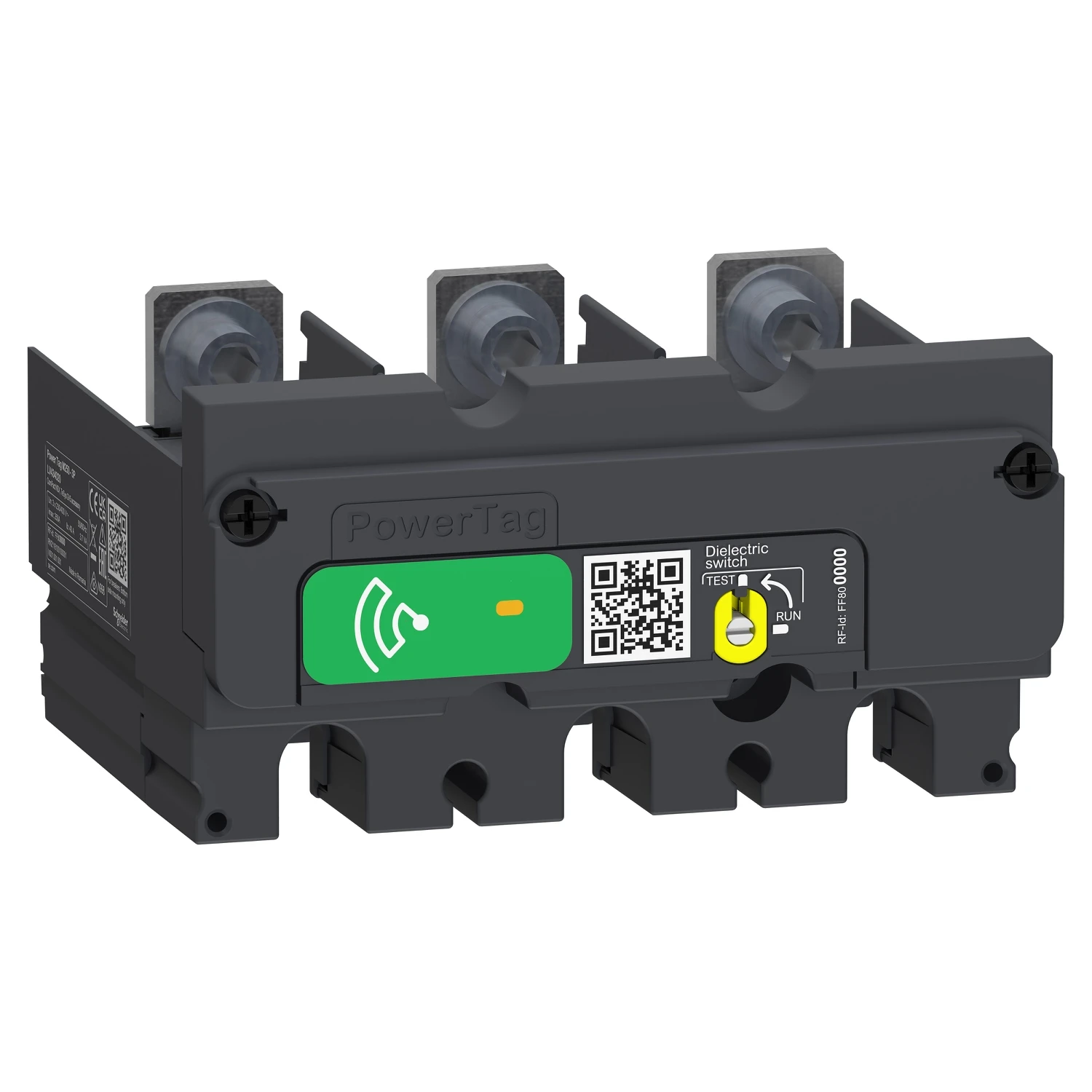

POWERTAG NSX – 250A 3P · · · This PowerTag NSX 250A is an energy sensor with wireless communication for 3P electrical networks. · · It is compatible with Compact NSX 100/160/250 and Compact NS 100/160/250. · · It provides capability to measure energy, power, voltages, currents, frequency and power factor according to IEC 61557-12 standard. · · It is able to detect voltage loss and to trigger alarms. · · The module is self-powered and is installed directly on the bottom side of the circuit breaker or Vigi add-on terminals. · · It can delivers useful data for monitoring and diagnosis of the associated circuit breaker through a Smartlink concentrator. · · It communicates wirelessly to Smartlink which can concentrate data for up to 20 PowerTag in the same panel and make them available over Ethernet network. · · PowerTag NSX is compatible with Acti9 Smartlink SI D and SI B for commercial and building applications. · · PowerTag NSX is compatible with Acti9 Smartlink EL D for small business applications. · · PowerTag NSX solution provides a complete knowledge of real time electrical values with a rich and accurate data transfer every 5 seconds.
