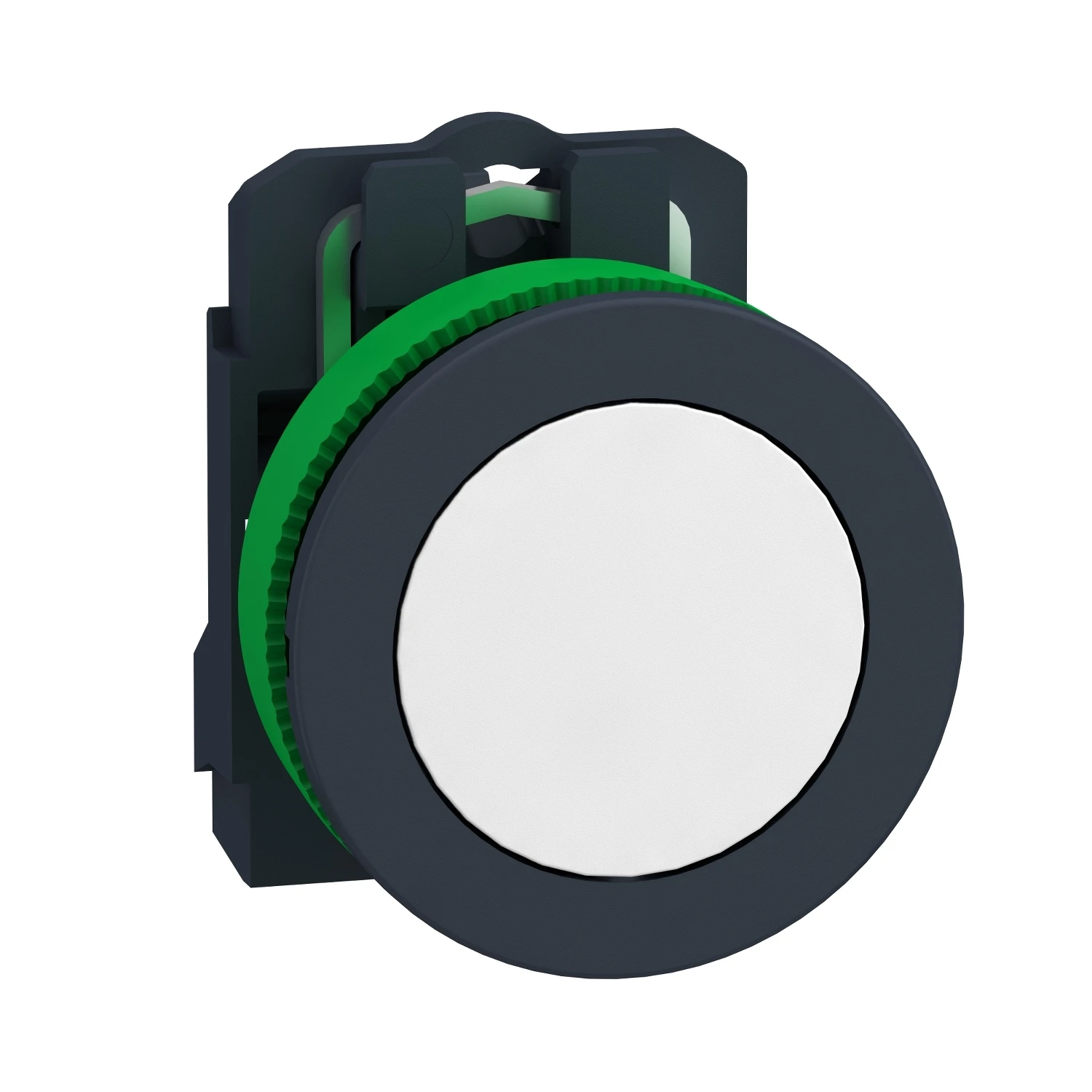

Schneider Electric Pushbutton Flush Mounted 1No Spring Return 30.5mm White

Description

Technical Specifications  Technical Specifications Push button, complete Material front ring Plastic Degree of protection (NEMA) 4X Construction type lens Round Colour front ring Black Colour button White Type of button Flat Degree of protection (IP rating) IP66 Type of electric connection Screw connection Supply voltage lamp – V Hole diameter 30.5 mm Width opening – mm Number of command positions 1 Number of contacts as normally closed contact 0 Number of contacts as change-over contact 0 Number of contacts as normally open contact 1 Height opening – mm With front ring Yes Switching function latching No Spring-return Yes Suitable for illumination No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2222725 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226169
