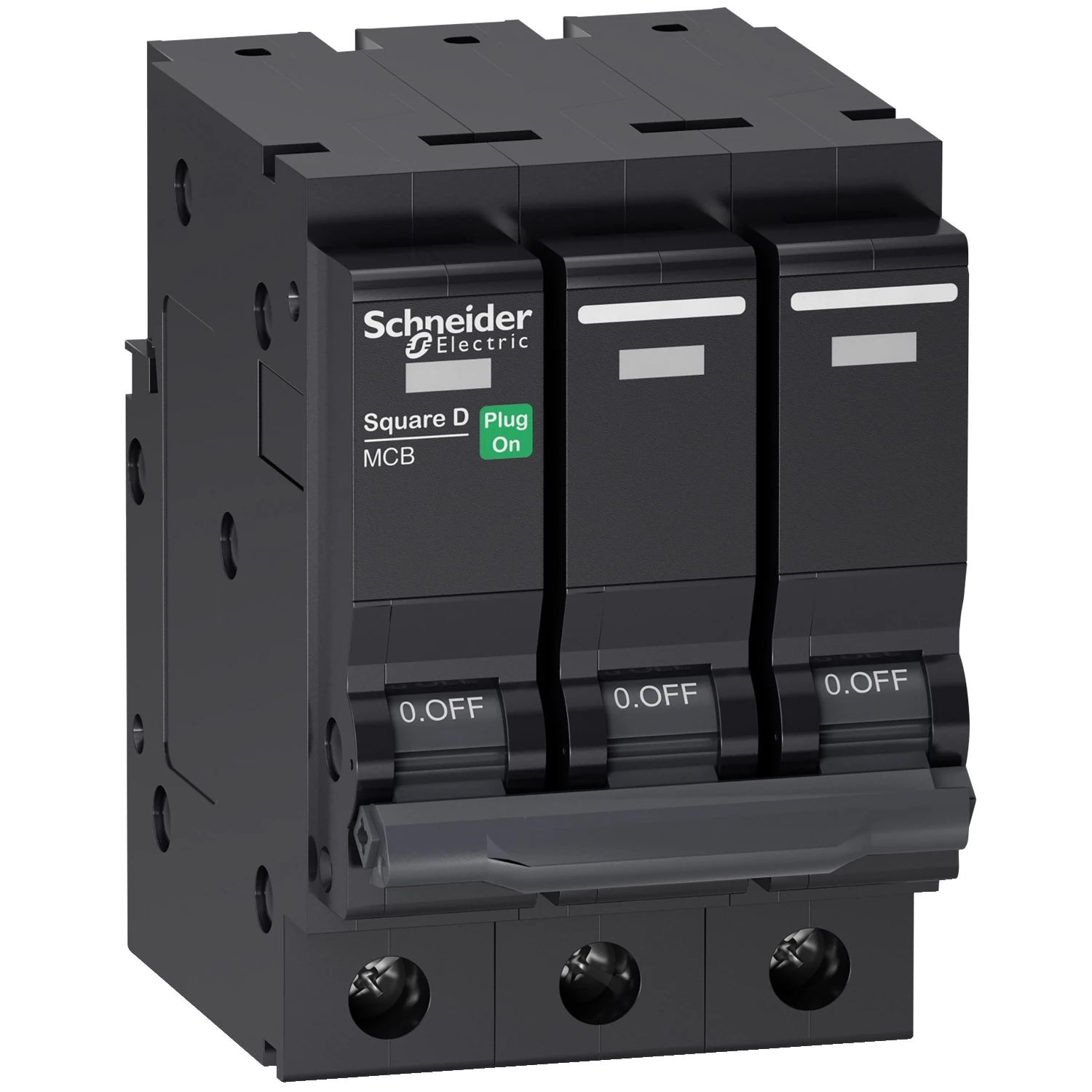

Schneider Electric QOvs, miniature circuit-breaker, 3p, C curve, 40A, 10kA
Schneider Electric QOvs, miniature circuit-breaker, 3p, C curve, 40A, 10kA
Schneider Electric QOvs, miniature circuit-breaker, 3p, C curve, 40A, 10kA - Image 2

Schneider Electric QOvs, miniature circuit-breaker, 3p, C curve, 40A, 10kA

£246.00 Incl. VAT

QO340VSC10 MCB TP Type C 40A 10kA. For use in LoadCentre QO boards. · · · This Square D product is a low voltage miniature circuit breaker (MCB). · · It is a 3P circuit breaker with 3 protected poles and 40A In rated current and C tripping curve. · · The Icn rated short circuit breaking capacity is up to 10000A at 240VAC or 415VAC conforming to EN/IEC 60898-1 standard. · · This product is compliant with EN/IEC 60898-1 standard. · · This miniature circuit breaker protects circuits against short circuit and overload current. · · The tripping upon fault is indicated by a red mechanical state indicator light on the front face of the circuit breaker. · · Operating Temperature -5C to +60C · · Plug-On Mounting · · It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC or 415VAC. The Ui rated insulation voltage is 500VAC.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: QO340VSC10 Categories: , , Brand: Product Code: 2500526488

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 40 A Recess depth 58.8 mm Rated insulation voltage Ui 500 V Rated voltage 415 V Width in number of modular spacings 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 3 Number of protected poles 3 Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Current limiting class 3 Over voltage category 4 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Frequency 50 – 60 Hz Connectable conductor cross section solid-core 2.5 – 35 mm² Connectable conductor cross section multi-wired 2.5 – 35 mm² Ambient temperature during operating 5 – 60 °C Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
