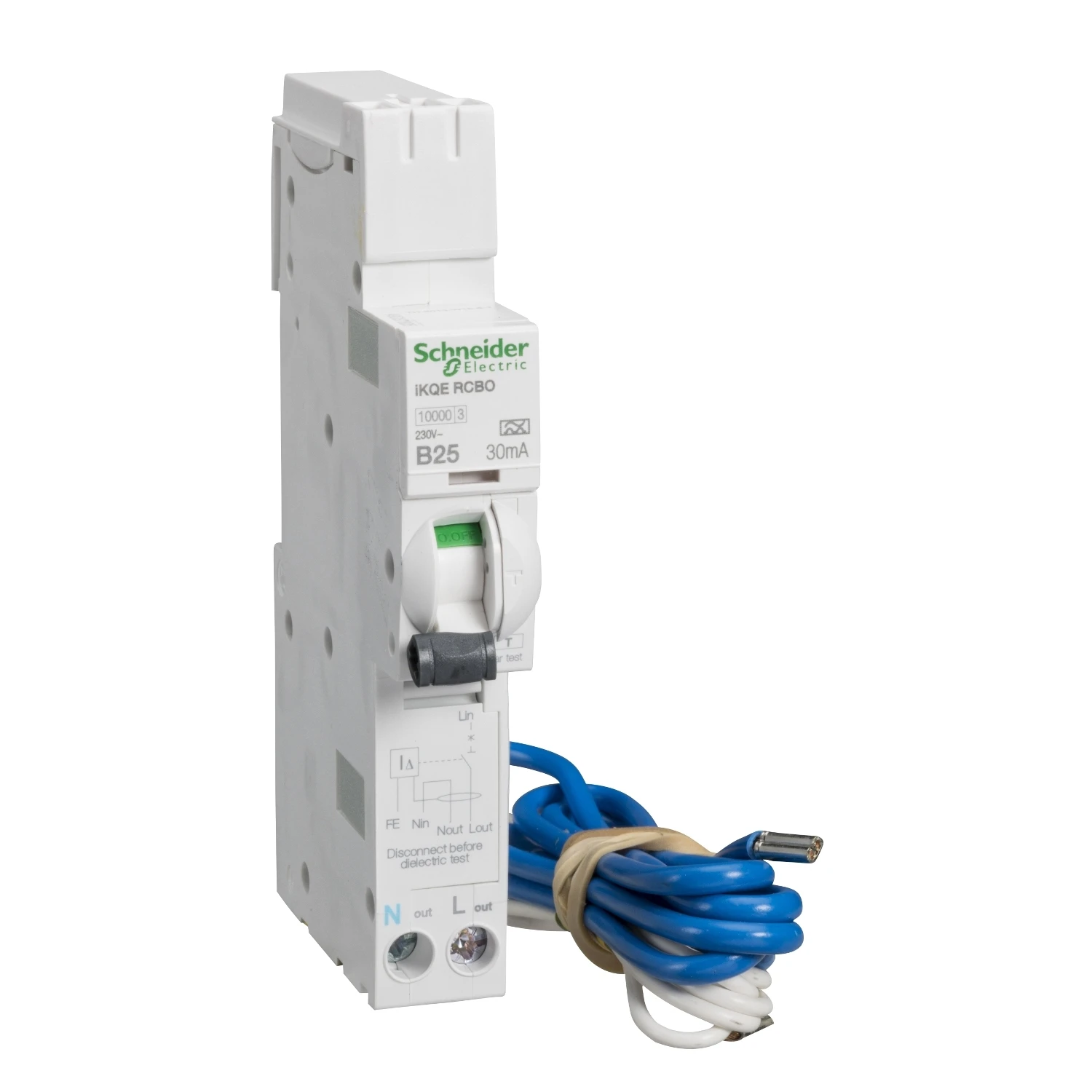

Schneider Electric RCBO SP Class A Type B 25A 30mA 10kA Plug-On
£75.10 Incl. VAT
The Schneider LoadCentre KQ SEE125B03 is a 25 amp 30 milliamp single pole RCBO. This Schneider LoadCentre KQ RCBO has a click-in busbar for speed of installation and guaranteed connection, has a 10kA breaking capacity and has a trip free mechanism that operates even when the toggle is locked on. The LoadCentre KQ MCB’s are lockable in the on or off position and is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · Compatible with Loadcentre KQ B Type boards · · Other RCBO options available · · Fast installation with click-in busbar · · C Curve · · 16mm Cable Capacity · · It can be fitted instead og a miniature circuit breaker for complete protection of one circuit. · · This product is compliant with BS EN 61009 standard. · · The Ue operational voltage is 150VAC to 230VAC.
Out of Stock
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Surge current capacity 0.25 kA Current limiting class 3 Rated short-circuit breaking capacity IEC 60947-2 – kA Rated fault current 0.03 A Number of protected poles 1 Number of poles (total) 2 Width in number of modular spacings 1 Rated insulation voltage Ui 400 V Over voltage category 4 Pollution degree 3 Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated impulse-withstand voltage (Uimp) – kV Rated short-circuit breaking capacity according to EN 61009 – kA Rated current 25 A Rated voltage 230 V Recess depth 70 mm Connectable conductor cross section solid-core 1 – 16 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating – – – °C Anti-nuisance tripping version No With interlocking device No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
