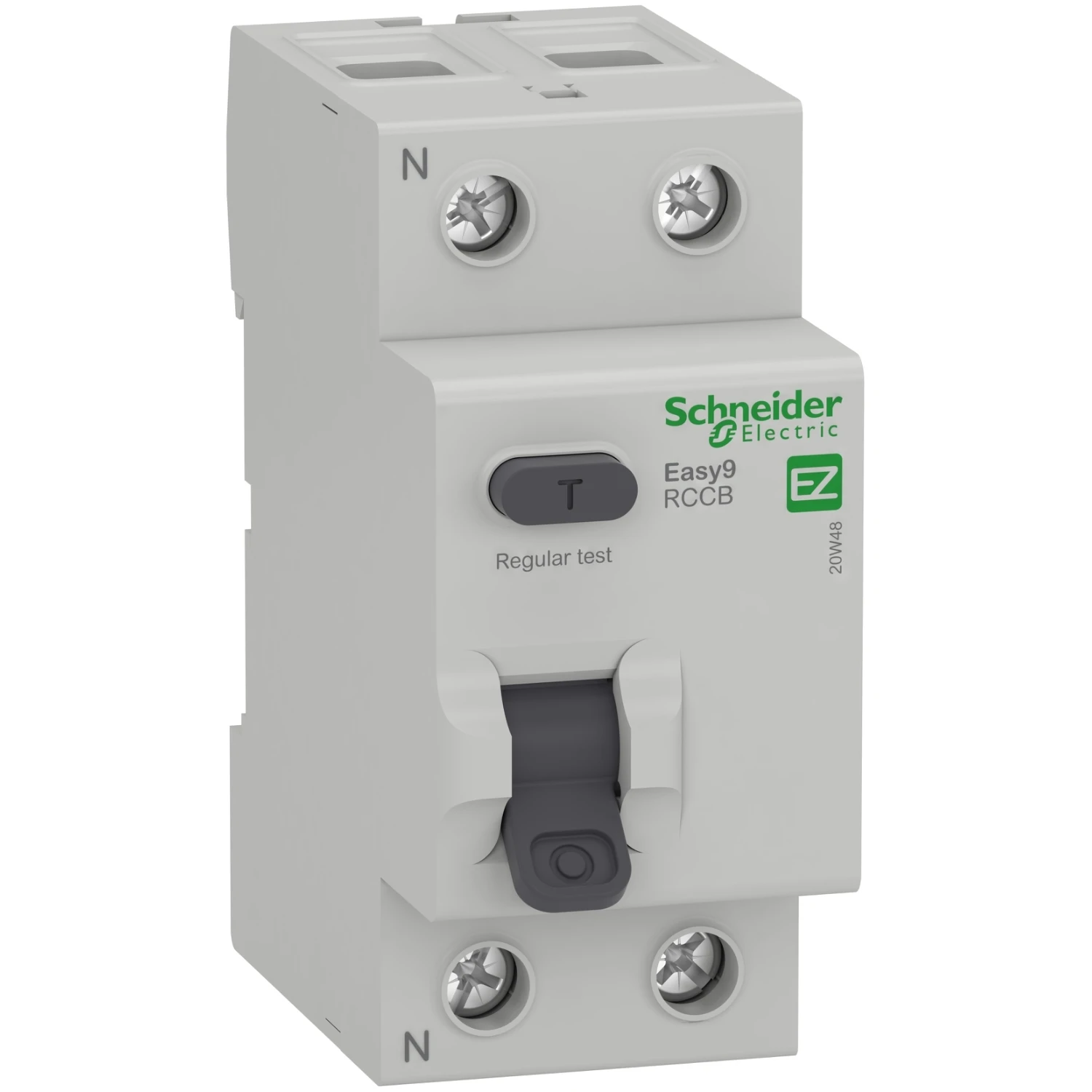

Schneider Electric RCCB Double Pole Class AC 63A 30Ma 2 Module
£22.87 Incl. VAT
The Schneider Electric EZ9R33263 is a 63A 30mA double pole AC-Type residual current circuit breaker that will fit any Schneider Electric Easy9 consumer unit. · · · Tripping in case of leakage current only. · · Positive contact indication · · Fault tripping indication on the front panel · · Several circuits when fitted upstream of a group of circuit breakers · · 30mA · · IP20 · · BSEN61008-1 Compliant · · Double Pole · · The electrical endurance is up to 2000 cycles. The mechanical endurance is up to 5000 cycles. · · The Ue operational voltage is 127VAC or 230VAC.
Out of Stock
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) Recess depth 45 mm Number of poles 2 Pollution degree 2 Rated voltage 230 V Short-circuit breaking capacity (Icw) 3 kA Surge current capacity 0.25 kA Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 2 Rated current 63 A Rated fault current 30 A Rated insulation voltage Ui 440 V Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -5 – 60 °C Selective protection No Additional equipment possible No Short-time delayed tripping No With interlocking device No · Technical Data Sheet – Click to Download
