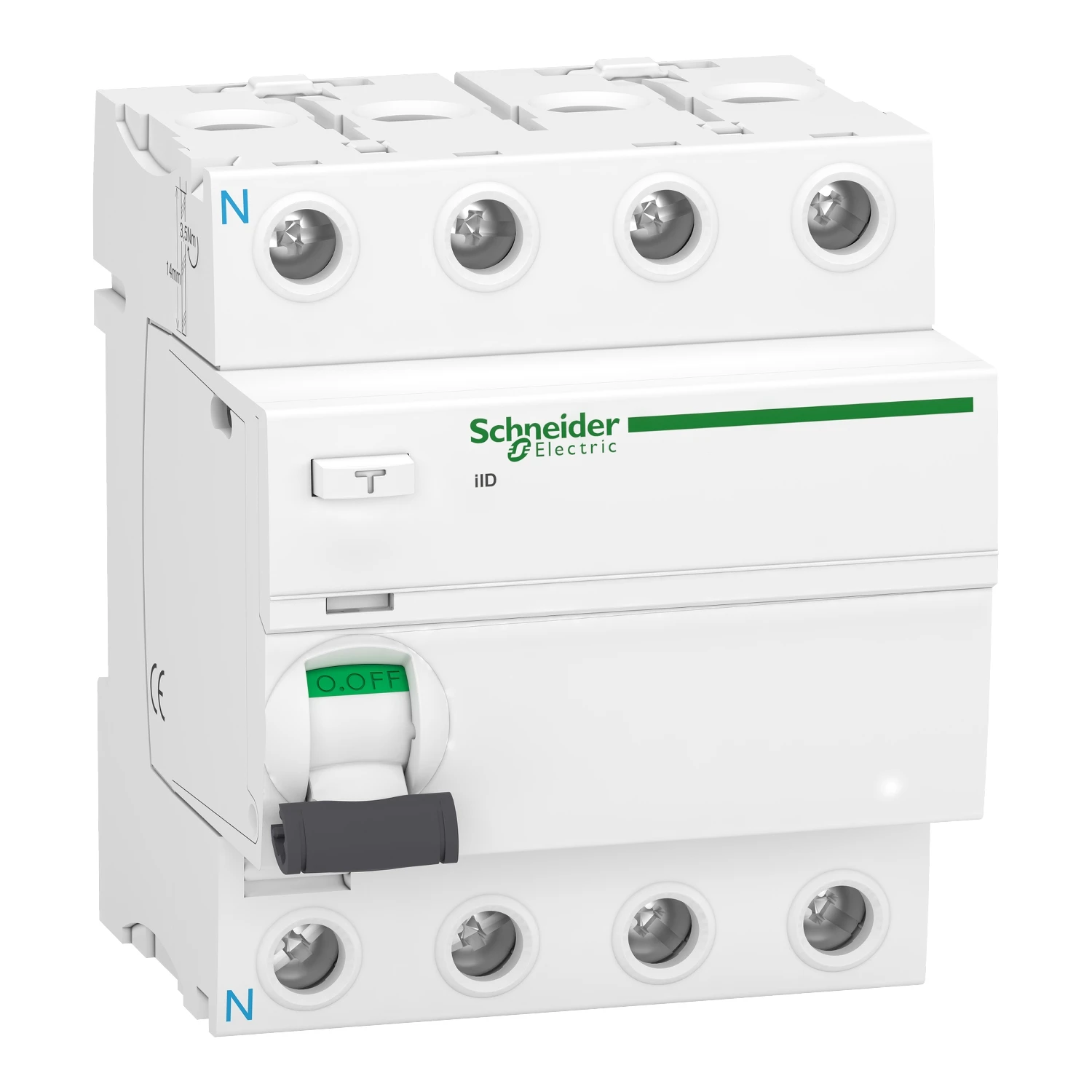

Schneider Electric RCD Ikq Four Pole 80A 30Ma
Schneider Electric RCD Ikq Four Pole 80A 30Ma
Schneider Electric RCD Ikq Four Pole 80A 30Ma - Image 2

Schneider Electric RCD Ikq Four Pole 80A 30Ma

£272.48 Incl. VAT

The Schneider LoadCentre KQ SE80034 is a 4 pole 80 amp 30 milliamp main RCCB incomer, designed to fit any LoadCentre KQ distribution type B boards. · · · Compatible with Loadcentre KQ B Type boards · · Other RCCB options available · · Green premium product · · Fixed mounting mode, DIN rail support · · BS EN 61008 · · This product is compliant with BS EN 61008 standard. · · The Ue operational voltage is 400VAC.

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SED80034 Categories: , , Brand: Product Code: 2500592268

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Short-circuit breaking capacity (Icw) – kA Pollution degree 2 Surge current capacity 0.25 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of poles 4 Rated voltage 400 V Recess depth 75 mm Rated current 80 A Width in number of modular spacings 4 Rated insulation voltage Ui 500 V Rated fault current 30 A Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -5 – 60 °C Selective protection No Additional equipment possible Yes Short-time delayed tripping No With interlocking device No · Technical Data Sheet – Click to Download
