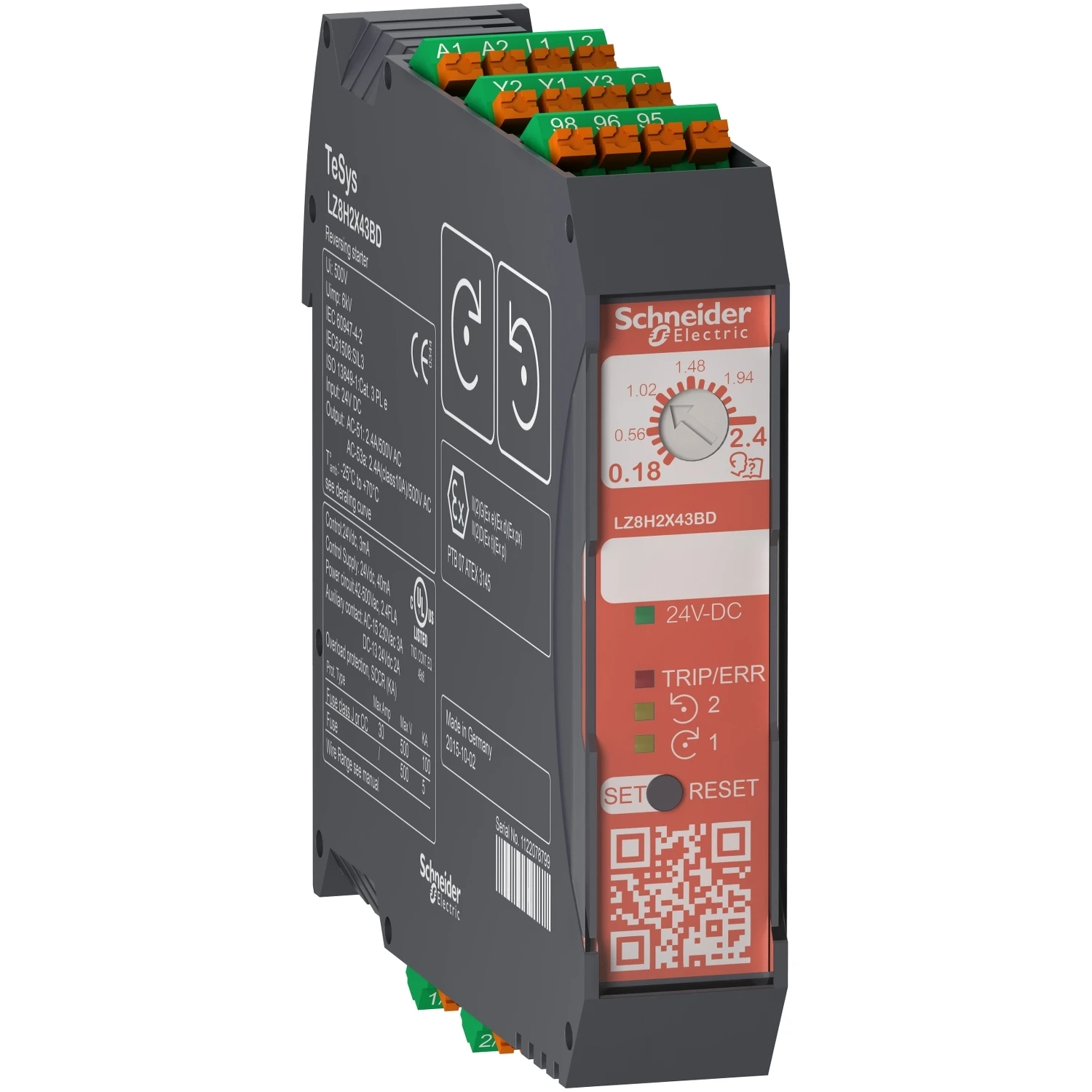

Schneider Electric Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Sp
Schneider Electric Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Sp
Schneider Electric Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Sp - Image 2

Schneider Electric Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Sp

£183.07 Incl. VAT

Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Spring. range: TeSys – product name: TeSys H – device short name: LZ8H – product or component type: reversing ultra-compact starter – poles description: 3P – [Ie] rated operational current: 2.4 A at 500 V AC-51, 2.4 A at 500 V AC-51 mounting side by side, 2.4 A at 500 V AC-53A, 2.4 A at 500 V AC-53A mounting side by side – motor power kW: 0.37 kW at 220 V AC with power factor : 0.65, 0.37 kW at 230 V AC with power factor : 0.65, 0.75 kW at 380 V AC with power factor : 0.65, 0.75 kW at 400 V AC with power factor : 0.65, 0.75 kW at 415 V AC with power factor : 0.65, 0.75 kW at 440 V AC with power factor : 0.65, 1.1 kW at 500 V AC with power factor : 0.65 – motor power hp: 0.5 hp at 200 V AC, 0.5 hp at 230 V AC, 1 hp at 460 V AC – safety level: PL = e conforming to ISO 13849-1 stop function, SIL 2 conforming to IEC 61508-1 motor protection, SIL 3 conforming to IEC 61508-1 stop function – safety reliability data: MTTFd = 447 years motor protection, MTTFd = 517 years stop function, PFHd = 2.67E-9 1/h stop function, SFF = 99 % motor protection, SFF = 99 % stop function. · · · TeSys H ultra compact reverse safety starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). · · The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. · · It provides control for 2 directions of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. · · To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. · · With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LZ8H2X43BD Categories: , Brand: Product Code: 2500893207

Description

Technical Specifications  Technical Specifications Motor starter/Motor starter combination Width 22.6 mm Height 107.5 mm Depth 113.4 mm Number of command positions 0 Rated operation power at AC-3, 400 V 0.75 kW Number of auxiliary contacts as normally open contact 0 Number of indicator lights 4 Ambient temperature, upper operating limit 70 °C Number of auxiliary contacts as normally closed contact 0 Rated conditional short-circuit current, type 1, 480 Y/277 V – A Rated power, 575 V, 60 Hz, 3-phase – kW Rated conditional short-circuit current, type 1, 600 Y/347 V – A Rated conditional short-circuit current, type 2, 230 V – A Rated operation power at AC-3, 230 V, 3-phase 0.37 kW Rated conditional short-circuit current, type 2, 400 V – A Rated power, 460 V, 60 Hz, 3-phase 0.75 kW Rated operation current at AC-3, 400 V 2.4 A Rated operation current Ie 2.4 A Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Overload release current setting 0.18 – 2.4 A Rated control supply voltage at DC 24 – 24 V Suitable for emergency stop Yes Rail mounting possible Yes With short-circuit release No Supporting protocol for PROFINET IO No Supporting protocol for LON No Supporting protocol for SERCOS No Supporting protocol for other bus systems No Supporting protocol for INTERBUS-Safety No Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for MODBUS No Supporting protocol for ASI No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for SUCONET No Supporting protocol for PROFINET CBA No With transformer No Supporting protocol for TCP/IP No Supporting protocol for PROFIBUS No Temperature compensated overload protection Yes External reset possible Yes With fuse No Supporting protocol for SafetyBUS p No Supporting protocol for DeviceNet Safety No Supporting protocol for PROFIsafe No Supporting protocol for EtherNet/IP No Supporting protocol for Foundation Fieldbus No Supporting protocol for AS-Interface Safety at Work No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205369
