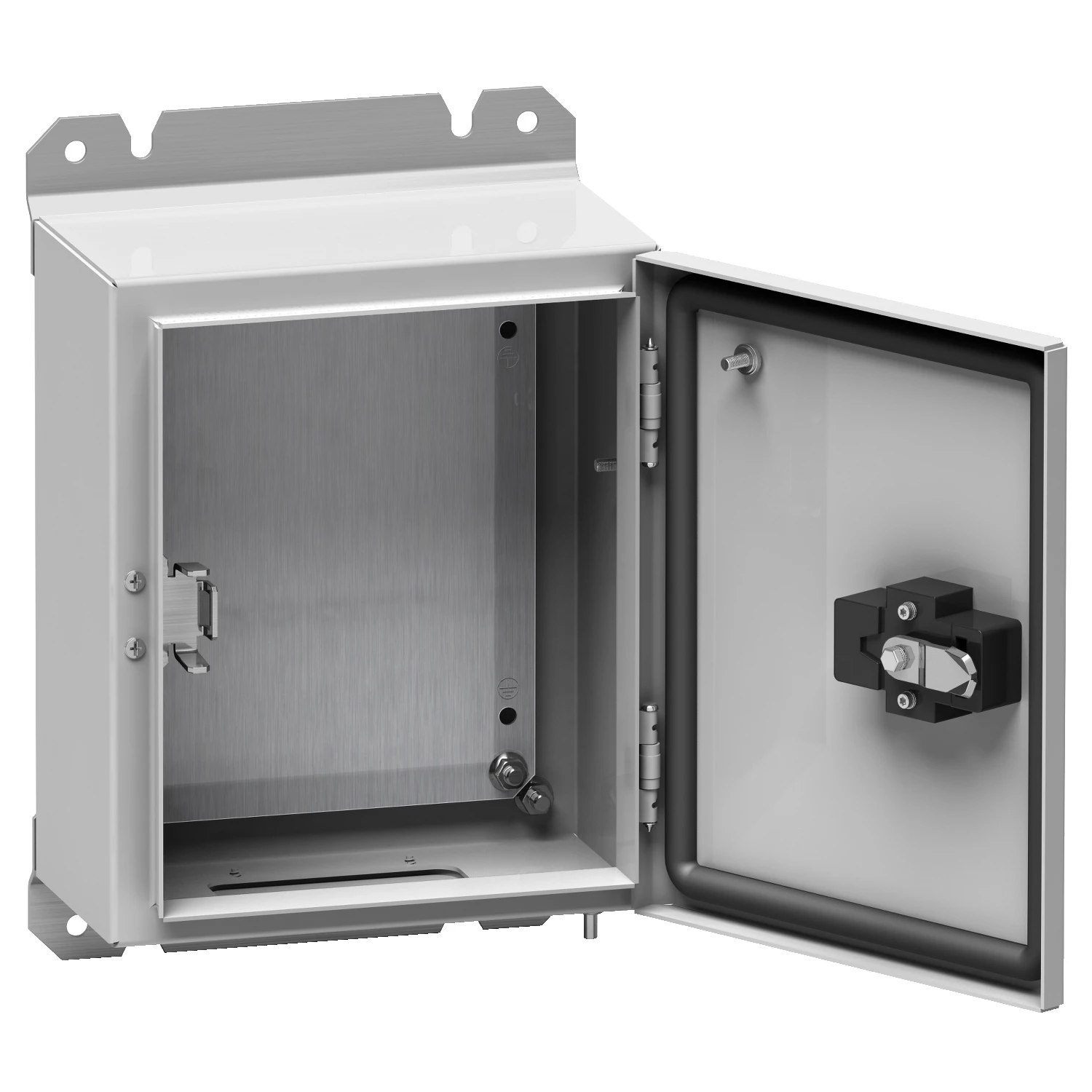

Schneider Electric S3D Enclosure

Description

Technical Specifications  Technical Specifications Enclosure/switchgear cabinet Colour Grey Material Steel Impact resistance (IK rating) IK10 Surface finish Powder coated Width 600 mm Degree of protection (IP rating) IP65 RAL number 7035 Height 800 mm Number of doors 1 Depth 300 mm Number of connector holes 0 Number of locks 1 Max. permissible load of the enclosure according to IEC 62208 – N Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 – W Max. permissible load of the door(s) according to IEC 62208 – N Max. permissible load of the mounting plate according to IEC 62208 – N With mounting plate Yes Suitable for wall built-in No Suitable for wall mounting Yes Pre-stamping No Mounting plate depth-adjustable No With cover No Pitched roof No With ventilation door No Suitable for metrical mounting Yes Couplable No EMC-version No Freestanding No Pole fastening No Intermediate mounting No Corner model No With glazed door No With backside door No Floor standing wall model Yes With door Yes Transparent cover No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205357
