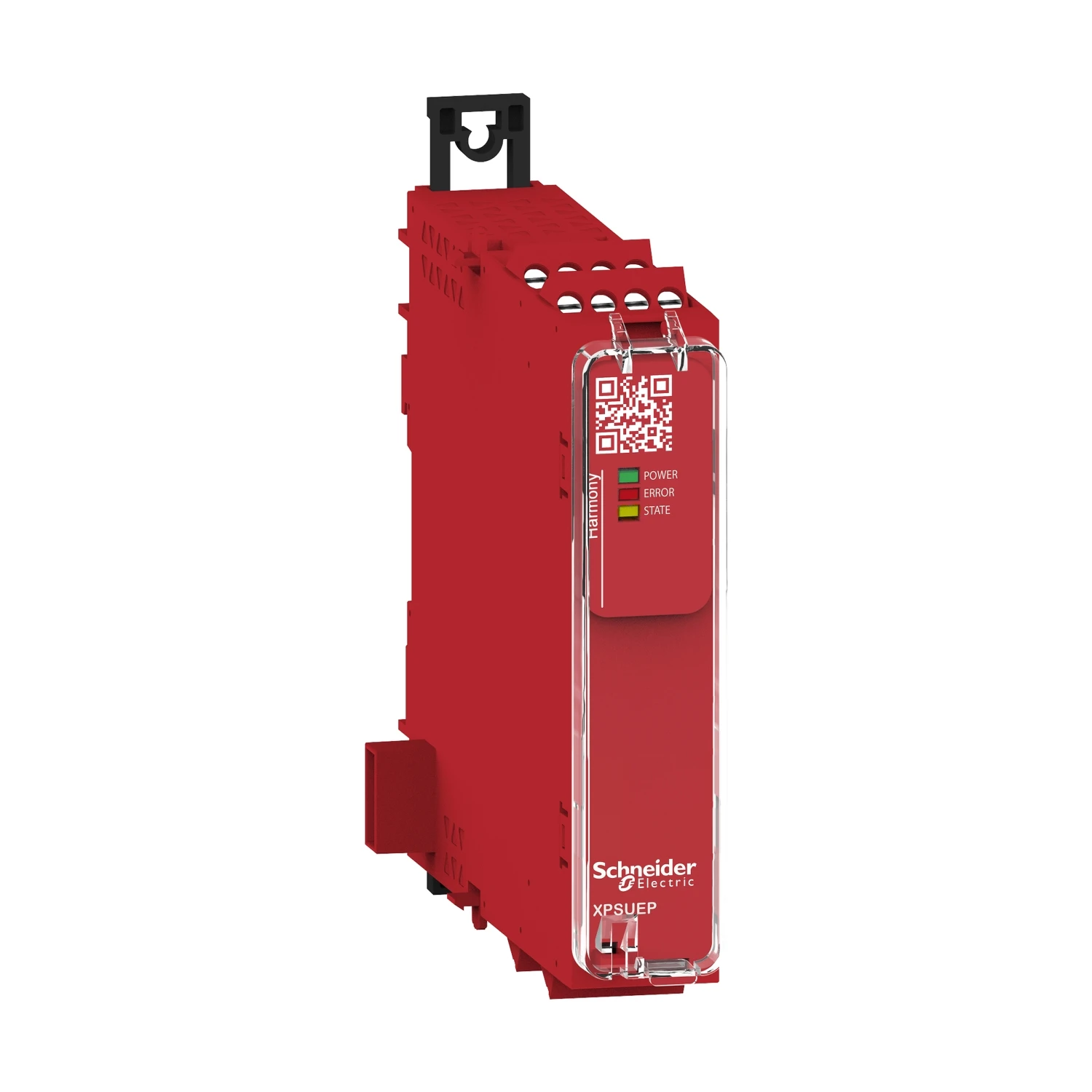

Schneider Electric Safety Module Uep Cat.4 24V Screw
£235.34 Incl. VAT
Safety module UEP Cat.4 24V scre · · · Start input Follows the host module · · Safety inputs 0, Extension bus · · Safety outputs 4 NO + 2 single NC · · Connection Connection to base module by connector · · Diagnostic outputs 1 solid-state diagnostic output with complete status information · · Connection type Removable terminal blocks · · Terminals 16 · · Module width 22.5 mm/0.886 in. · · Maximum achievable safety level · · PL e/Category 4 conforming to ISO 13849-1
Out of Stock
Description
Technical Specifications Technical Specifications Device for monitoring of safety-related circuits Width 22.5 mm Depth 120 mm Height 100 mm Number of outputs, safety related, undelayed, with contact 6 Number of outputs, safety related, delayed, with contact 0 Number of outputs, safety related, undelayed, semiconductors 0 Number of outputs, safety related, delayed, semiconductors 0 Number of outputs, signalling function, undelayed, with contact 0 Number of outputs, signalling function, delayed, with contact 0 Number of outputs, signalling function, undelayed, semiconductors 0 Number of outputs, signalling function, delayed, semiconductors 0 Release-delay 0 – 0 s With approval according to UL Yes With start input No With feedback circuit No With muting function No Suitable for monitoring of magnetic switches No Suitable for monitoring of proximity switches No Suitable for monitoring of emergency-stop circuits No Suitable for monitoring of optoelectronic protection equipment No Suitable for monitoring of position switches No Suitable for monitoring of tactile sensors No Suitable for monitoring of valves No With detachable clamps Yes Rail mounting possible Yes With approval for BG BIA No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192655
