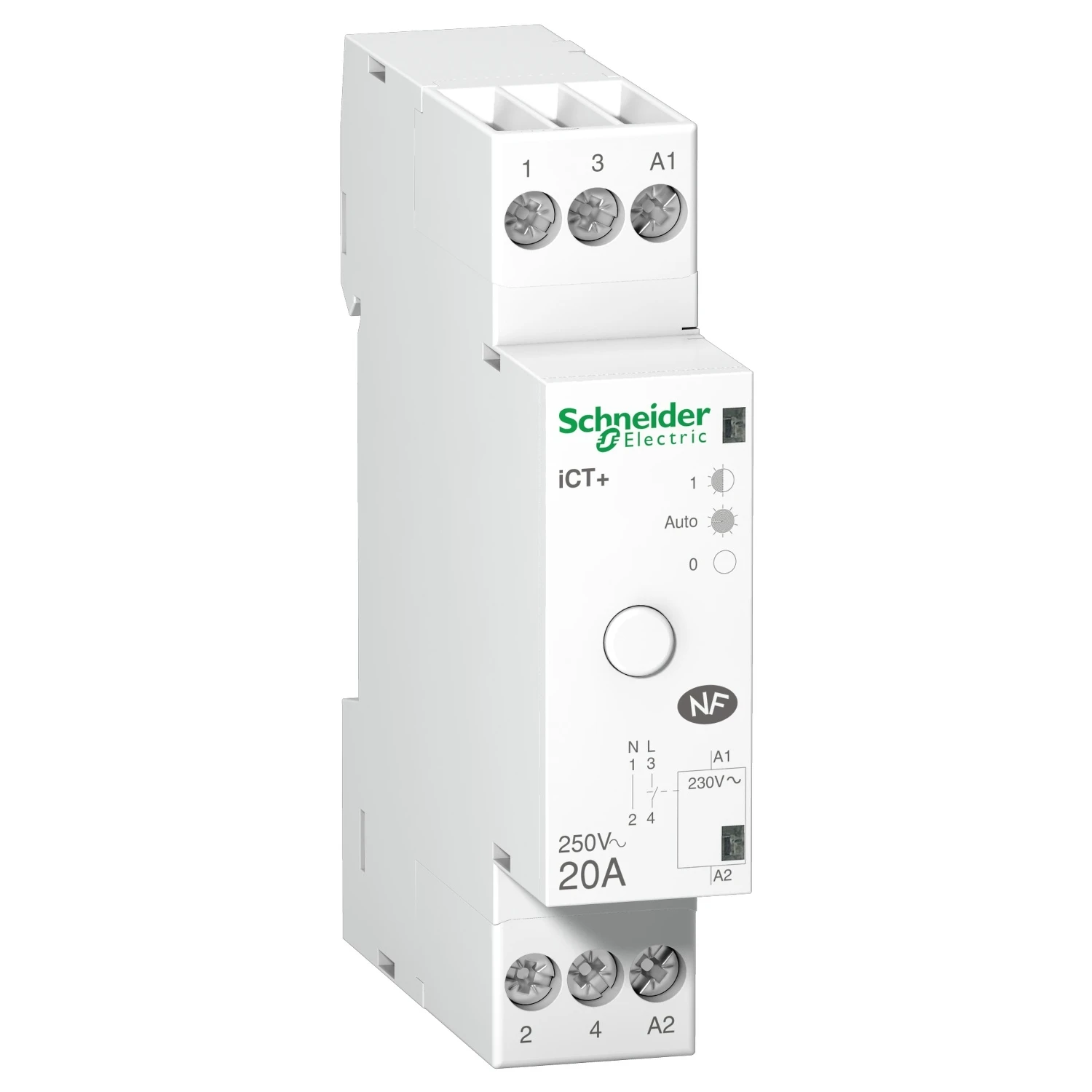

Schneider Electric Schneider Ict Plus Hc 20A 1P Uc 230Vac
Schneider Electric Schneider Ict Plus Hc 20A 1P Uc 230Vac
Schneider Electric Schneider Ict Plus Hc 20A 1P Uc 230Vac - Image 2

Schneider Electric Schneider Ict Plus Hc 20A 1P Uc 230Vac

£155.50 Incl. VAT

ICT PLUS HC 20A 1P UC 230VAC CONTACTOR · · · This Acti9 iCT+ is a modular silent contactor. · · It is a 1P remote and manual control device with 1 normally open contact. · · The rated current is 20A for AC-7a and 20A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC. · · It is especially accurate for LED lighting control thanks to its crossing technology. · · This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9C15031 Category: Brand: Product Code: 2501225963

Description

Technical Specifications  Technical Specifications Contactor for distribution board installation Recess depth 43.5 mm Number of contacts as normally open contact 1 Max. load fluorescent lamp (parallel compensated) 3700 VA Rated operation current 20 A Number of contacts as normally closed contact 0 Max. load fluorescent lamp (Duo circuit) – VA Max. incandescent lamp load 3700 W Max. load fluorescent lamp 3700 VA Rated operating voltage 250 – 250 V Rated excitation voltage 230 – 230 V Slider for hand switch Yes Additional equipment possible No · Technical Data Sheet – Click to Download
