Schneider Electric Spacial S3DB H300xW600xD150. IP66, IK10, RAL7035. No
Awaiting product image

Schneider Electric Spacial S3DB H300xW600xD150. IP66, IK10, RAL7035. No

£179.66 Incl. VAT

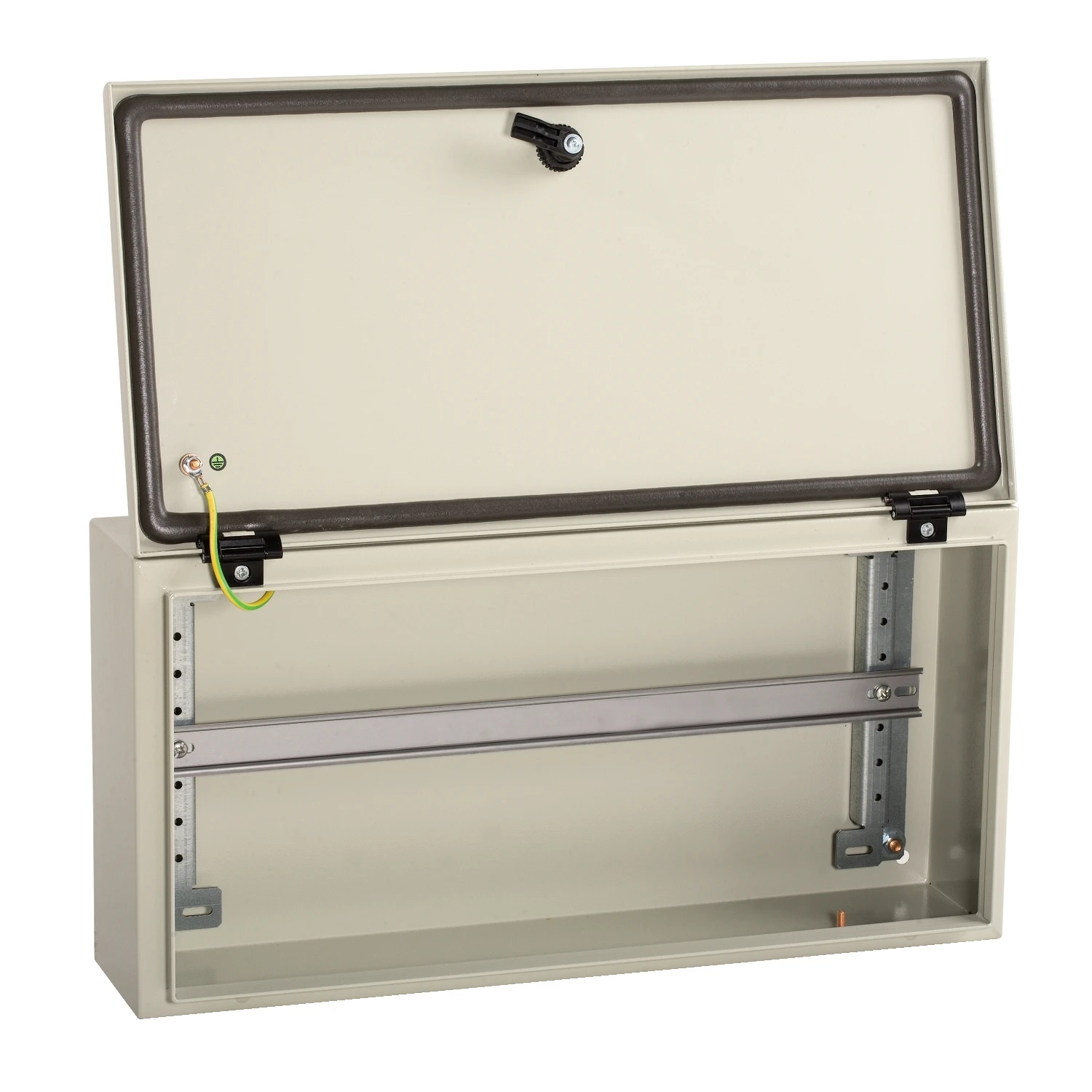

Spacial S3DB H300xW600xD150. IP66, IK10, RAL7035. No. range: Spacial – product name: Spacial S3DB – device application: terminal application – product or component type: compact enclosure – enclosure nominal height: 300 mm – enclosure nominal width: 600 mm – enclosure nominal depth: 150 mm – mounting plate description: without mounting plate – type of gland plate: without gland plate – installation accessory type: horizontal or vertical position, wall-mounting – product destination: for equipping with terminal – device composition: body 1, door 1, lock 1.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NSYS3DB3615 Categories: , , Brand: Product Code: 2500346102

Description

Technical Specifications  Technical Specifications Enclosure/switchgear cabinet Colour Grey Material Steel Impact resistance (IK rating) IK10 Degree of protection (NEMA) 4X Degree of protection (IP rating) IP66 Surface finish Powder coated Width 600 mm Height 300 mm RAL number 7035 Number of doors 1 Number of locks 1 Depth 150 mm Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 – W Number of connector holes 0 Max. permissible load of the enclosure according to IEC 62208 250 N Max. permissible load of the door(s) according to IEC 62208 50 N Max. permissible load of the mounting plate according to IEC 62208 250 N Suitable for metrical mounting No Pitched roof No With glazed door No Pole fastening Yes With ventilation door No With backside door No Pre-stamping No Suitable for wall built-in No Mounting plate depth-adjustable No EMC-version No With mounting plate No Suitable for wall mounting Yes With cover No Freestanding No Couplable No Transparent cover No Floor standing wall model No Intermediate mounting No Corner model No With door Yes · Technical Data Sheet – Click to Download
