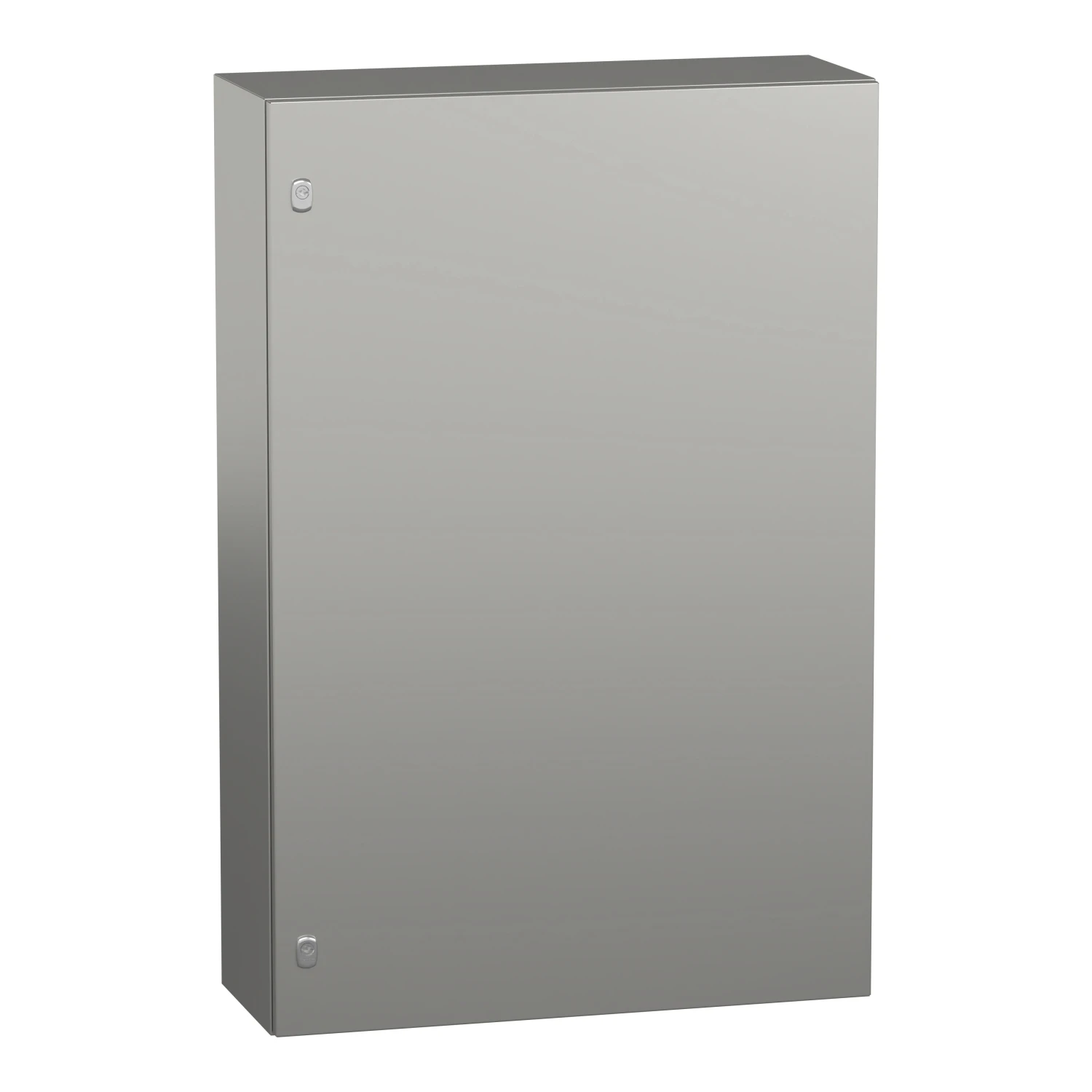

Schneider Electric SPACIAL S3X stainless 316L, Scotch Brite® finish, H1200xW800xD300mm.
£2,657.35 Incl. VAT
SPACIAL S3X stainless 316L, Scotch Brite® finish, H1200xW800xD300mm.. range: Spacial – product name: Spacial S3X – device application: multi-purpose – product or component type: compact enclosure – enclosure nominal height: 1200 mm – enclosure nominal width: 800 mm – enclosure nominal depth: 300 mm – device composition: 1 body, 1 door, 1 reinforcement frame drilled ( door ), 2 lock ( door ).
Out of Stock
Description
Technical Specifications Technical Specifications Enclosure/switchgear cabinet Degree of protection (IP rating) IP55 Material Stainless steel Impact resistance (IK rating) IK10 Degree of protection (NEMA) 12 Height 1200 mm Material qualifier Stainless steel 316 Colour Stainless steel Number of doors 1 Number of locks 1 Number of connector holes 0 Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 – W Max. permissible load of the enclosure according to IEC 62208 50 N Max. permissible load of the door(s) according to IEC 62208 50 N Max. permissible load of the mounting plate according to IEC 62208 250 N Depth 300 mm RAL number 7035 Width 800 mm EMC-version No Mounting plate depth-adjustable No With mounting plate No Suitable for wall mounting Yes With ventilation door No With backside door No Pole fastening No Pre-stamping No Suitable for wall built-in No With cover No Suitable for metrical mounting Yes Freestanding No Couplable No Pitched roof No With glazed door No Transparent cover No Floor standing wall model Yes Intermediate mounting No Corner model No With door Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2226153
