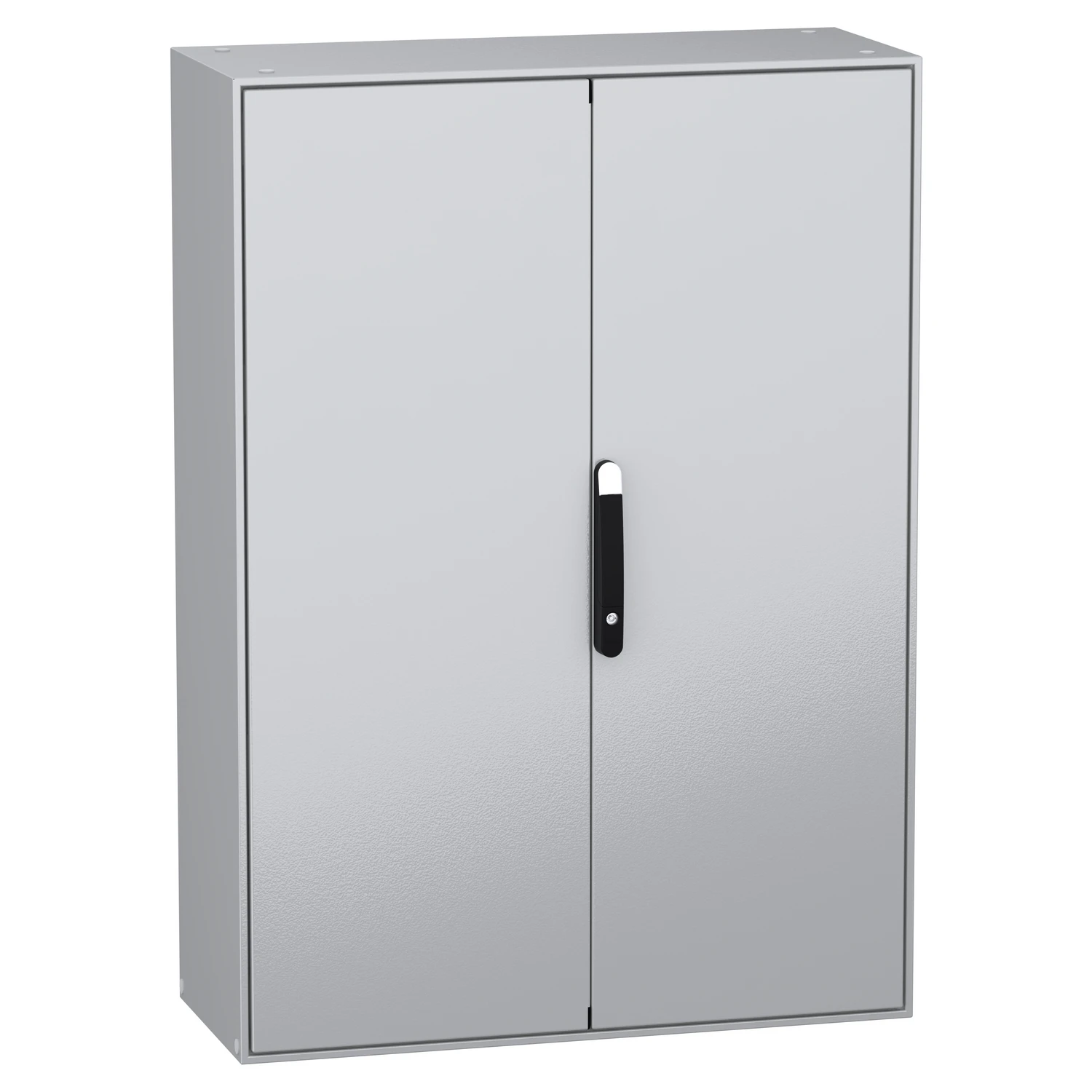

Schneider Electric Spacial SM Compact Enclosure with Mounting Plate 1400x1200x400mm

Spacial SM compact enclosure with mounting plate, 1400x1200x400mm. range: Spacial – product name: Spacial SM – product or component type: compact enclosure – device application: multi-purpose – installation accessory type: floor-standing – device composition: 1 blocking system for left door, 1 body, 1 cable gland plate, 1 locking system with handle for door, 1 mounting plate, 2 door, 4 mounting plate bracket – removable parts: door fixed by screws for hinge, mounting plate bracket fixed by screws, mounting plate fixed by screws for mounting plate bracket – enclosure nominal height: 1400 mm – enclosure nominal width: 1200 mm – enclosure nominal depth: 400 mm. · · · Floor standing steel enclosure, made from a one single piece metal sheet, folded and welded on the corners for high robustness · · The steel enclosures – Spacial SM are capable of withstanding 600kg distributed in their volume · · Body: sheet steel with a thickness of 1.5 mm. · · Door: sheet steel with a thickness of 1.8 mm. · · Coating: epoxy-polyester paint, structured finish, in grey RAL 7035 · · Degree of protection · · IP 55 in accordance to IEC 60529 · · IK 10 (IK 08 for transparent door) in accordance to IEC 62262 · · Certifications
