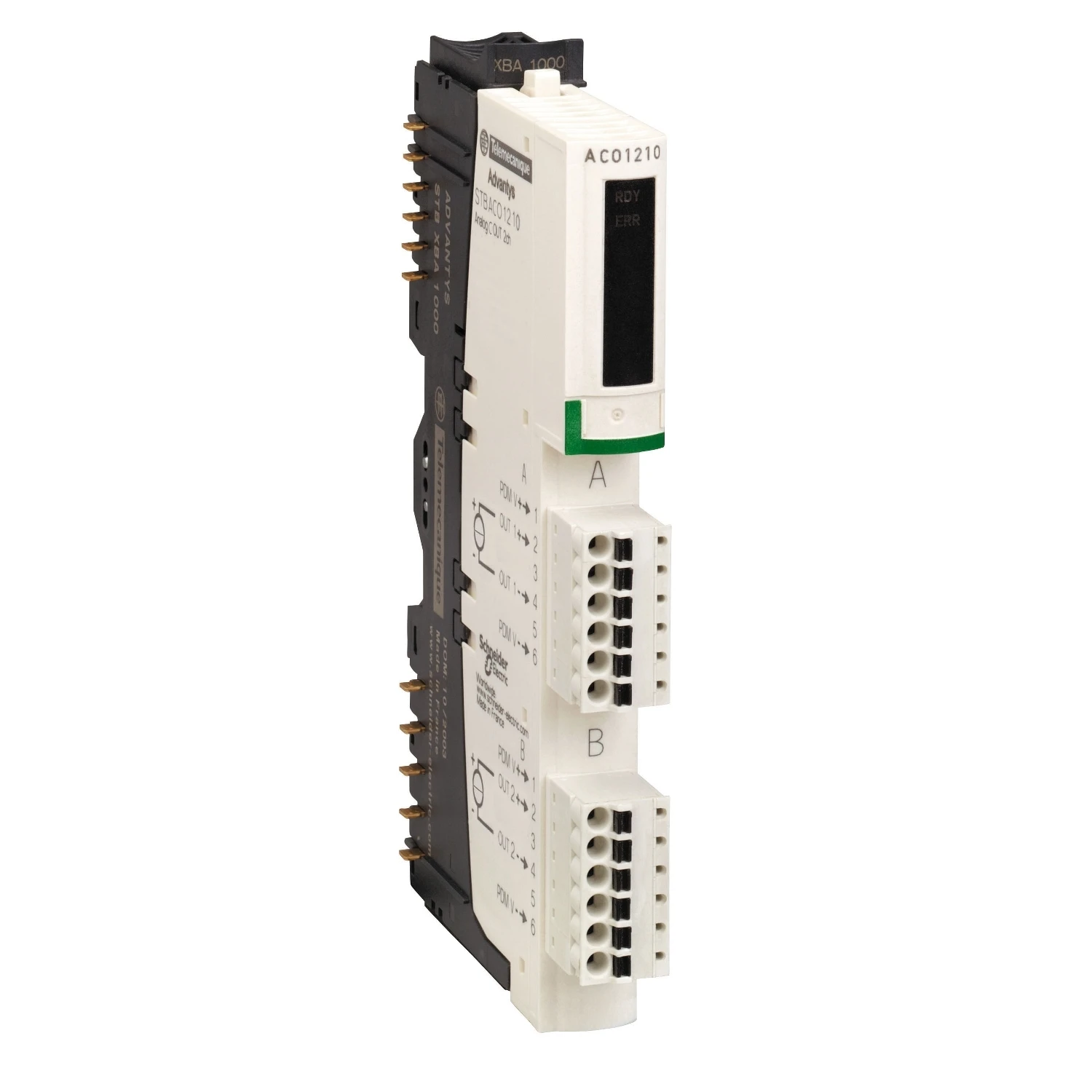

Schneider Electric Standard analog output kit STB, 0..20mA, 2 O, 12 bits
Schneider Electric Standard analog output kit STB, 0..20mA, 2 O, 12 bits
Schneider Electric Standard analog output kit STB, 0..20mA, 2 O, 12 bits - Image 2

Schneider Electric Standard analog output kit STB, 0..20mA, 2 O, 12 bits

£252.29 Incl. VAT

This output kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This standard analog output kit is an accessory kit for programmable logic controllers (PLC) and programmable automation controllers (PAC). It has 2 analog output (current 0mA to 20mA) with 12bit plus sign resolution. This product is compatible with most major Fieldbus networks. It is an analog input kit with a rated supply voltage of 24V DC and a current consumption of 40mA at 5V DC for logic bus. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.117kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is compatible with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base, STBACO1210 module and STBXTS1100, 6-terminal screw type connector. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables. · · · 12 Bit analog output resolution · · Short-circuit protection · · CE approved · · Wide range of operating temperature from 0°C to 60°C

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: STBACO1210K Category: Brand: Product Code: 2500250608

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – analogue I/O module Width 128.3 mm Height 18.4 mm Number of HW-interfaces RS-232 0 Number of HW-interfaces RS-422 0 Number of analogue outputs 2 Number of HW-interfaces industrial Ethernet 0 Number of analogue inputs 0 Depth 70 mm Number of HW-interfaces RS-485 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces other 0 Number of HW-interfaces parallel 0 Number of HW-interfaces Wireless 0 Number of HW-interfaces PROFINET 0 Resolution of the analogue outputs 12 Bit Number of HW-interfaces USB 0 Resolution of the analogue inputs 12 Bit Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Supply voltage DC 24 – 24 V Suitable for safety functions No Supporting protocol for TCP/IP No Input, resistance thermometer No Supporting protocol for LON No Input, resistor No Input, current No Input, voltage No Supporting protocol for PROFIBUS No Supporting protocol for INTERBUS No Supporting protocol for CAN No Supporting protocol for KNX No Supporting protocol for MODBUS No Supporting protocol for SUCONET No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for ASI No Supporting protocol for PROFINET IO No Supporting protocol for PROFINET CBA No Output signal configurable No Output, voltage No Input signal, configurable No Input, thermocouple No Supporting protocol for PROFIsafe No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for EtherNet/IP No Supporting protocol for Foundation Fieldbus No Supporting protocol for SERCOS No Analogue inputs configurable No IO link master No Supporting protocol for SafetyBUS p No Radio standard UMTS No Radio standard GSM No Radio standard GPRS No Radio standard WLAN 802.11 No Radio standard Bluetooth No Supporting protocol for other bus systems No Appendant operation agent (Ex ib) No Rail mounting possible Yes Output, current Yes Fieldbus connection over separate bus coupler possible Yes Rack-assembly possible Yes Appendant operation agent (Ex ia) No Front built-in possible No Analogue outputs configurable Yes System accessory Yes Wall mounting/direct mounting No · Technical Data Sheet – Click to Download
