Schneider Electric Star-Delta Timing Relay, 0,05s…300s, 24V DC / 24…240V AC, 1C/O
Schneider Electric Star-Delta Timing Relay, 0,05s…300s, 24V DC / 24…240V AC, 1C/O

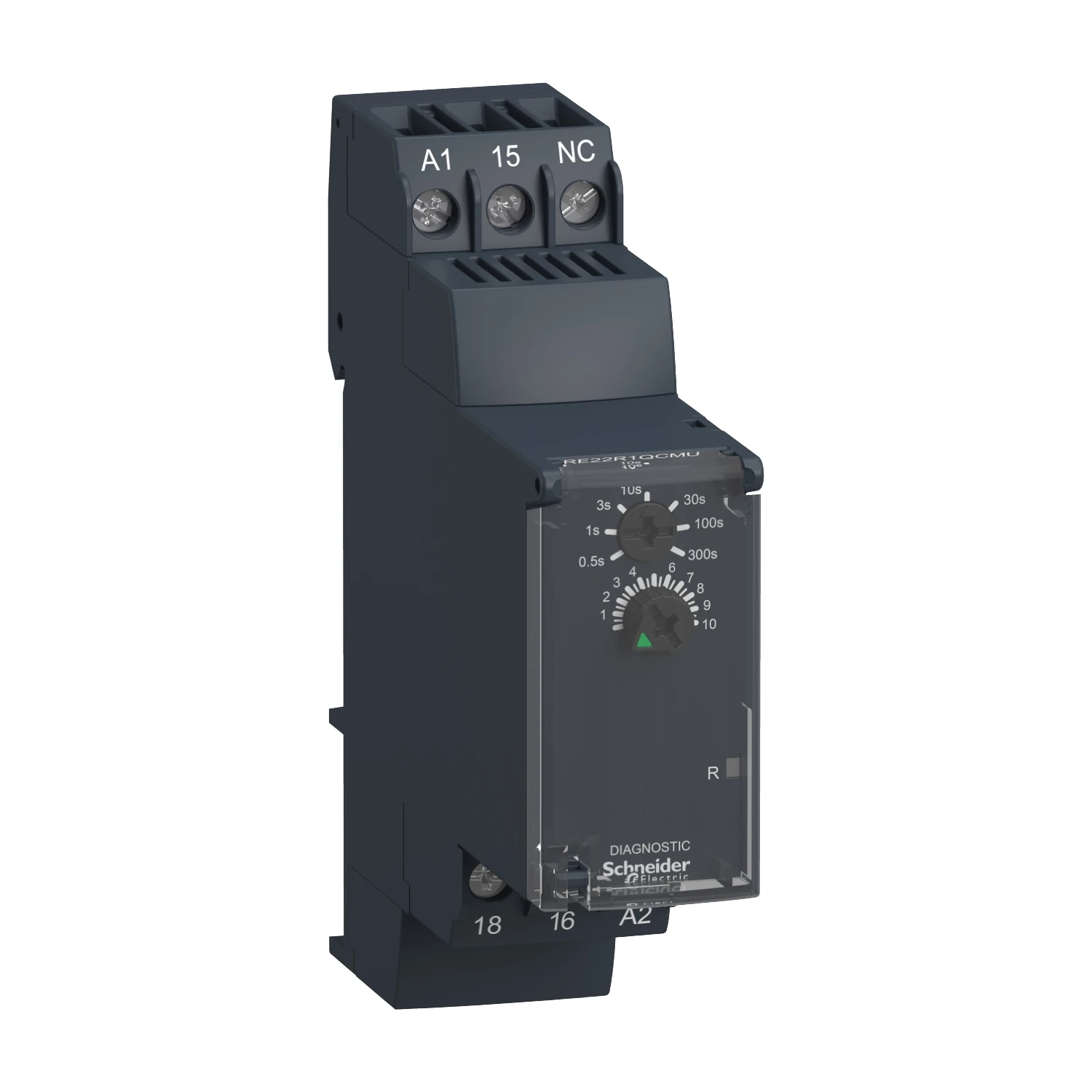

Schneider Electric Star-Delta Timing Relay, 0,05s…300s, 24V DC / 24…240V AC, 1C/O - Image 2
Schneider Electric Star-Delta Timing Relay, 0,05s…300s, 24V DC / 24…240V AC, 1C/O - Image 3
Schneider Electric Star-Delta Timing Relay, 0,05s…300s, 24V DC / 24…240V AC, 1C/O - Image 4

Schneider Electric Star-Delta Timing Relay, 0,05s…300s, 24V DC / 24…240V AC, 1C/O

£54.85 Incl. VAT

Star-Delta Timing Relay, 0,05s…300s, 24V DC / 24…240V AC, 1C/O. range of product: Zelio Time – product or component type: modular timing relay – discrete output type: relay – device short name: RE22 – nominal output current: 8 A. · · · This Zelio RE22 modular single function timer can be set between 1 seconds and 300 hours. · · This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. · · It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. · · Single function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RE22R1QCMU Categories: , , Brand: Product Code: 2500892970

Description

Technical Specifications  Technical Specifications Timer relay Nominal current 8 A Width 22.5 mm Height 90 mm Number of outputs, undelayed, normally closed contact 0 Number of outputs, undelayed, normally open contact 0 Number of outputs, undelayed, change-over contact 0 Number of outputs, delayed, normally open contact 1 Number of outputs, delayed, normally closed contact 1 Depth 73 mm Number of outputs, delayed, change-over contact 1 Time range 0.05 – 1080000 s Rated control supply voltage at DC 24 – 24 V Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Function delay-on energization No Function delay on de-energization No Function floating contact on energization No Remote operation possible No Function floating contact on de-energization No Function pulse shaping No Function flashing, starting with pause, fixed time No Function flashing, starting with pulse, fixed time No Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No Suitable for DIN rail (top hat rail) mounting Yes With semiconductor output No Function star-delta Yes Pluggable on auxiliary contact block No Outputs, reversible delayed/undelayed No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205367
