Schneider Electric Surge Arrester 65kA
£699.86 Incl. VAT

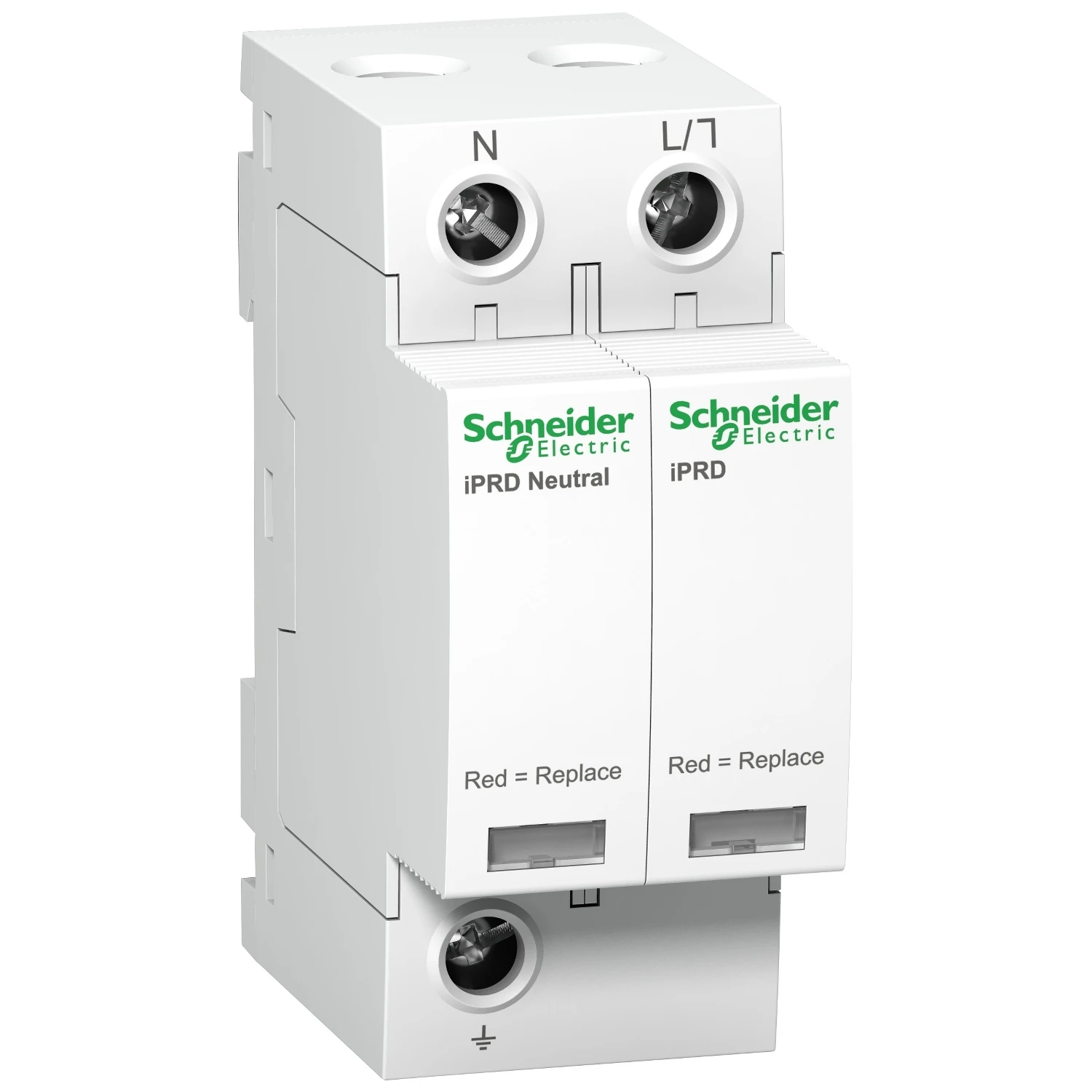

This Acti9 iPRD65r surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for very high risk level and incoming panel board. It offers remote reporting of the -cartridge must be changed- message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level is 1.5kV in common mode (N/PE) and in differential mode (L/N). The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 238g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards. · · · This Acti9 iPRD65r surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. · · This Type 2 device is recommended for very high risk level and incoming panel board. · · The surge arresters with r indication have remote transfer of the information Cartridge to be replaced. · · It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. · · The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti 9 iPRD65r is compatible with TT and TN-S earthing system.
Out of Stock
Description
Technical Specifications Technical Specifications Surge protection device for power supply systems Max. voltage (Uc) 350.00 V Number of conductors (without earthing) 1.00 Nominal voltage DC – V Voltage protection level 1.50 kV Nominal discharge surge current 8/20 µs (In) 20.00 kA Max. conductor cross section solid (solid, stranded) 35.00 mm² Nominal voltage AC 350.00 V Max. PV-voltage – V Voltage protection level N-PE 1.50 kV Max. conductor cross section flexible (fine-strand) 35.00 mm² Max. discharge surge current (8/20) 65.00 kA Short-circuit breaking capacity (Isccr) 50.00 kA Max. continuous voltage DC – V Voltage protection level L-N 1.50 kV System configuration DC No System configuration TN-C No System configuration TN-S Yes System configuration IT No System configuration TN No System configuration TT Yes System configuration other No System configuration TN-C-S No With remote signalling contact Yes Integrated backup fuse No Type / Test class 2 Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224955
