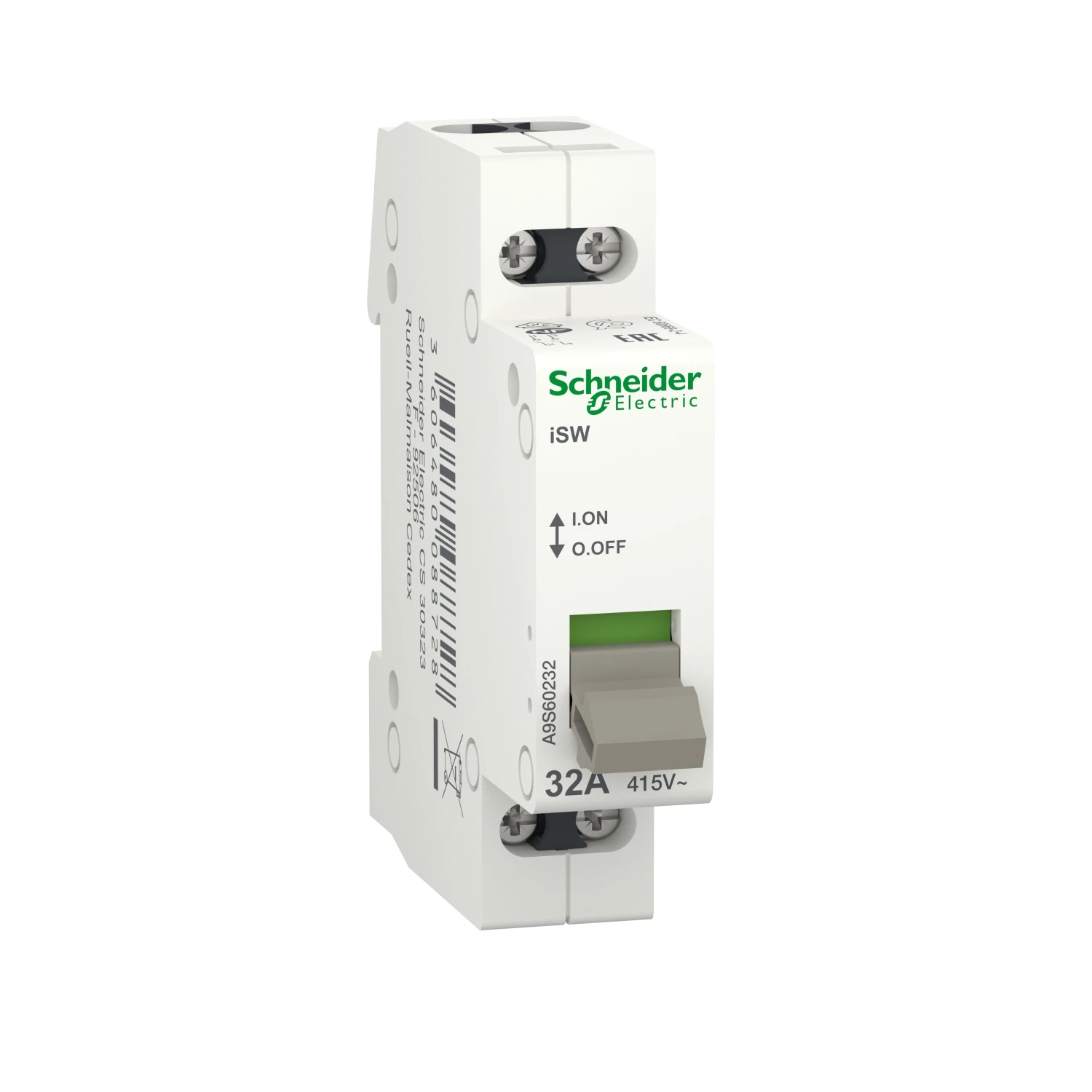

Schneider Electric switch Acti9 iSW – 2 poles – 32 A – 415V
£18.28 Incl. VAT
This Acti 9 iSW is a modular and reliable switch disconnector. it is a 2P, rated current is 32A, and operating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4. · · · Easy to select thanks to a wide range compliant with DIN rail standard · · Benefit from enhanced peace of mind with a complete modular system · · Consistency with the entire Acti9 range · · Easily open and close circuits under load. · · Easily control and monitor the electrical circuits in all industrial and commercial buildings.
Out of Stock
Description
Technical Specifications Technical Specifications Main switch for distribution board Rated voltage 415.00 V Rated current 32.00 A Recess depth 75.50 mm Number of poles 2.00 Max. lamp power – W Number of contacts as change-over contact 0.00 Number of contacts as normally closed contact 0.00 Min. rated voltage 415.00 V Short-circuit breaking capacity (Icw) – kA Number of contacts as normally open contact 2.00 Width in number of modular spacings 1.00 Rated switching capacity – kA With indicator lamp No · Technical Data Sheet – Click to Download
