Schneider Electric Switch Disconnector Enclosed Emergency 63A 30kW IP65
Schneider Electric Switch Disconnector Enclosed Emergency 63A 30kW IP65
Schneider Electric Switch Disconnector Enclosed Emergency 63A 30kW IP65 - Image 2

Schneider Electric Switch Disconnector Enclosed Emergency 63A 30kW IP65

£162.02 Incl. VAT

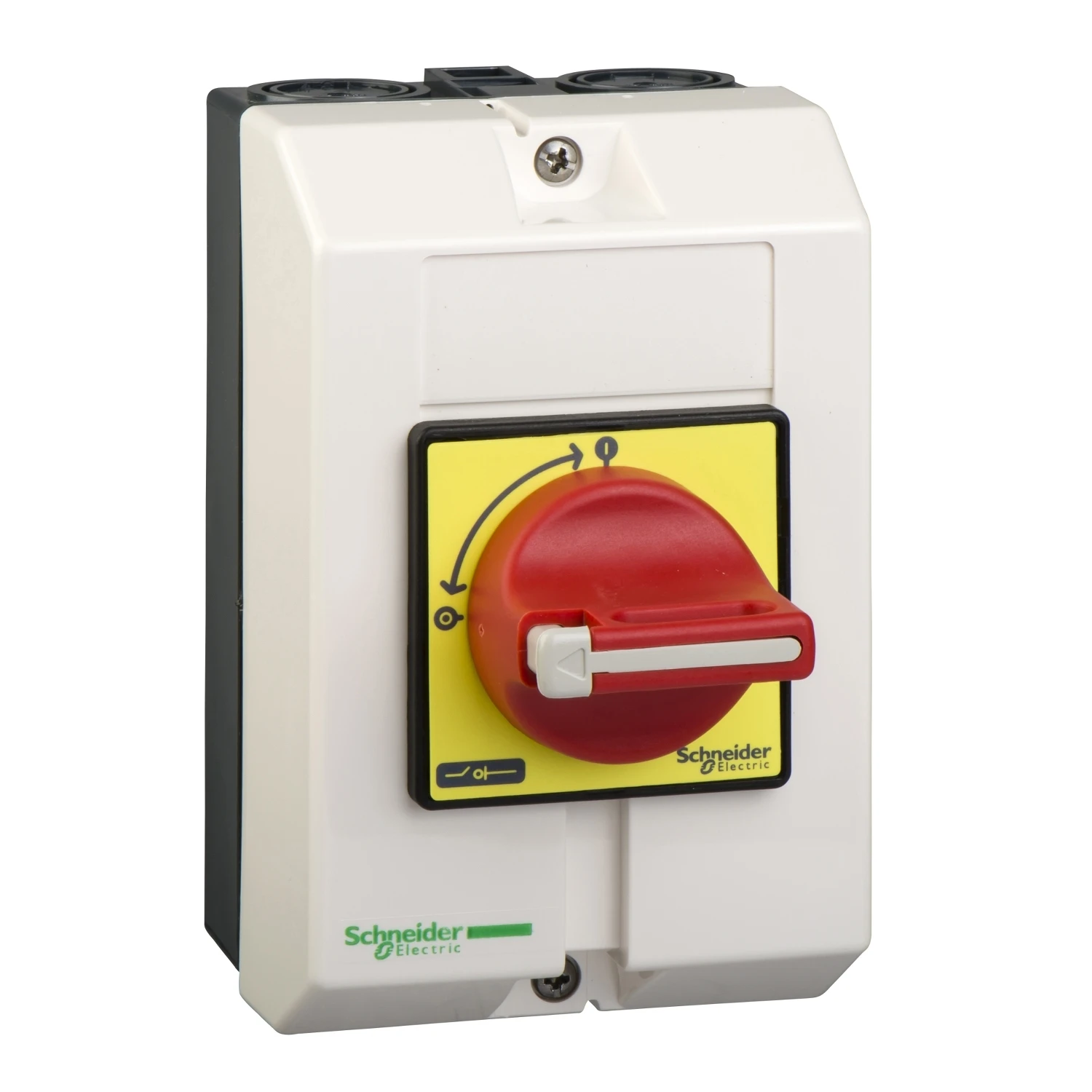

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 63A 690V, for main and emergency stop switching in motor applications AC-23 up to 30kW@400V. Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V4 with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · · TeSys enclosed starter with switch disconnector, 3 poles, Ithe 63A 690V, for main and emergency stop switching in motor applications AC-23 up to 30kW@400V. · · Enclosure providing IP65 protection, fitted with a red rotary handle and yellow front plate, padlockable (padlocks not included). · · It includes a 3-pole Vario switch body V4 with 3 possible add-on module attachments. · · Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. · · It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh). · · Depth: 152mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VCF4GE Category: Brand: Product Code: 2500053769

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Conditioned rated short-circuit current Iq 10.00 kA Rated operation power at AC-3, 400 V 22.00 kW Number of poles 3.00 Number of auxiliary contacts as change-over contact 0.00 Rated permanent current Iu 63.00 A Number of switches 1.00 Rated short-time withstand current lcw 0.96 kA Switching power at 400 V 37.00 kW Rated permanent current at AC-21, 400 V 63.00 A Rated operation power at AC-23, 400 V 30.00 kW Max. rated operation voltage Ue AC 690.00 V Rated permanent current at AC-23, 400 V 57.00 A Rated operating voltage 0.00 – 690.00 V Version as maintenance-/service switch No Version as safety switch No Version as main switch Yes Version as emergency stop installation Yes Suitable for front mounting centre No Motor drive integrated No Suitable for distribution board installation No Suitable for intermediate mounting No Interlockable Yes Suitable for front mounting 4-hole Yes Version as reversing switch No Motor drive optional No Voltage release optional No · Technical Data Sheet – Click to Download
