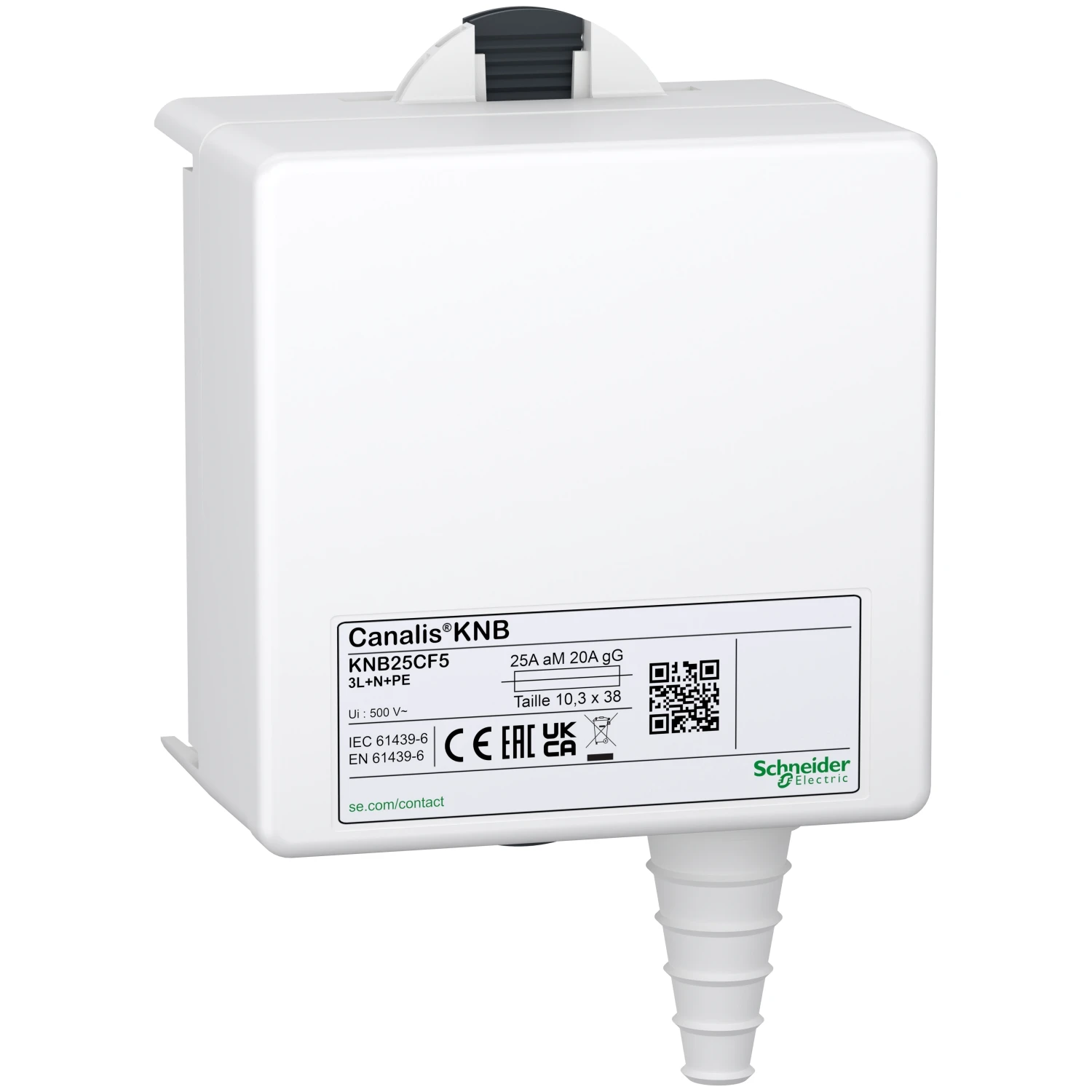

Schneider Electric Tap-Off Triple Pole+Neutral+Pe 25A
Schneider Electric Tap-Off Triple Pole+Neutral+Pe 25A
Schneider Electric Tap-Off Triple Pole+Neutral+Pe 25A - Image 2

Schneider Electric Tap-Off Triple Pole+Neutral+Pe 25A

£69.55 Incl. VAT

Canalis tap off unit for KN. It is compatibility with Canalis KN busbar trunking with plug-in outlets. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. The rated operational current is 25A at 35 °C. It provides fuse isolator protection conforming to NF standard. Mounting by plug-in with fixed polarity. The tap-off unit polarity is 3L+N+PE and 3L + PE, disconnection by drawing out. Door/cover could be open front side. It provides white RAL 9001 surface treatment. Cable clamp could be provided, but fuse to be ordered separately. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH). · · · Canalis tap off unit for KN. · · It is compatibility with Canalis KN busbar trunking with plug-in outlets. · · The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. · · The rated operational current is 25A at 35 ℃. · · It provides fuse isolator protection conforming to NF standard.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: KNB25CF5 Category: Brand: Product Code: 2500236164

Description

Technical Specifications  Technical Specifications Tap off unit for busbar trunk Width 48.80 mm RAL number 9001.00 Height 161.00 mm Number of CEE socket outlets 0.00 Length 103.00 mm Rated current at AC 50 Hz 25.00 A Number of poles 3.00 Number of conductors (without earthing) 4.00 Number of NEMA socket outlets 0.00 Number of other socket outlets 0.00 With locking No Rated voltage at AC 50 Hz 230.00 – 500.00 V Phase selection No · Technical Data Sheet – Click to Download
