Schneider Electric Tap-Off Triple Pole+Neutral+Pe For Nf 10 x 38 Fuse IP55 32A
£126.59 Incl. VAT

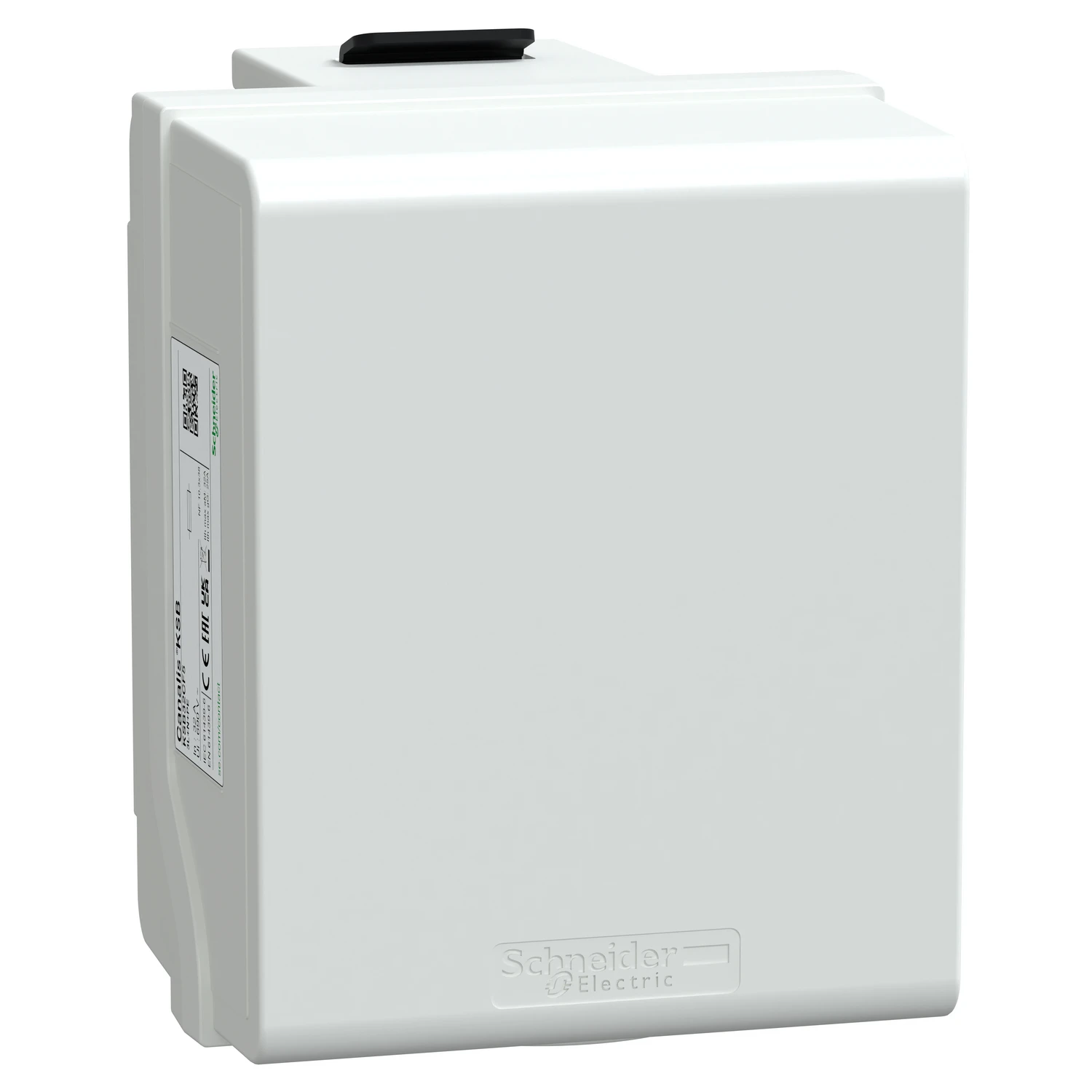

Canalis tap-off unit for KS. It’s applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 32A at 35 ?. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L+N+PE. It provided protection for size 10 x 38 fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by drawing out with front door/cover opening. Canalis KS busbar trunking compatibility with plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH). · · · Canalis tap-off unit for KS. · · It’s applied to medium power distribution and TT, IT and TN-S earthing system. · · The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. · · The rated operational current is 32A at 35 ℃.
Out of Stock
Description
Technical Specifications Technical Specifications Tap off unit for busbar trunk Width 153.00 mm RAL number 9001.00 Height 175.00 mm Rated current at AC 50 Hz 32.00 A Number of conductors (without earthing) 4.00 Number of CEE socket outlets 0.00 Number of poles 3.00 Number of other socket outlets 0.00 Length 135.00 mm Rated voltage at AC 50 Hz 230.00 – 690.00 V Number of NEMA socket outlets 0.00 With locking No Phase selection No · Technical Data Sheet – Click to Download
