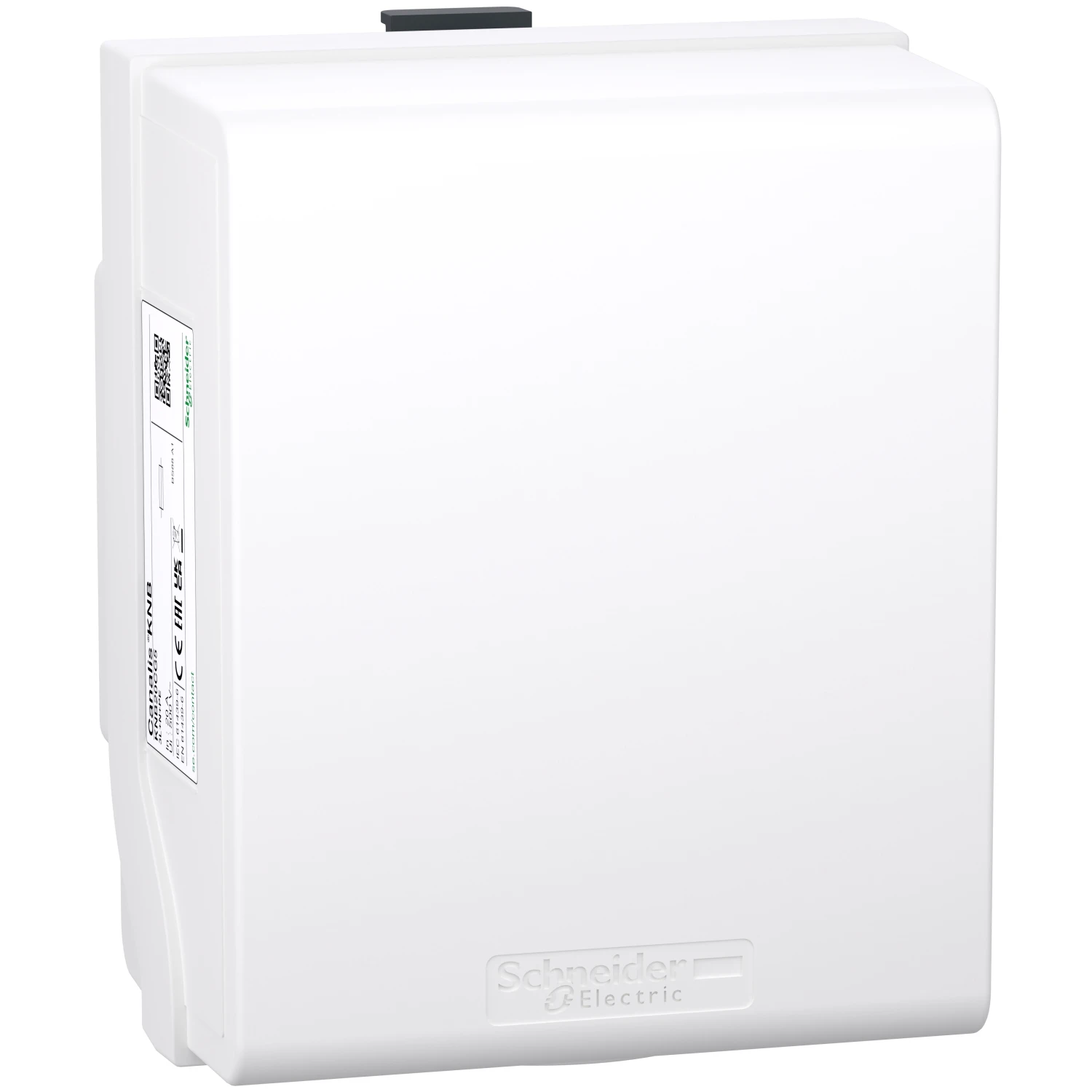

Schneider Electric Tap-Off Unit 32A Triple Pole+Neutral+PE & Isolator for BS Fuse
£139.49 Incl. VAT
TAPOFF UNIT 32 A WITH ISOLATOR FOR BS FUSES. · · · Busbar trunking system for power distribution from 40A up to 160A · · Flexible, scalable, modular and upgradeable system · · Easy selection process · · Quick, light and easy mounting solution · · High protection degree IP55 for all types of buildings · · Fool proof system avoids unit being installed or removed under load · · All components are halogen free, no toxic emission of any fumes in case of fire · · Sustainable by being reusable, recyclable and reduces line losses by 20%
Out of Stock
Description
Technical Specifications Technical Specifications Tap off unit for busbar trunk Width 101 mm Number of CEE socket outlets 0 Rated current at AC 50 Hz 32 A Number of other socket outlets 0 Number of poles 3 Number of NEMA socket outlets 0 RAL number 9001 Number of conductors (without earthing) 3 Length 344 mm Height 165 mm With locking No Rated voltage at AC 50 Hz 230 – 500 V Phase selection No · Technical Data Sheet – Click to Download
