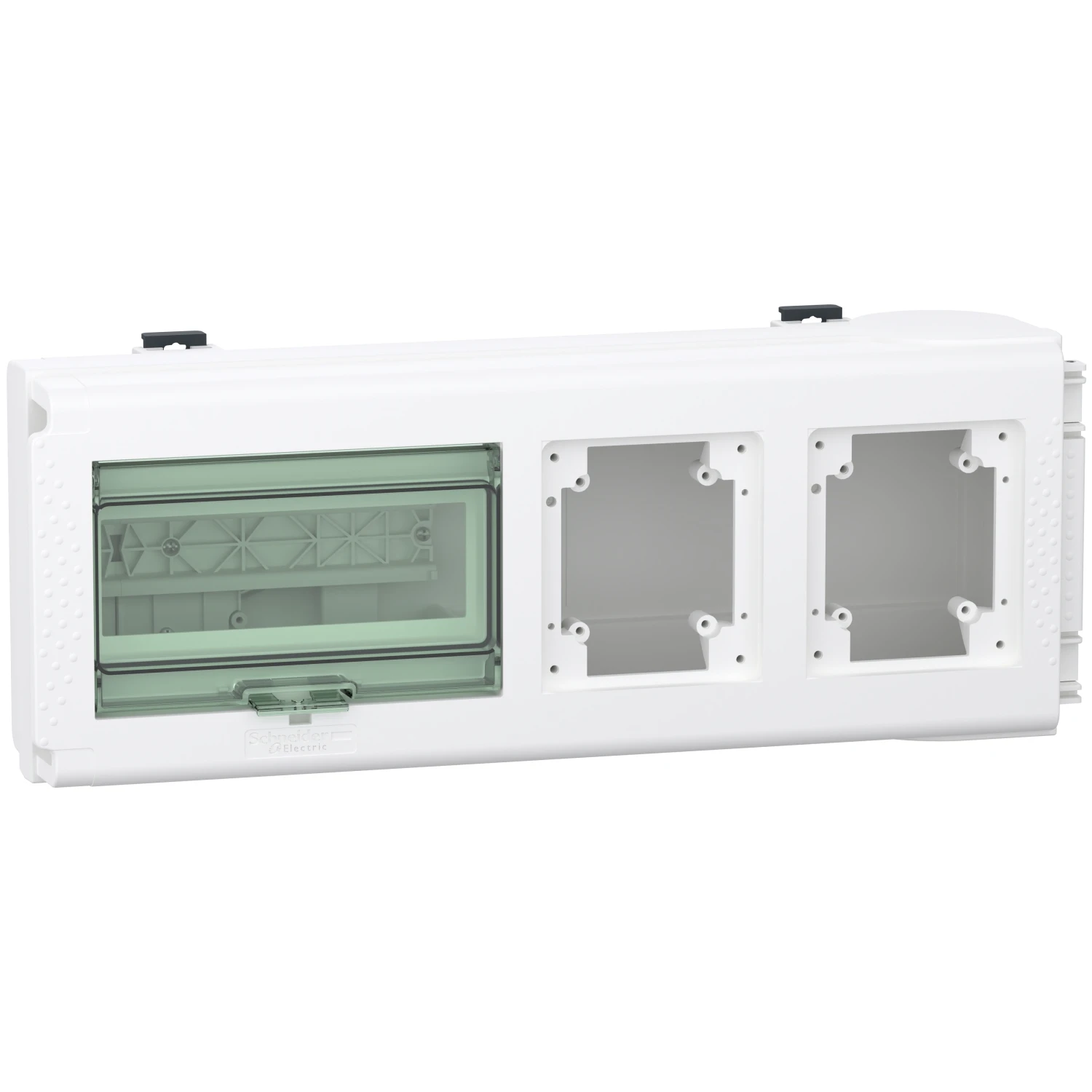

Schneider Electric Tap-Off Unit Empty For 2 Sockets 32A / 8 Modules

Canalis tap off unit for KN. It is compatibility with modular device and applied to power socket distribution and low power distribution. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. The rated operational current is 32A at 35 °C. It provides 2 free choice tap-off unit socket. The tap-off unit with phase selection polarity is 3L+N+PE, disconnection by drawing out. It is suitable for TT, IT, TN-C, and TN-S earthing system. Blanking plate could be provided. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with both EN/IEC 60439-2 and EN/IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH). · · · Canalis tap off unit for KN. · · It is compatibility with modular device and applied to power socket distribution and low power distribution. · · The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. · · The rated operational current is 32A at 35 ℃. · · It provides 2 free choice tap-off unit socket. · · The tap-off unit with phase selection polarity is 3L+N+PE, disconnection by drawing out. · · It is suitable for TT, IT, TN-C, and TN-S earthing system.
