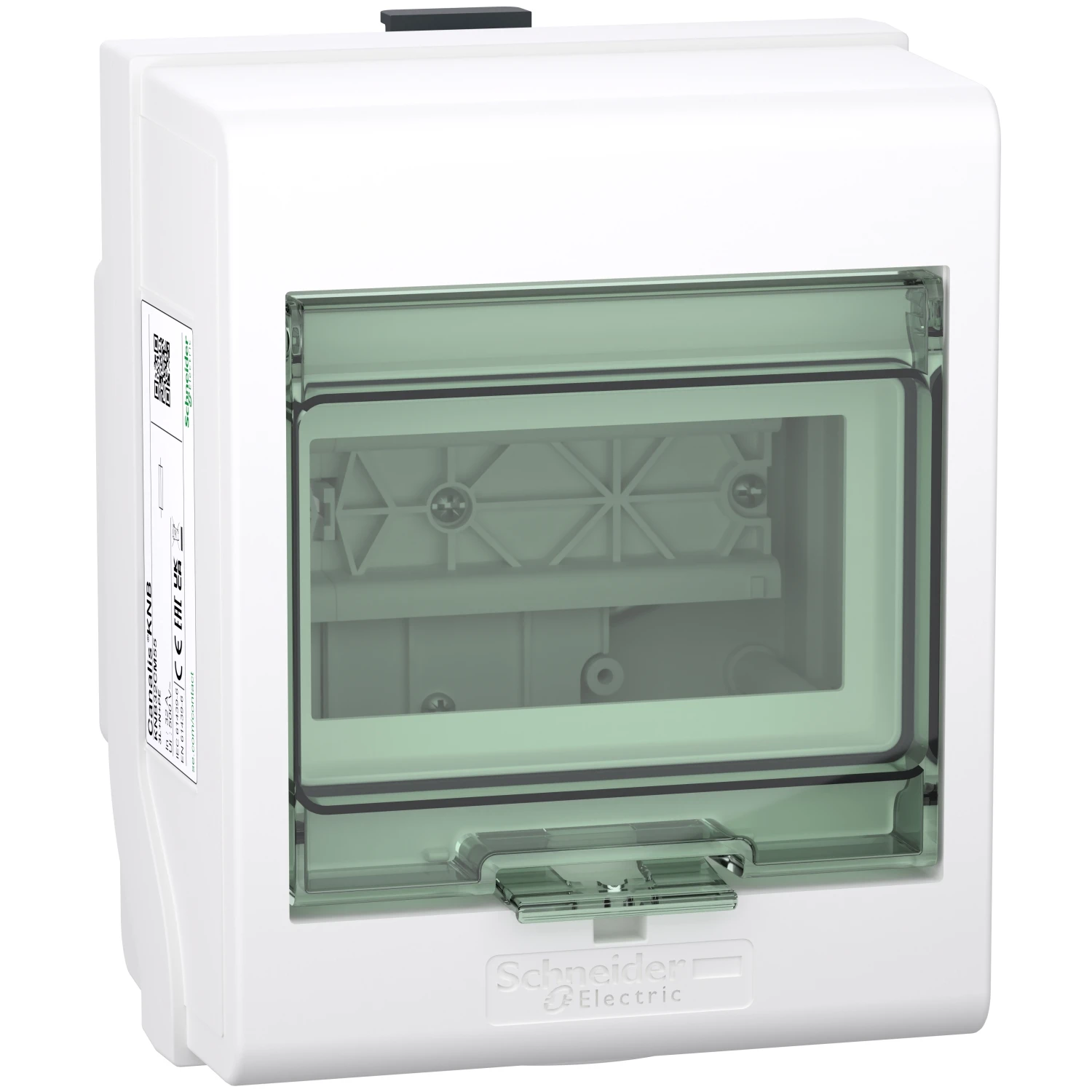

Schneider Electric Tap-Off Unit for Modular Device 4 Pole 32A
£76.18 Incl. VAT
Canalis tap off unit for KN. It is compatibility with Canalis KN busbar trunking with plug-in outlets. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. The rated operational current is 32A. It provides miniature circuit breaker (MCB) protection and 5 modules of 18mm. Mounting by plug-in with fixed polarity. The tap-off unit polarity is 3L+N+PE, disconnection by drawing out. Door/cover could be open front side. It is suitable for TT, IT and TN-S earthing system. It provides white RAL 9001 surface treatment. Blanking plate could be provided, but circuit breaker to be ordered separately. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH). · · · Canalis tap off unit for KN. · · It is compatibility with Canalis KN busbar trunking with plug-in outlets. · · The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. · · The rated operational current is 32A. · · It provides miniature circuit breaker (MCB) protection and 5 modules of 18mm. · · Mounting by plug-in with fixed polarity. · · The tap-off unit polarity is 3L+N+PE, disconnection by drawing out. · · Door/cover could be open front side. · · It is suitable for TT, IT and TN-S earthing system. · · It provides white RAL 9001 surface treatment.
Out of Stock
Description
Technical Specifications Technical Specifications Tap off unit for busbar trunk Width 95 mm Number of CEE socket outlets 0 Rated current at AC 50 Hz 32 A Number of other socket outlets 0 Length 135 mm Number of poles 3 Number of NEMA socket outlets 0 RAL number 9001 Number of conductors (without earthing) 4 Rated voltage at AC 50 Hz 230 – 500 V Height 165 mm With locking No Phase selection No · Technical Data Sheet – Click to Download
