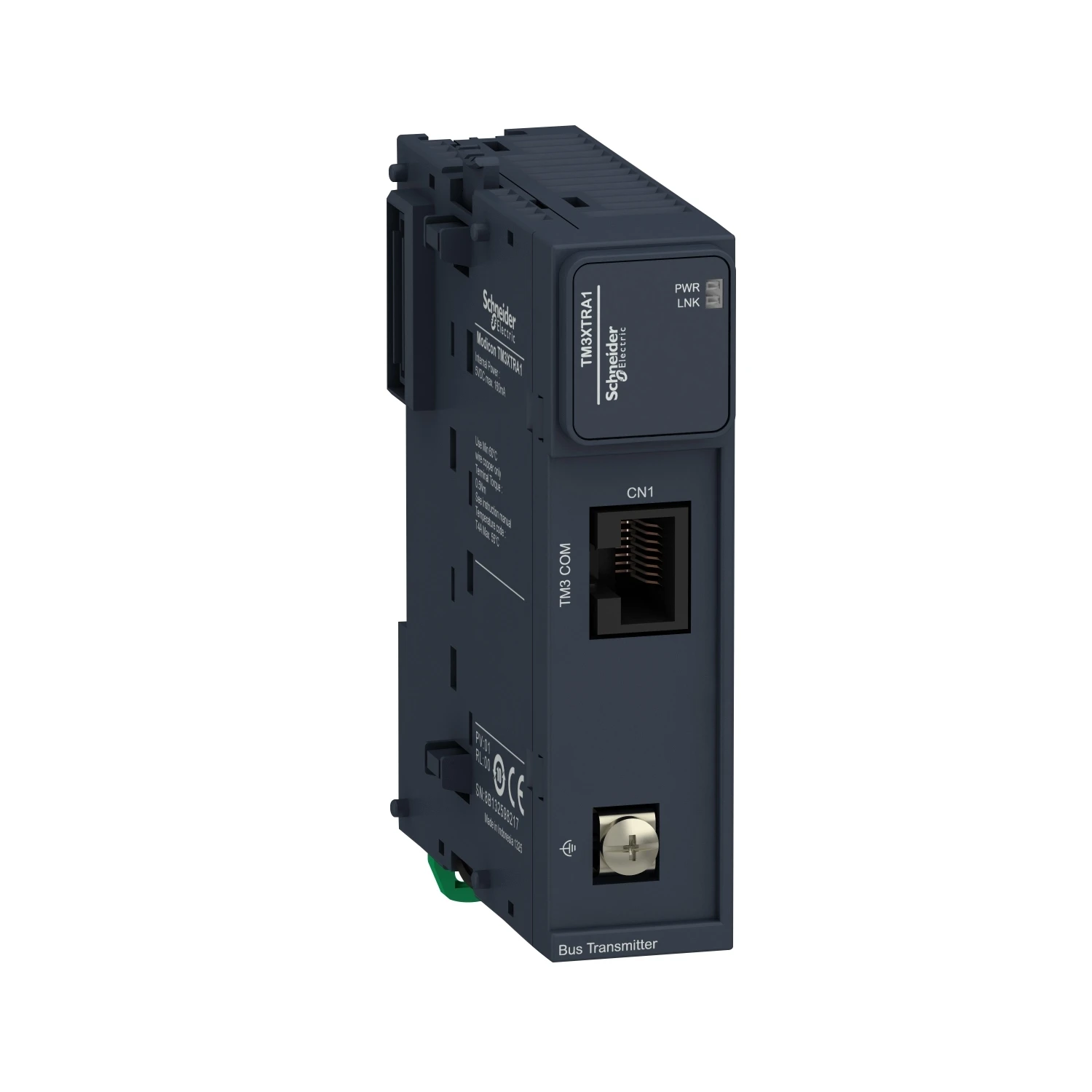

Schneider Electric Tele Module Tm3-Bus Transmitter
£116.86 Incl. VAT
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The remote transmitter module is physically connected by a bus expansion cable. It is remote transmitter module with a current consumption of 100mA, 30mA at 5V DC via bus connector and a maximum power dissipation of 0.6W. It is furnished with RJ45 connector for connecting the bus receiver, screw connector terminal for electrical connection. It is an IP20 rated product. Its dimensions are 23.65mm (Width) x 73.3mm (Depth) x 90mm (Height). It weighs 0.065kg. This product is certified by CE, Merchant Navy, GOST, CSA HazLoc, C-Tick. It meets Class I Division 2 Groups A/B/C/D CSA C22.2 No 213, Class I Division 2 Groups A/B/C UL 1604, CSA C22.2 No 142, IEC 61131-2 and UL 508 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15 rail conforming to IEC 60715, top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers. · · · This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. · · The remote transmitter module is physically connected by a bus expansion cable. · · It is remote transmitter module with a current consumption of 100mA, 30mA at 5V DC via bus connector and a maximum power dissipation of 0.6W.
Out of Stock
Description
Technical Specifications Technical Specifications PLC communication module Width 23.65 mm Height 90.00 mm Number of HW-interfaces RS-232 0.00 Depth 73.30 mm Number of HW-interfaces RS-422 0.00 Number of HW-interfaces industrial Ethernet 0.00 Number of HW-interfaces PROFINET 0.00 Number of HW-interfaces RS-485 0.00 Number of HW-interfaces parallel 1.00 Number of HW-interfaces Wireless 0.00 Number of HW-interfaces serial TTY 0.00 Number of HW-interfaces other 0.00 Supporting protocol for LON No Number of HW-interfaces USB 0.00 Suitable for safety functions No Supporting protocol for TCP/IP No With optical interface No Redundancy No Supporting protocol for other bus systems No Appendant operation agent (Ex ib) No Appendant operation agent (Ex ia) No Supporting protocol for ASI No Supporting protocol for Data-Highway No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No Supporting protocol for MODBUS No Supporting protocol for KNX No Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for PROFIBUS No IO link master No Radio standard GSM No Radio standard UMTS No Supporting protocol for PROFINET IO No Supporting protocol for PROFINET CBA No Supporting protocol for SERCOS No Supporting protocol for EtherNet/IP No Supporting protocol for Foundation Fieldbus No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for DeviceNet Safety No Supporting protocol for INTERBUS-Safety No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Radio standard Bluetooth No With potential separation No Radio standard WLAN 802.11 No Radio standard GPRS No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192644 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2199837
