Schneider Electric Temperature transmitter, 0..600 °C/32..112 °F, for thermocouples K

Description

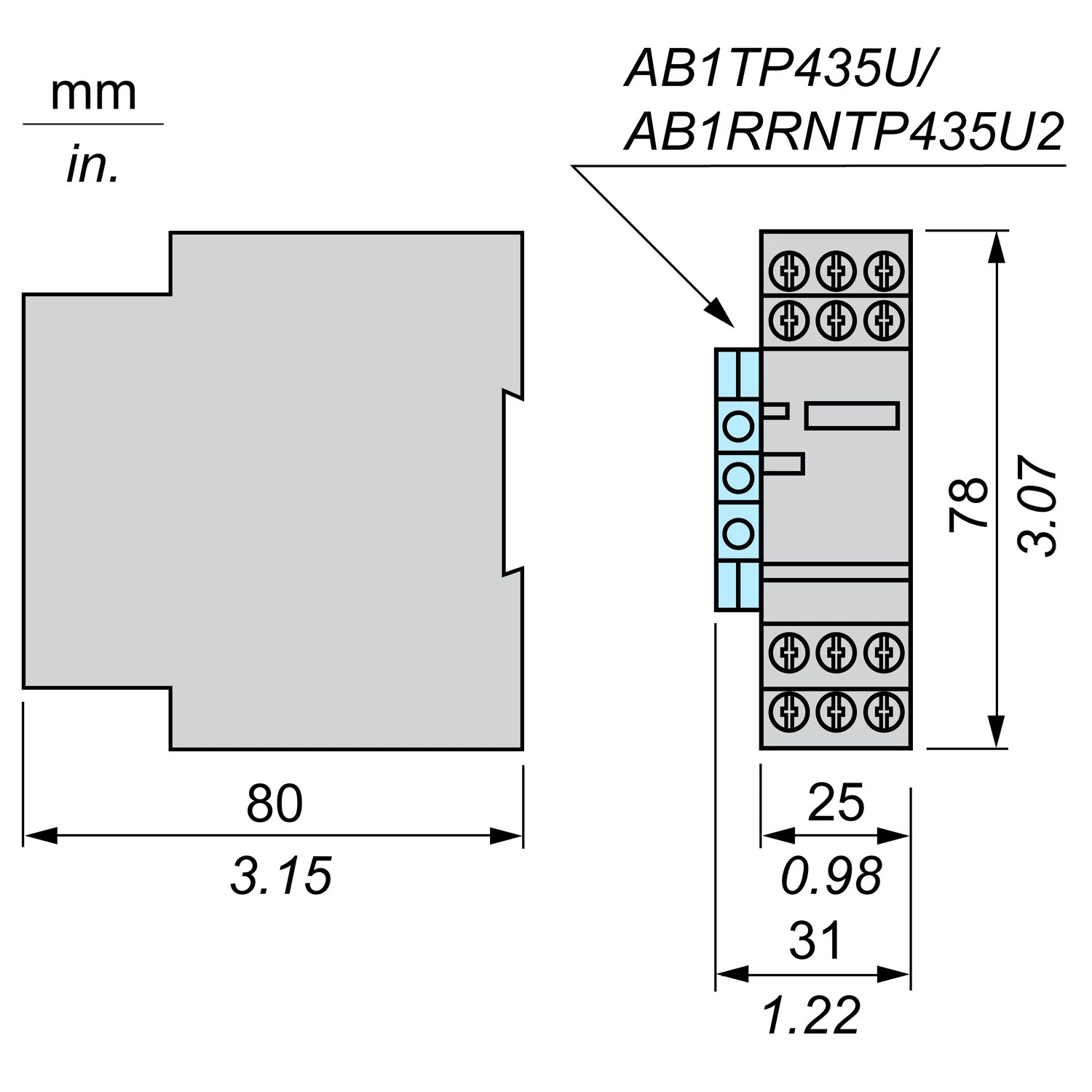

Technical Specifications  Technical Specifications Isolation amplifier SIL according to IEC 61508 None Type of power supply Active Type of electric connection Spring clamp connection Mounting method Snap mounting support rail Degree of protection (IP rating) IP20 Height 78 mm Width 25 mm Power consumption – W Number of channels 1 Switching current – A Depth 80 mm Switching frequency 100 Hz Switching voltage 10 V Switching power – VA Number of output ranges -1 V … +1 V 0 Number of output ranges 0 mV … 60 mV 0 Number of output ranges 0 mV … 100 mV 0 Number of output ranges 0 mV … 200 mV 0 Number of output ranges 0 mV … 300 mV 0 Number of output ranges 0 mV … 500 mV 0 Number of output ranges 0 V … 1 V 0 Number of output ranges 0 V … 2 V 0 Number of output ranges 0 V … 2.5 V 0 Number of output ranges 0 V … 5 V 0 Number of output ranges 0 V … 20 V 0 Number of output ranges 0 V … 24 V 0 Number of output ranges 0 V … 30 V 0 Number of output ranges +5 V … -5 V 0 Number of output ranges +10 V … -10 V 0 Number of output ranges 0 mA … 5 mA 0 Number of output ranges 0 mA … 10 mA 0 Number of output ranges 0 V … 10 V 1 Number of output ranges 0 mA … 20 mA 1 Number of input ranges -1 V … +1 V 0 Number of input ranges -10 V … +10 V 0 Number of input ranges 0 mV … 60 mV 0 Number of input ranges 0 mV … 100 mV 0 Number of input ranges 0 mV … 200 mV 0 Number of input ranges 0 mV … 300 mV 0 Number of input ranges 0 mV … 500 mV 0 Number of input ranges 0 V … 1 V 0 Number of input ranges 0 V … 2 V 0 Number of input ranges 0 V … 2.5 V 0 Number of input ranges 0 V … 5 V 0 Number of input ranges 0 V … 10 V 0 Number of input ranges 0 V … 20 V 0 Number of input ranges 0 V … 24 V 0 Number of input ranges 0 V … 30 V 0 Number of input ranges 1 V … 5 V 0 Number of input ranges +5 V … -5 V 0 Number of input ranges +10 V … -10 V 0 Number of input ranges 10 V … 0 V 0 Number of input ranges 0 mA … 5 mA 0 Number of input ranges 0 mA … 10 mA 0 Number of input ranges 0 mA … 20 mA 0 Number of output ranges -60 mV … +60 mV 0 Number of output ranges -100 mV … +100 mV 0 Number of output ranges -300 mV … +300 mV 0 Number of output ranges -500 mV … +500 mV 0 Number of output ranges -2 V … +2 V 0 Number of output ranges -2.5 V … +2.5 V 0 Number of output ranges -5 V … +5 V 0 Number of input ranges -60 mV … +60 mV 0 Number of input ranges -10 mA … +10 mA 0 Number of input ranges -100 mV … +100 mV 0 Number of input ranges -300 mV … +300 mV 0 Number of input ranges -500 mV … +500 mV 0 Number of input ranges -2 V … +2 V 0 Number of input ranges -2.5 V … +2.5 V 0 Number of input ranges -5 V … +5 V 0 Number of input ranges -20 V … +20 V 0 Number of input ranges 2 V … 10 V 0 Number of input ranges 5 V … 0 V 0 Number of input ranges 5 V … 1 V 0 Number of input ranges 10 V … 2 V 0 Number of input ranges 4 mA … 20 mA 0 Number of input ranges -5 mA … +5 mA 0 Number of input ranges -20 mA … +20 mA 0 Number of input ranges 20 mA … 0 mA 0 Load influence – % Number of output ranges 5 V … 0 V 0 Number of output ranges 5 V … 1 V 0 Number of output ranges 10 V … 0 V 0 Number of output ranges 10 V … 2 V 0 Number of output ranges -5 mA … +5 mA 0 Number of output ranges -20 mA … +20 mA 0 Number of output ranges -10 mA … +10 mA 0 Number of output ranges 20 mA … 0 mA 0 Number of output ranges 20 mA … 4 mA 0 Temperature drift – %/K Number of output ranges -10 V … +10 V 0 Number of output ranges -20 V … +20 V 0 Number of output ranges 1 V … 5 V 0 Number of output ranges 2 V … 10 V 0 Number of input ranges 20 mA … 4 mA 0 Number of output ranges 4 mA … 20 mA 1 Operating temperature 0 – 60 °C Rated supply voltage at AC – V Rated operation frequency – Hz Rated supply voltage at DC 24 – 24 V Load 500 – 500 Ohm Inherently safe according to EN 60947-5-6 NAMUR No Malfunction message output No Galvanic separation between supply voltage and all other current circuits No Galvanic separation between output to output No Galvanic separation between inputs No Galvanic separation between input and output No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188192
