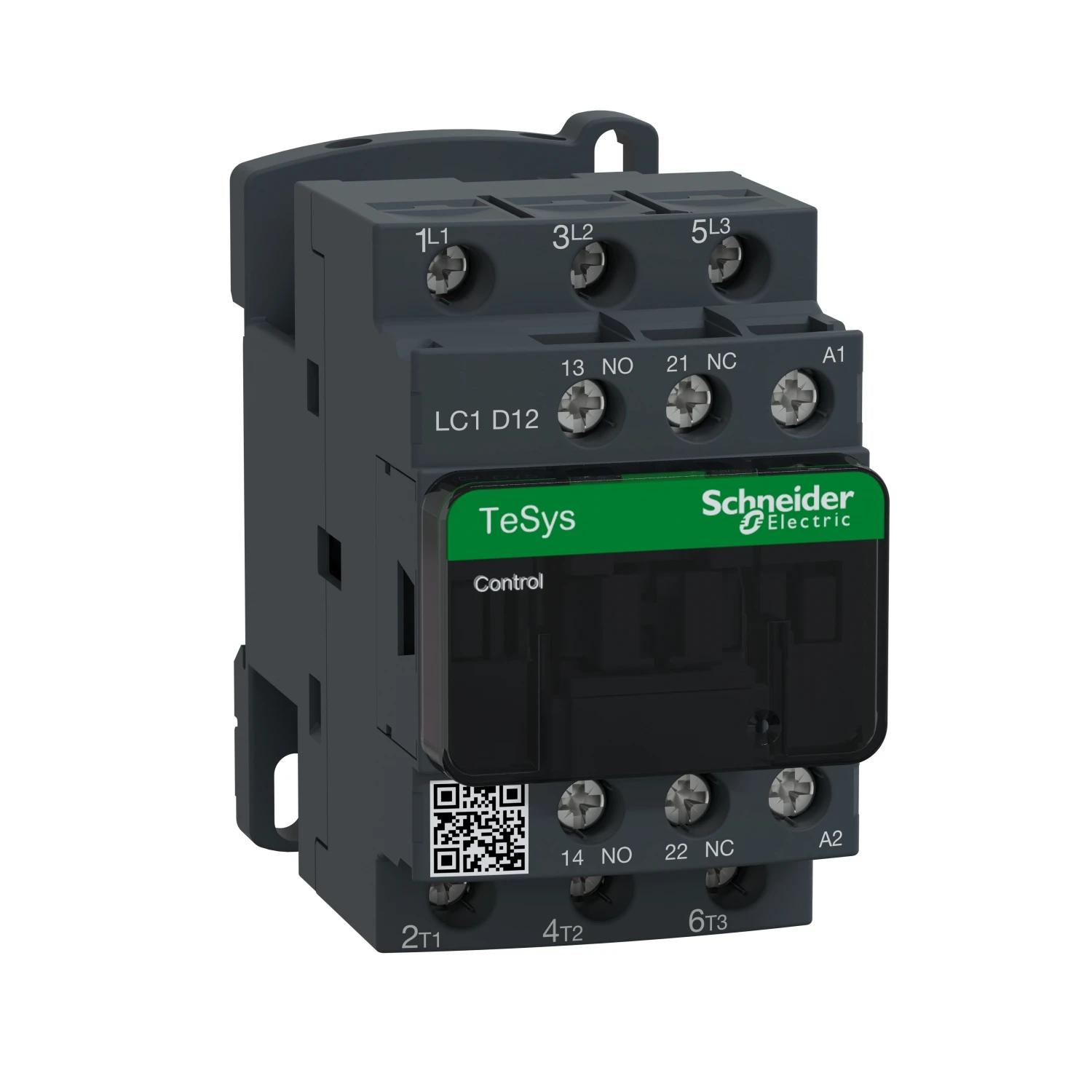

Schneider Electric TeSys D 12A Contactor 3NO 220V AC Coil with Protective Cover
Schneider Electric TeSys D 12A Contactor 3NO 220V AC Coil with Protective Cover
Schneider Electric TeSys D 12A Contactor 3NO 220V AC Coil with Protective Cover - Image 2

Schneider Electric TeSys D 12A Contactor 3NO 220V AC Coil with Protective Cover

£53.36 Incl. VAT

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). · · Screw clamp terminals: 1 to 4mm² · · It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Mechanical durability: 15 Mcycles · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.7Nm · · Ambient operating temperature: -5°C to 60°C · · IP20 Degree of protection (front face)

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D12M7 Categories: , Brand: Product Code: 2500090485

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0 Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 5.5 kW Number of auxiliary contacts as normally open contact 1 Rated operation current Ie at AC-1, 400 V 25 A Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-4, 400 V 7.5 A Rated operation power NEMA – kW Rated operation current Ie at AC-3, 400 V 12 A Rated operation power at AC-4, 400 V 3 kW Rated control supply voltage at DC – – – V Rated control supply voltage at AC 50 Hz 220 – 220 V Rated control supply voltage at AC 60 Hz 220 – 220 V Modular version No · Technical Data Sheet – Click to Download
